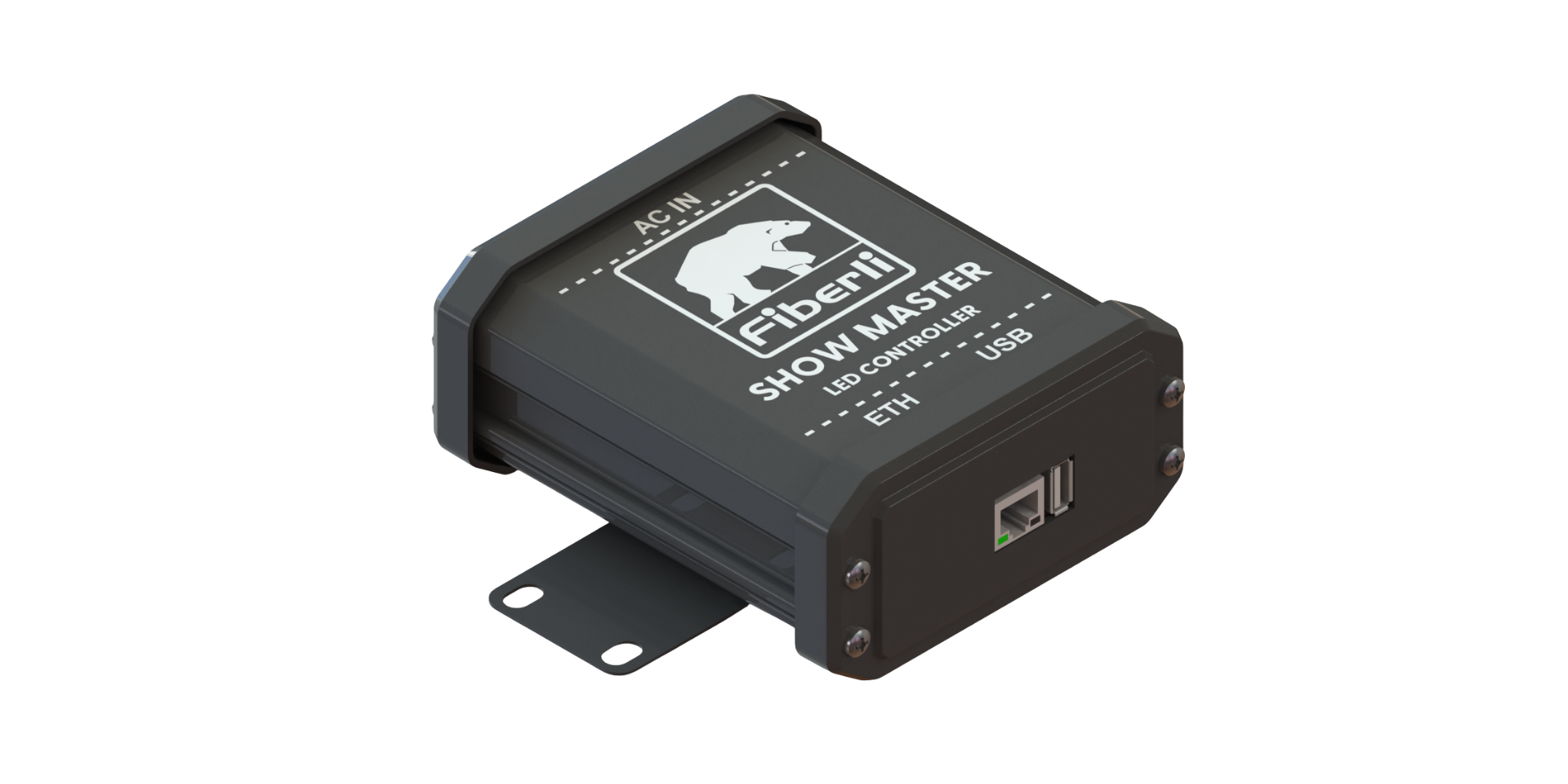

Show Master
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Code | Product Description | Mounting Type |
|---|---|---|
| 33601075 | LED CONT. FIBERLI SHOW MASTER DIN-RAIL 220VAC | Rail |
| 33601076 | LED CONT. FIBERLI SHOW MASTER WALL MOUNT 220VAC | Surface |
Key Features
Show Master is an innovative Art-Net DMX control device developed for script-based animation playback, offering microsecond-accurate timing. Designed to deliver maximum performance with minimal hardware resources, the device delivers fast, reliable, and stable performance thanks to its ARM-based quad-core Cortex-A7 processor. With its wide range of compatibility, flexible integration, and ease of use, it offers effective solutions in various fields such as industrial automation and stage lighting systems. Show Master has the ability to play recorded animations on site without the need for a computer. It supports up to 32 universes.
Technical Specifications
| Features | Parametre | Explanation |
| Electrical | Input Voltage | 85~265 VAC |
| Input Voltage Frequency | 47~63 Hz | |
| Power Consumption | <4W | |
| Functional | Processor | H2 Quad-core Cortex-A7 |
| GPU | Mali400MP2 GPU @600MHz | |
| Number of Supported Universes | 32U (16.384 channels) | |
| Ethernet Speed | 10/100 Mbps | |
| Ethernet Features | Auto Negotiation, Auto MDIX | |
| USB Speed | USB 2.0 | |
| Network Protocol | Art-Net™ (I, II, 3, 4) (Point-to-Point and Broadcast) | |
| Operating Temperature | -20°C to 50°C | |
| Physical | IP Class | IP20 |
| Dimensions | 166 × 130 × 60 mm | |
| Weight | 615 gr | |
| Montaj | Rail and Wall |
• Microsecond Precision Timing
Optimized algorithms calculate time differences in microseconds to ensure precise synchronization.
• Support for up to 32 Universes
Supports up to 512 channels per universe, offering versatile control options for projects.
• High-Performance ARM Processor
The quad-core Cortex-A7 processor delivers uncompromising performance in data processing and analysis.
• Plug & Play Design
Offers quick use without the need for additional configuration at startup.
• Hardware Optimization
Provides maximum performance and energy efficiency with minimal resource consumption.
• Synchronization and Stability
Supports seamless and synchronized playback of high-resolution content.
• Durable and Compact Design
Features a lightweight, energy-efficient, and portable structure.
• Flexible Adaptability
Can be easily used in various sectors such as industrial automation, stage lighting, and digital signage systems.
• Easy Installation Options
Provides easy installation with rail system and wall mounting options.
• Stand-Alone Operation
Can operate independently without the need for a computer. Automatically detects and plays animation files.
• Lightning Protection
Provides lightning protection up to 3 kV, enhancing safety during field use.
• Compact and Durable Design
Lightweight, portable, and energy-efficient design suitable for field conditions. DIN rail or wall mounting options are available.
Mounting

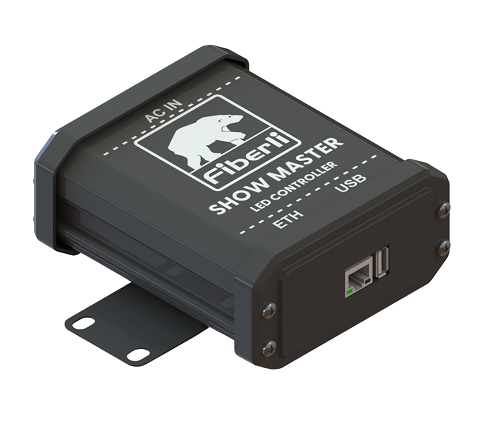

WALL MOUNT

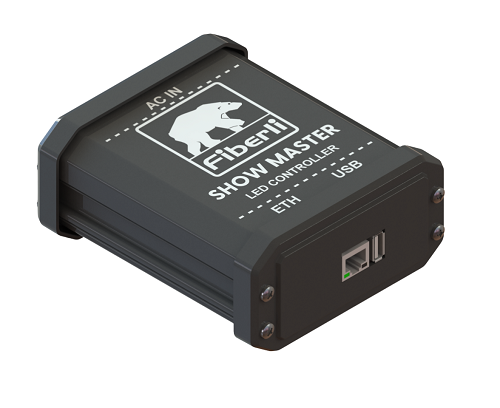

RAIL MOUNT
Connection Options

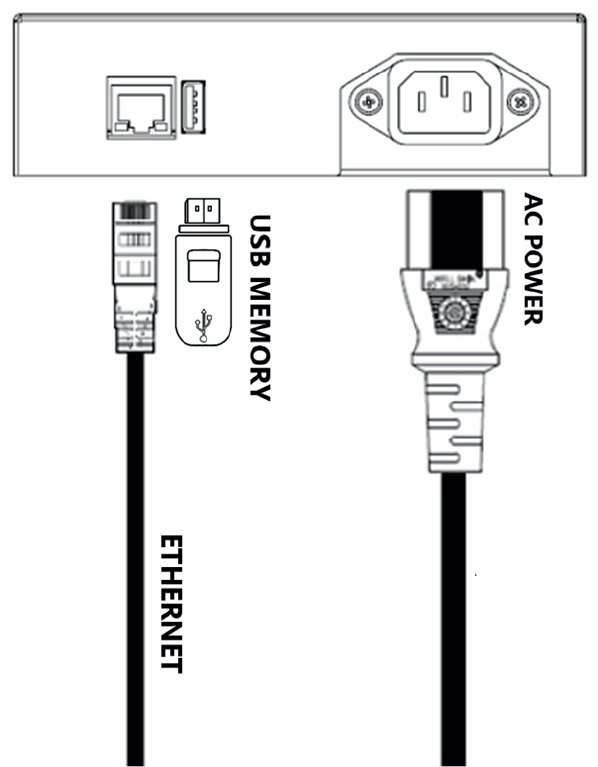

SHOW MASTER CONNECTION

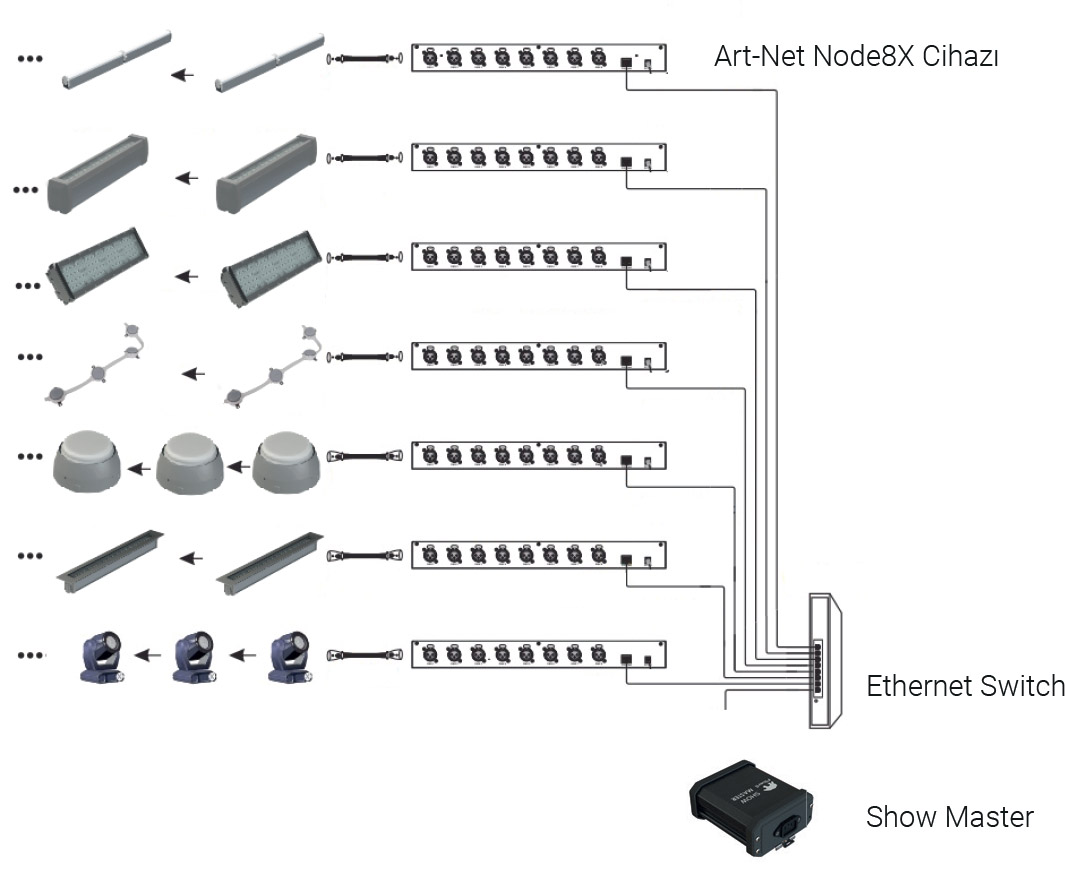

SHOW MASTER CONNECTION 2
- 1x Ethernet port
- 1x USB 2.0 port
- 1x Power

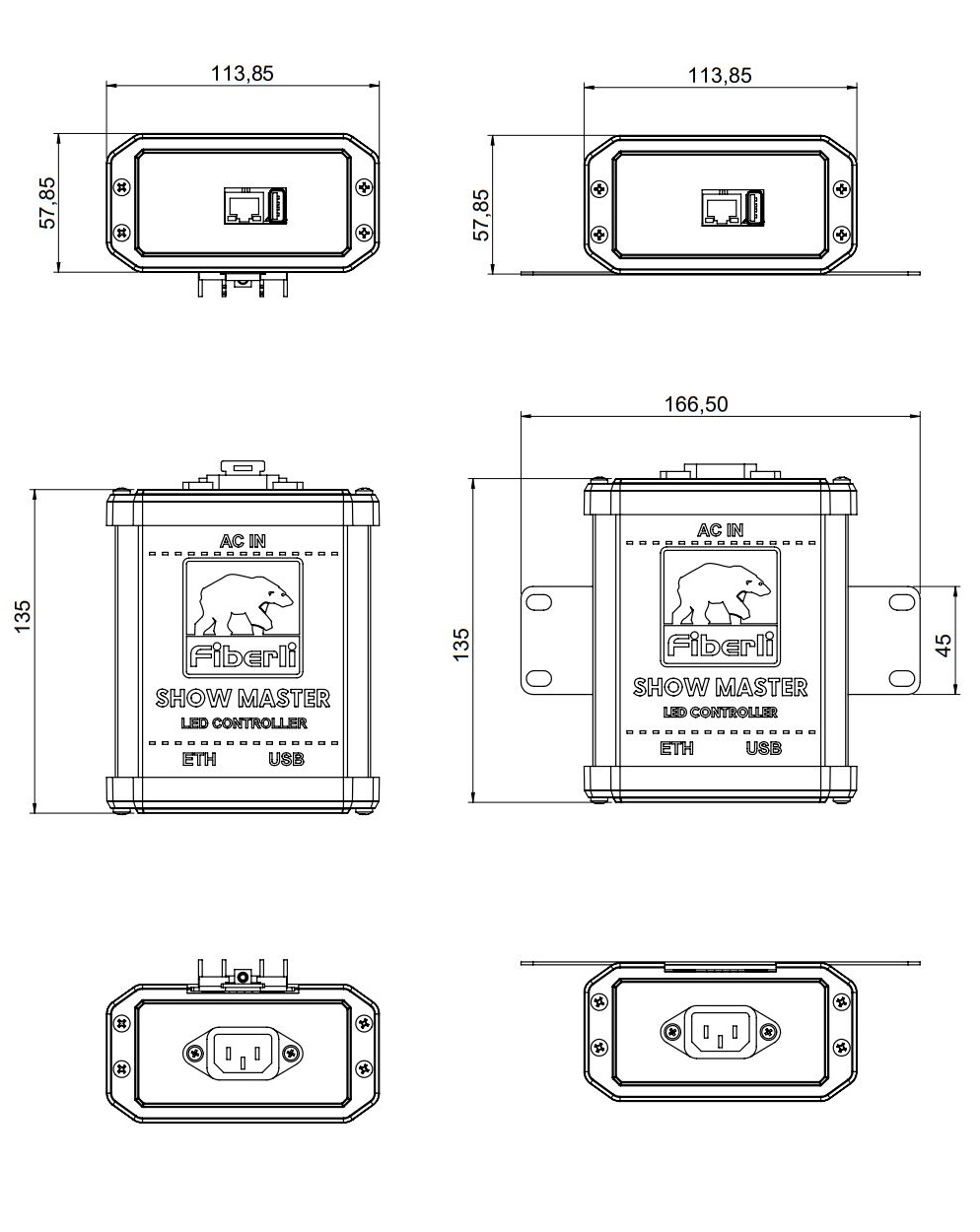

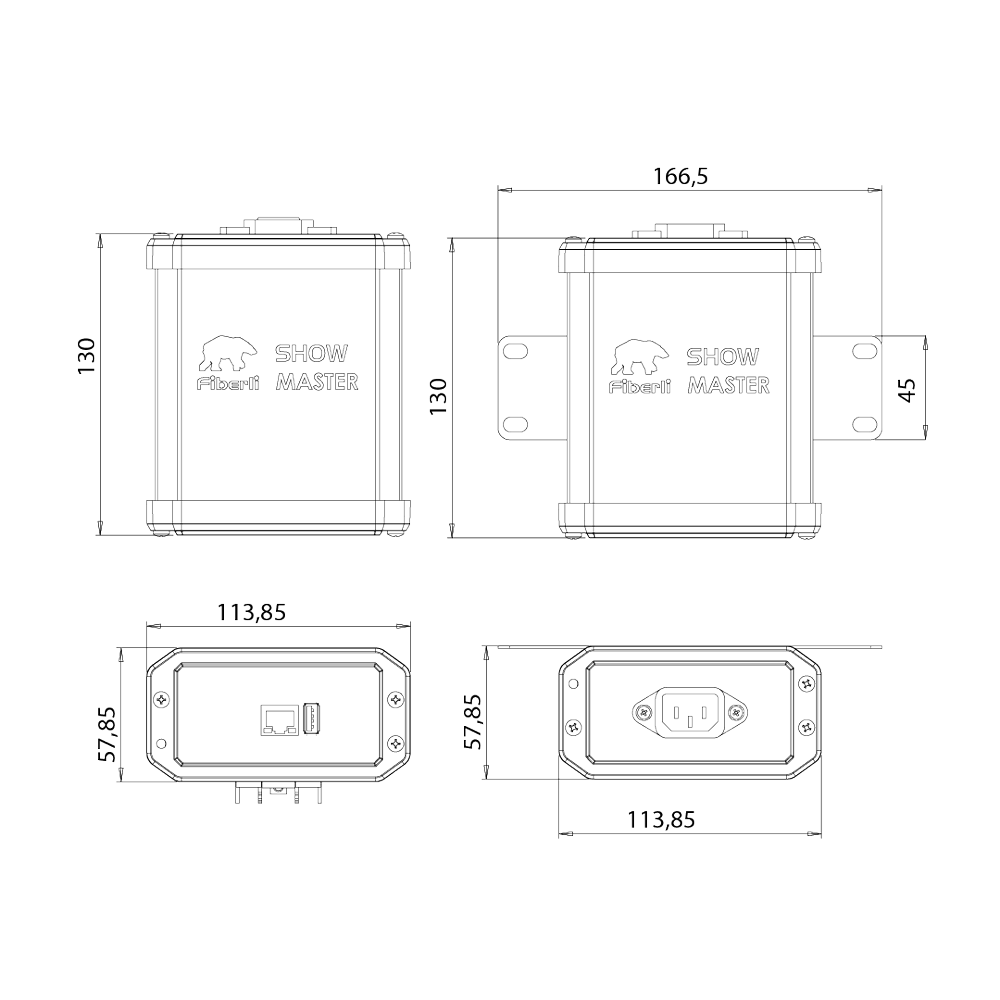

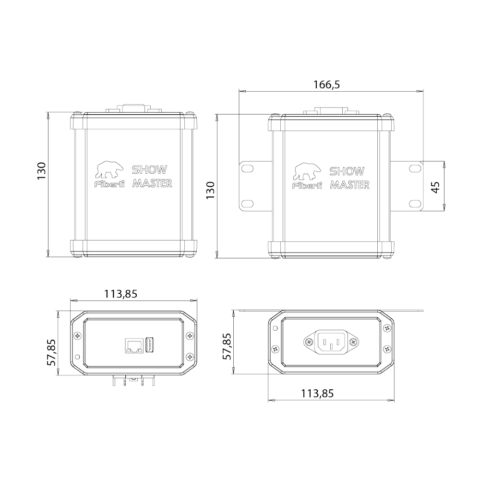

Technical Draw
Documents
