C-LINE-18-SCRN
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | LED Quantity LED/mt | Piksel Count | Length (L) (mm) |
|---|---|---|---|---|---|---|
| C-LINE-18-SCRN | RGB | 48V DC | 8,4 | 60 | 10 cm/px | 1205 |
| C-LINE-18-SCRN | RGB | 48V DC | 10,8 | 80 | 6 cm/px | 1205 |
Key Features
ELECTROMECHANICAL SPECIFICATIONS• 6 cm/px - 10 cm/px resolution options
• 95% light efficiency with Balanced High Voltage
technology
• 48VDC Power Input
• End-to-end connection without wiring infrastructure
• Homogeneous and vivid colors in every pixel with
TrueColor Technology
• Resistance to all harsh conditions with
Lock & Light System and IP67 connection structure
• Sealed encapsulated structure
• High UV resistance
• Slim design
• 16 million colors
• Ultra lightweight body
Light Color Options
 |
RGB |
Control System Options
| Color Type | PWM | INW PWM | DMX | |
|---|---|---|---|---|
| RGB | |
|||
Mounting

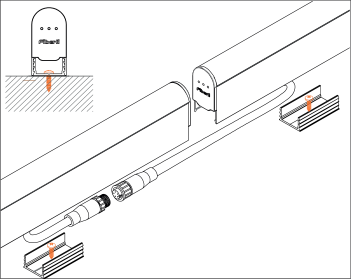

CLINE MOUNTING
Upper Piece Options
NO COVER (NC)
Housing Color Options
RAL9005
Product Diagrams

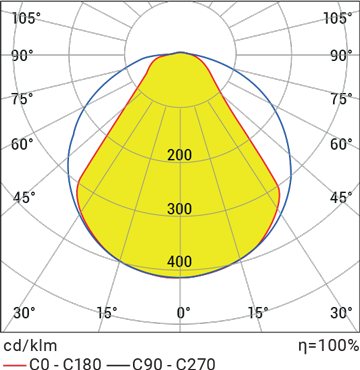

C LINE 18 SCRN POLAR

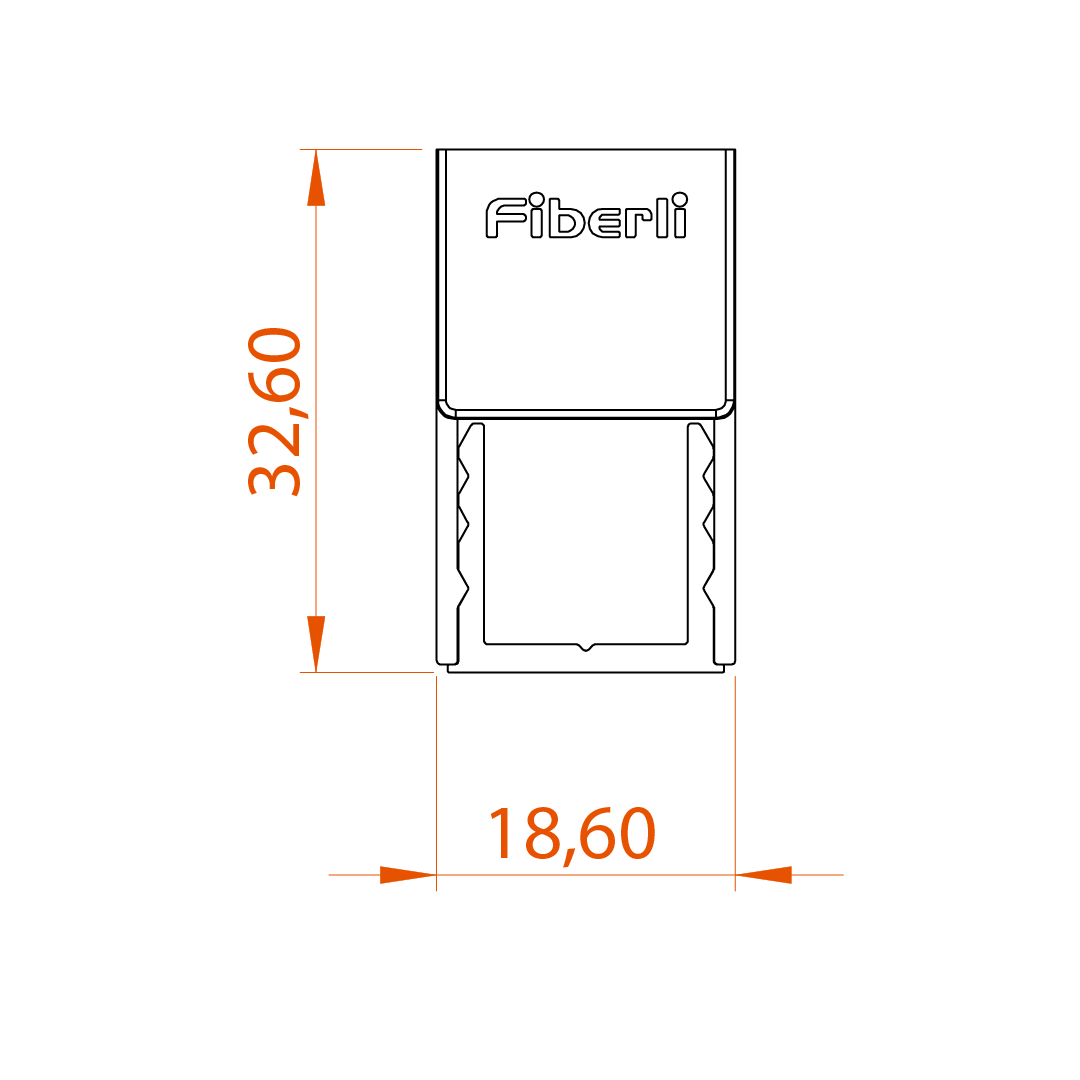

Technical Draw
Documents
Projects
