DOT DIAMOND
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Weight (kg) |
|---|---|---|---|---|---|
| DOT DIAMOND | RGBW | 24V DC | 2 | 117 | 0,07 |
*Power and Lumen values provided are based off of “cold white (CW) LED".
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Plastic injection body
• Polycarbonate luminaire glass
• Easy setup system
• New generation Chip RGBW
Light Color Options
 |
RGBW |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| RGB DMX |
|
||||||
Accessories
33600991: DOT DIAMOND MINI BUAT
33600992: DOT DIAMOND MIDI BUAT

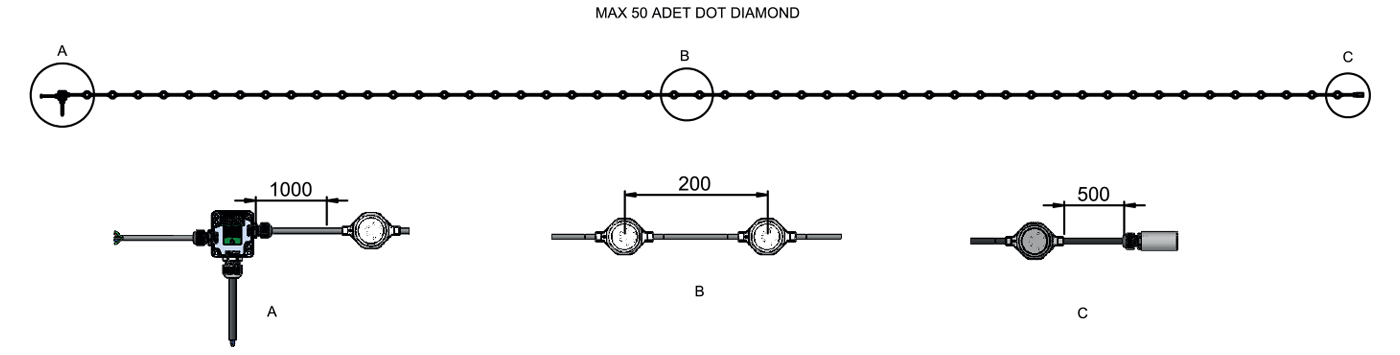

STANDARD CONNECTION SCHEME
33600992: DOT DIAMOND MIDI BUAT
STANDARD CONNECTION SCHEME
A
• As a DMX data ve power cable:
33400617 CABLE 1x2x0,22mm+1x2x0,75mm+1x0,22mm BLACK
It is the entry point for both data and power
B
• The distance between pixels can be 20, 50, 60cm
C
• The last product in the chain should be equipped with an end connector.
33600993 DOT DIAMOND
• As a DMX data ve power cable:
33400617 CABLE 1x2x0,22mm+1x2x0,75mm+1x0,22mm BLACK
It is the entry point for both data and power
B
• The distance between pixels can be 20, 50, 60cm
C
• The last product in the chain should be equipped with an end connector.
33600993 DOT DIAMOND
Mounting
02. SURFACE MOUNT WITH ADHESIVE
14. SCREW MOUNT
Upper Piece Options

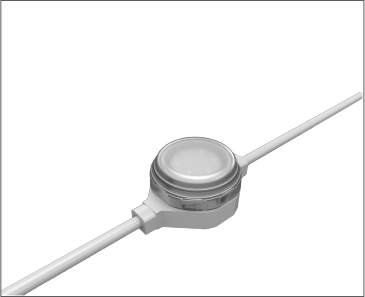

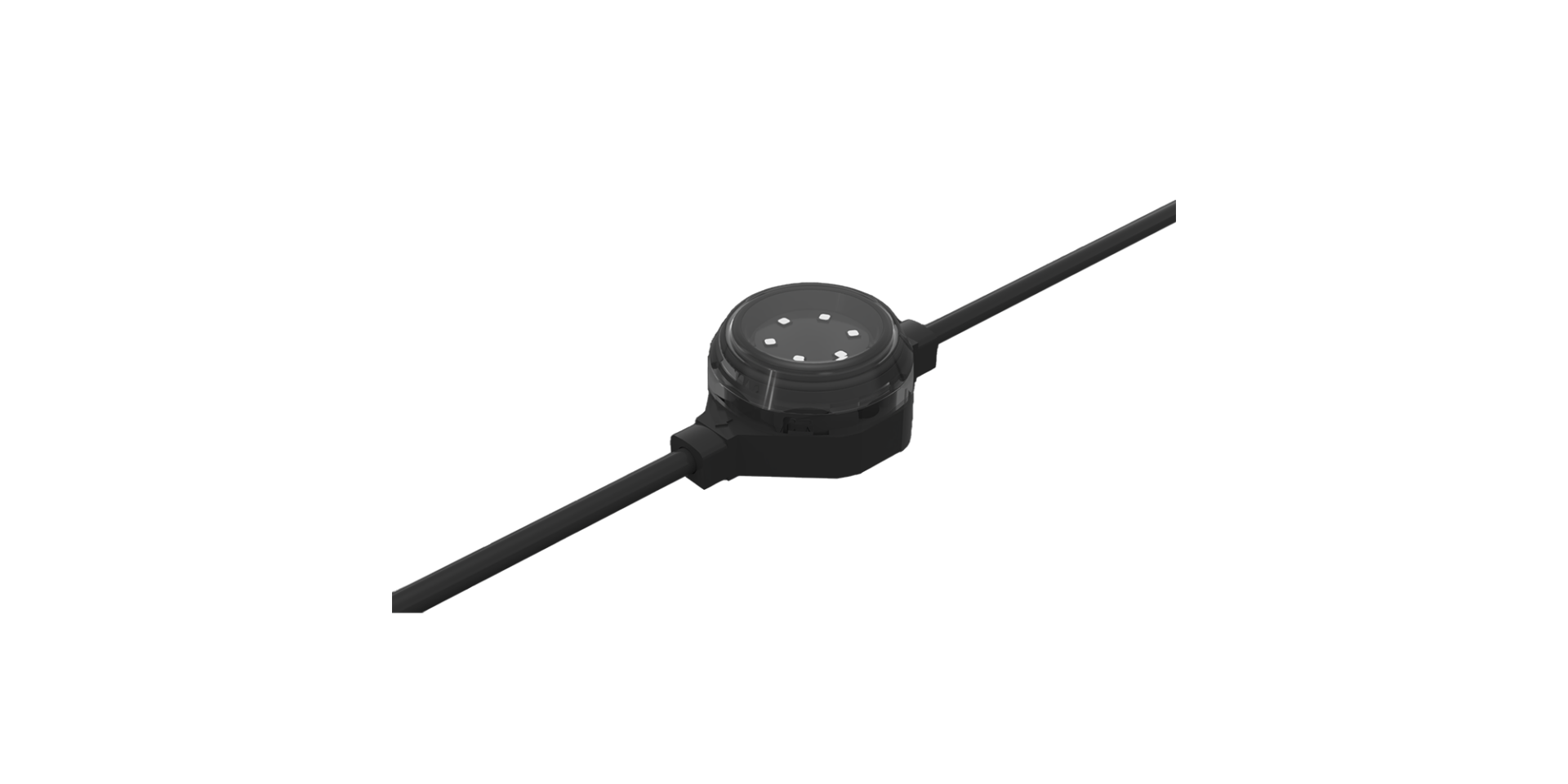

DDU. DIFFUSED

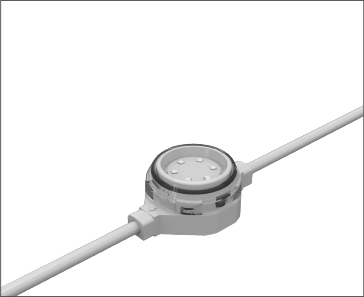

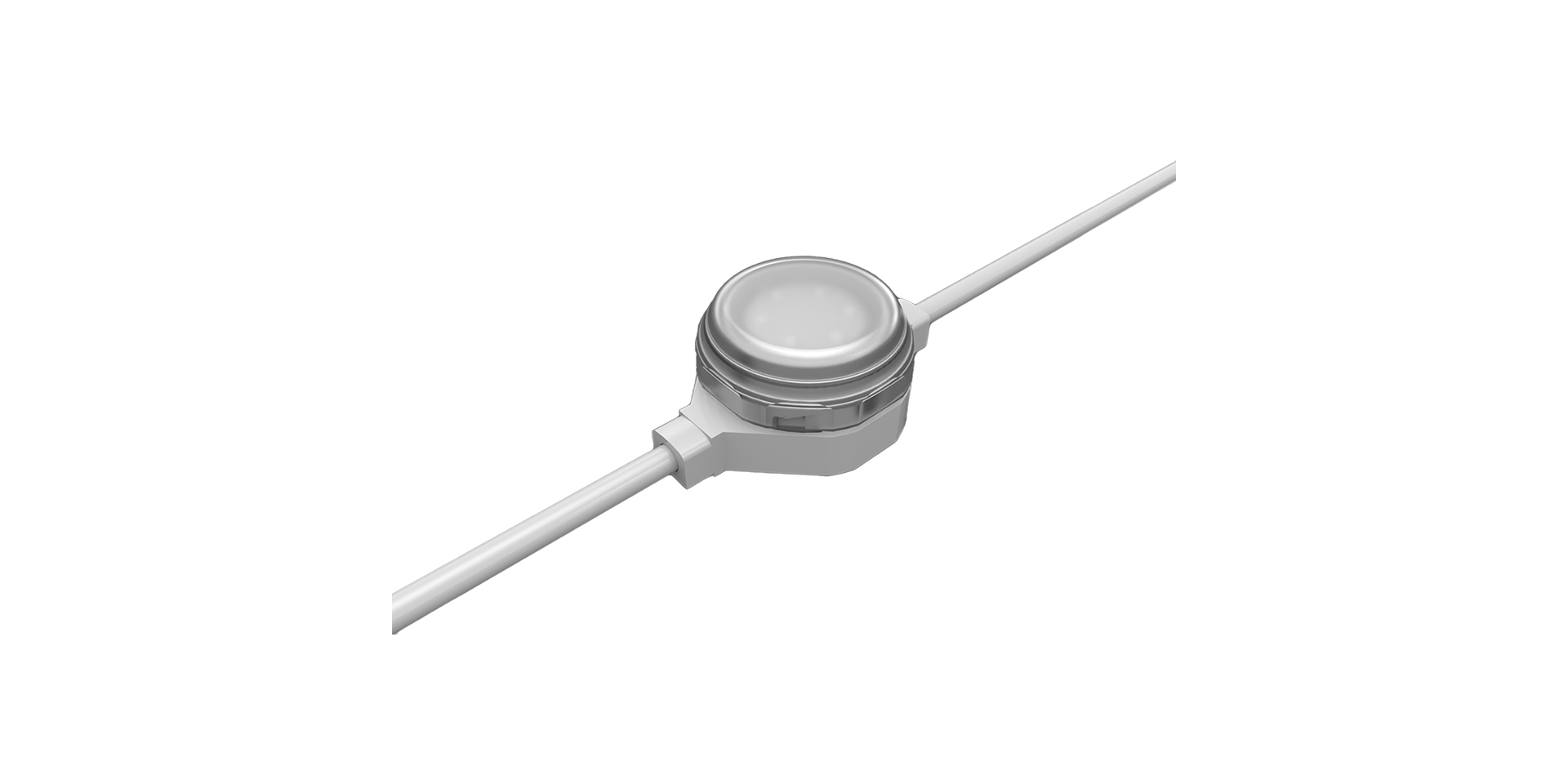

DSF. TRANSPARENT
Housing Color Options
RAL9005
RAL9016

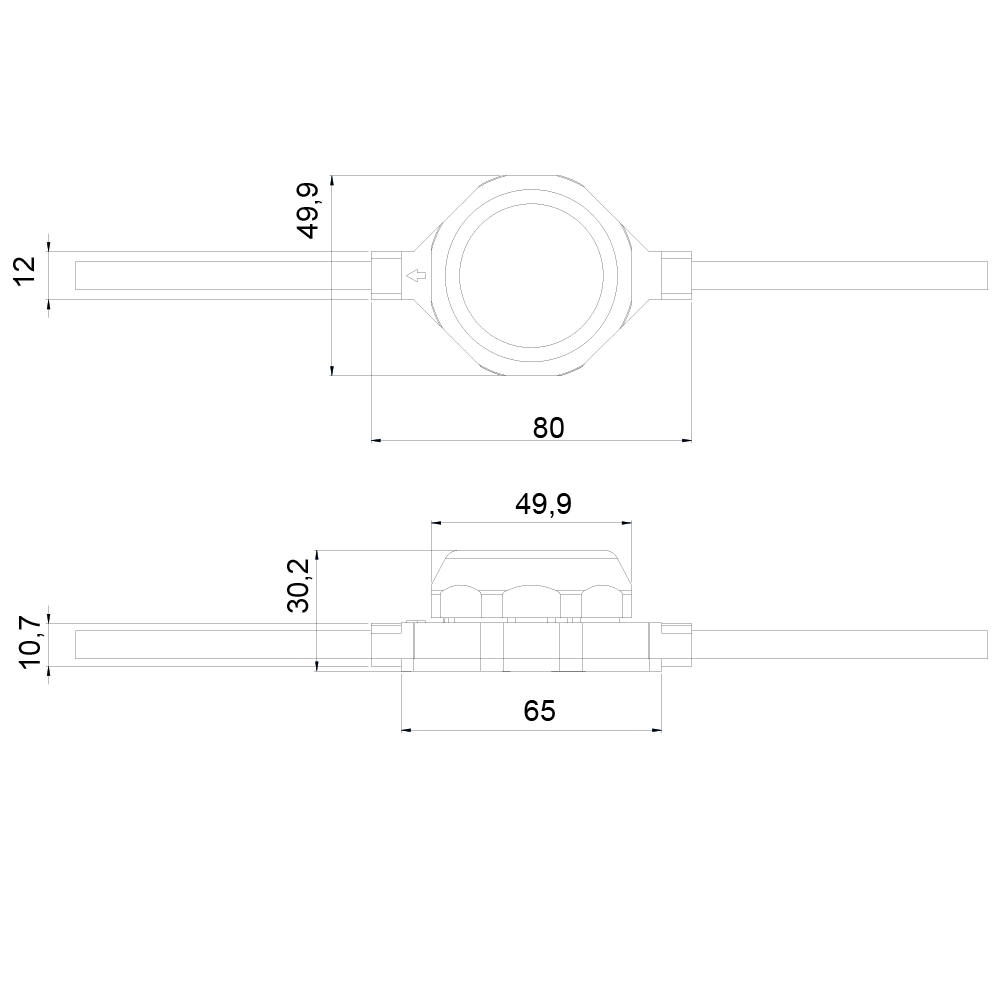

Technical Draw
