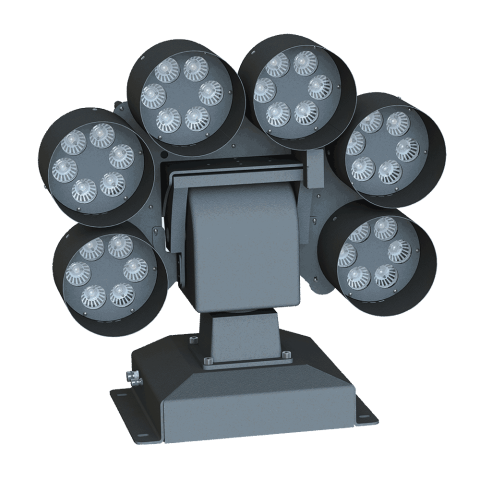

Eagle Eyes M
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| PRODUCT NAME | EXPLANATION | INPUT VOLTAGE (V) | POWER (W) | LUMINOUS FLUX (lm) | DIMENSIONS (AxBxC) |
|---|---|---|---|---|---|
| EAGLE-EYES-M | Border lighting | 220-240V AC | 380 | 40.000 | 720x847x637mm |
| Tilt Range | -35° ~ + 35° |
| Pan Range | -90° ~ + 90° |
Key Features
Manually controlled border lighting projector
High performance durable design for security lighting
ELECTROMECHANICAL SPECIFICATIONS
• Minimum 5lx light level at the center point at a distance of 1,000 meters
• 180° horizontal axis, 35° down and 35° upward movement capability
• 250mm long light refractor that provides glare control
• Providing appropriate combination with different lenses
• 10kV surge protection circuit
• Electrostatic powder coated aluminum injection body
• Aluminum, DKP and chrome sheet metal parts specially shaped by laser cutting
• Stainless fittings
• Drawer type locked panel box
• Glass cone shaped light collector
• Stabilizing feet providing safe installation and usage
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
XN. EXTRA NARROW ANGLE
Housing Color Options
RAL9005
RAL9016
Product Diagrams
Technical Draw
Documents
