NODE2X
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
TECHNICIAL SPECIFICATIONS
| Specification | Parameter | Explanation | |||
| 33600816 | 33600817 | 336000818 | 33600819 | ||
| Electrical | Input Voltage | 24VDC | |||
| Power Input Socket | 2-Pin Plug-in Socket | ||||
| Power consumption | 2.4W | ||||
| Functional | Data Input Signal | Art-Net™ | |||
| Data Input Socket | RJ45 | ||||
| Ethernet Hızı | 10/100 Mbit/s | ||||
| Ethernet Speed | Auto-Neg. Auto-MDIX | ||||
| Ethernet Features | DMX512 | ||||
| Data Output Signal | XLR-3PIN | Socket | Socket | Socket | |
| Data Output Ports | 2 | ||||
| Total DMX Channels | 1024 | ||||
| Physical | Dimensions (AxBxC) | 135x104x44,5 | 135x85,5x44,5 | 170x87,8x44,5 | 466x87,8x44,5 |
| -10°C ~ 60°C | |||||
| IP20 | |||||
Products OPTIONS
| Stock code | Stock name | Connection Type | Mounting Type |
| 33600816 | Led Controller Node2X XLR-3-Pin Din-Rail 24VDC | XLR 3-Pin | Rail |
| 33600817 | Led Controller Node2X Socket Din-Rail 24VDC | Socket 3-Pin | Rail |
| 33600818 | Led Controller Node2X Socket Wall-Mount 24VDC | Socket 3-Pin | Wall |
| 33600819 | Led Controller Node2X Socket Rack-Mount 24VDC | Socket 3-Pin | 1U Rack |
Key Features
• Art-Net ™ input signal
• 2-PORT DMX512 output signal
• XLR ve Socket options
• High speed ARM processor
• Web configuration interface
• Perfect compatibility with all protocol compliant software
• Rail, Wall ve Rack mounting options
• 100Mbit/s Ethernet speed
• Quick start
• Short circuit and ESD protection on output ports
• Data/Link status information lights
• Universal input voltage range (85~265VAC)
• Short-term plug and unplug of Ethernet cables while it is in operation (Hot plug)
• Plug and play operation without initial reconfiguration

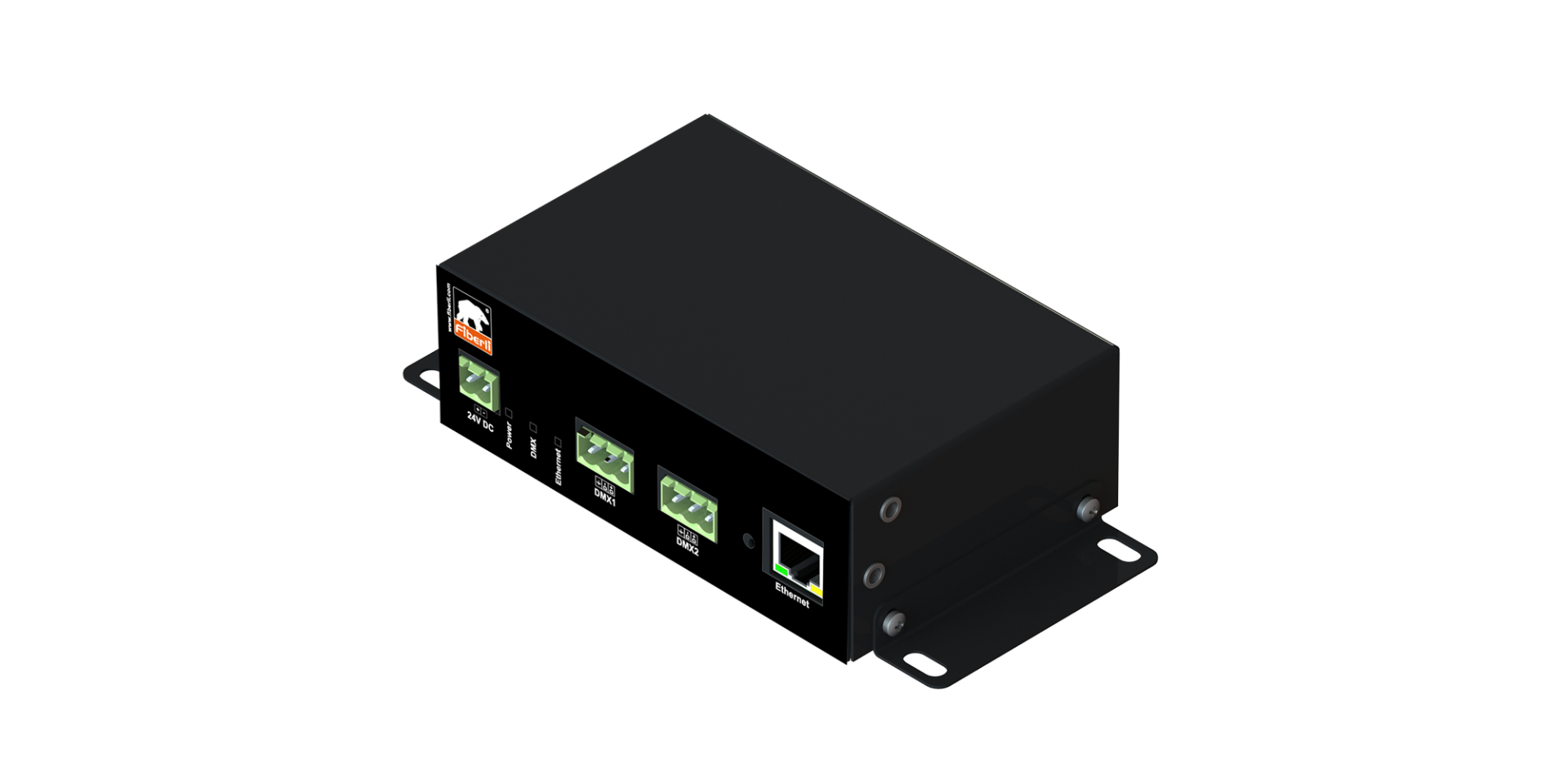

Fiberli Node2X is a DMX512-Ethernet interface device. Converts Art-Net ™ packets over the network into suitable DMX512 data. Its power comes from the ARM architecture, high-speed processor. Provides stable and reliable operation. Via the web configuration interface, settings such as IP address, port numbers can be easily changed and the current status can be displayed. Compatible with all control software that supports the commonly used Art-Net ™ protocol.

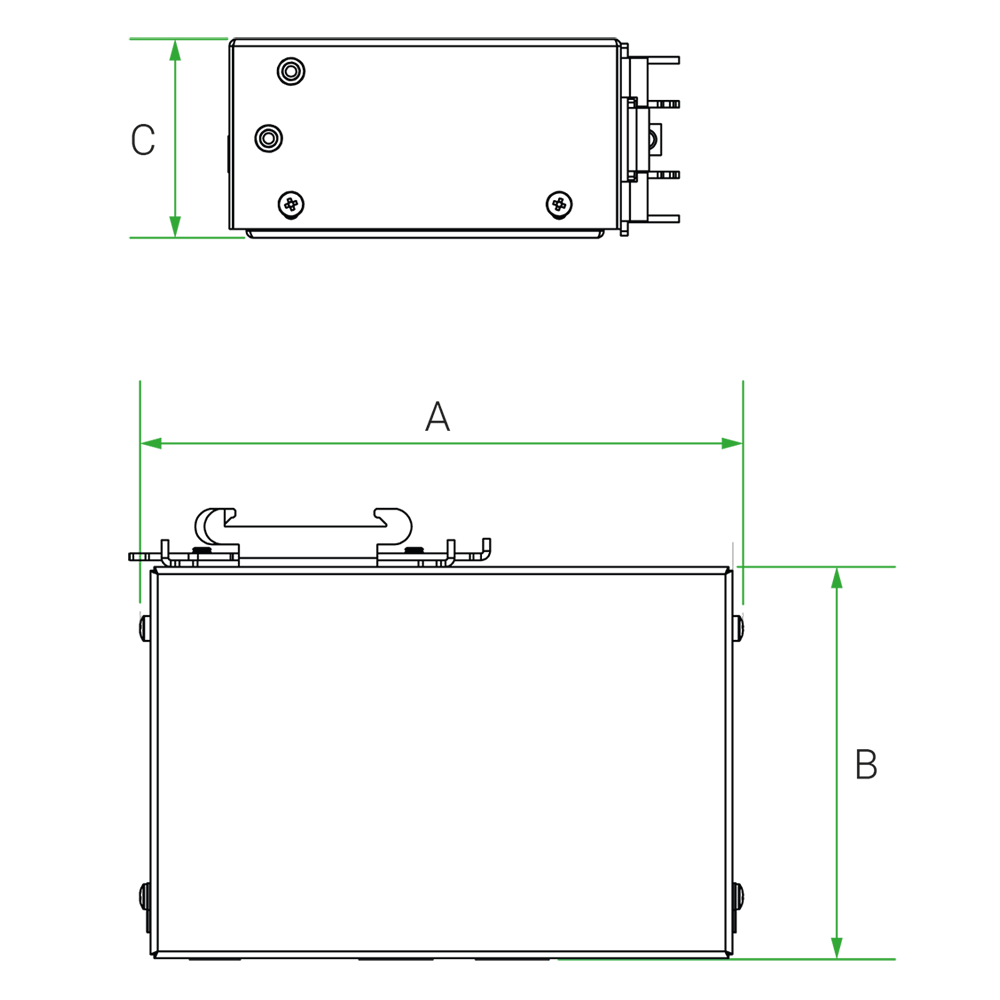

Technical Draw
Documents
