WH6
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| WH6 | WW-NW-CW | 220-240V AC | 60 | 10.291 | 4,1 |
| WH6 | WW-NW-CW | 220-240V AC | 70 | 11.428 | 4,1 |
| WH6 | WW-NW-CW | 220-240V AC | 80 | 12.214 | 4,1 |
| WH6 | WW-NW-CW | 220-240V AC | 90 | 13.309 | 4,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum injection housing
• High cooling capacity body design
• 5 mm polyurethane luminaire glass with casted gland.
• Electrostatic painted DKP / Galvanized mounting feet
• Stainless fittings and clips
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
N. NARROW ANGLE
W. WIDE ANGLE
XW. WITHOUT LENS
Housing Color Options
RAL9005
RAL9007
RAL9016

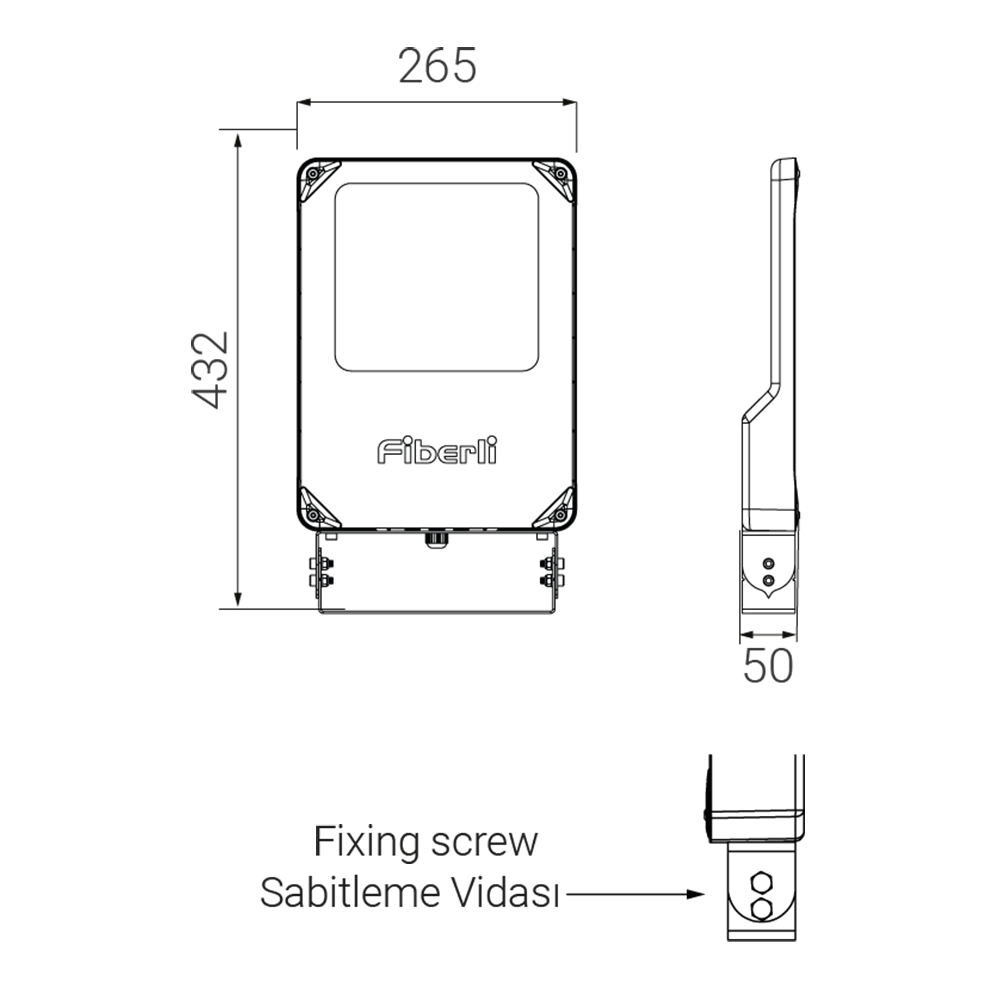

Technical Draw
Documents
Projects
