Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L)(mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WL033 | WW-NW-CW | 220-240V AC | 4 | 516 | 100 | 0,4 |
| WL066 | WW-NW-CW | 220-240V AC | 8 | 982 | 200 | 0,7 |
| WL109 | WW-NW-CW | 220-240V AC | 12 | 1.494 | 300 | 1 |
| WL112 | WW-NW-CW | 220-240V AC | 16 | 2.100 | 300 | 1 |
| WL218 | WW-NW-CW | 220-240V AC | 22 | 2.916 | 600 | 1,5 |
| WL224 | WW-NW-CW | 220-240V AC | 30 | 4.065 | 600 | 1,5 |
| WL327 | WW-NW-CW | 220-240V AC | 32 | 4.609 | 900 | 2,4 |
| WL336 | WW-NW-CW | 220-240V AC | 44 | 6.160 | 900 | 2,4 |
| WL436 | WW-NW-CW | 220-240V AC | 42 | 6.034 | 1200 | 2,9 |
| WL448 | WW-NW-CW | 220-240V AC | 58 | 8.013 | 1200 | 2,9 |
| WL109-DMX | RGB | 220-240V AC | 16 | - | 300 | 1 |
| WL112-DMX | RGB/RGBW | 220-240V AC | 14 | - | 300 | 1 |
| WL218-DMX | RGB | 220-240V AC | 25 | - | 600 | 1,5 |
| WL224-DMX | RGB/RGBW | 220-240V AC | 28 | - | 600 | 1,5 |
| WL327-DMX | RGB | 220-240V AC | 36 | - | 900 | 2,4 |
| WL336-DMX | RGB/RGBW | 220-240V AC | 42 | - | 900 | 2,4 |
| WL436-DMX | RGB | 220-240V AC | 48 | - | 1200 | 2,9 |
| WL448-DMX | RGB/RGBW | 220-240V AC | 56 | - | 1200 | 2,9 |
*Power and Lumen values provided are based off of a “(10° and 60°) cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extruded profile
• Stainless chrome fixture stand.
• Polycarbonate luminaire glass.
• PVC side covers with invisible gland outlet and UV protection.
• High efficiency group lens.
• IP68 air vent.
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm |  |
RGB | ||
| NW:Natural White | 4000K | G:Green | 525nm |  |
RGBW | ||
| CW:Cold White | 6500K | B:Blue | 465nm |  |
RGBA | ||
| A:Amber | 590nm |
*Different colors are optional (Color alternatives are not avaliable with DOB option).
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
|
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
E. ELLIPTICAL ANGLED
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
Mounting
STAND CONNECTOR
20: Standard Stand
21: Standard stand/ Mounting kit
OPTIONAL ACCESSORIES
34: Extension piece A=5cm
35: Extension piece A=10cm
36: Extension piece A=20cm
Extension pieces at any desired length are optional
35: Extension piece A=10cm
36: Extension piece A=20cm
Extension pieces at any desired length are optional
CONNECTING FITTTINGS
Connection Options
01. CABLE
02. IP SOCKET
Cable Direction Options
01: SINGLE ENTRY (LPI, BLI)
03: DUAL ENTRY AND EXIT (SIO, BIO)*
*The max. junction qty may vary for the products with both entry and exit.
Additional Options
DUAL ASSEMBLY
QUATERNARY ASSEMBLY
TERNARY ASSEMBLY

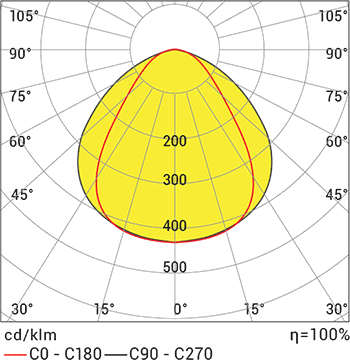

Product Diagrams
Technical Draw
Documents

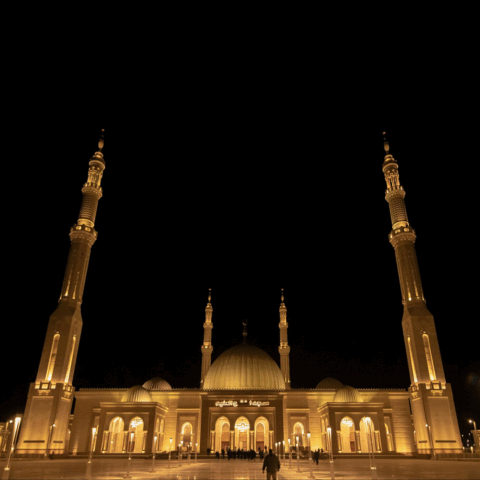

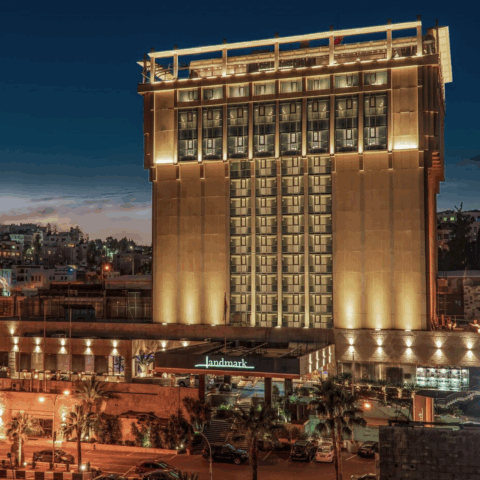

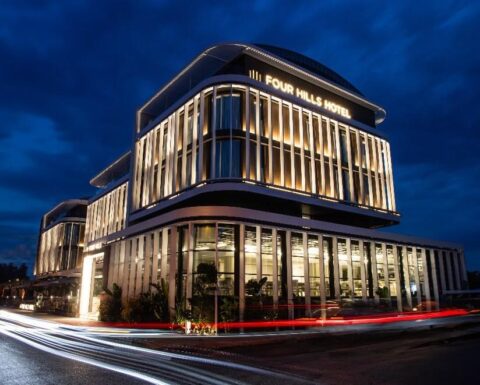

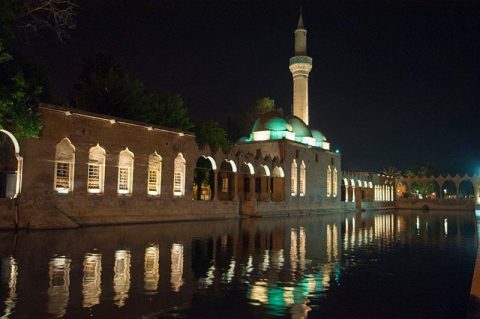

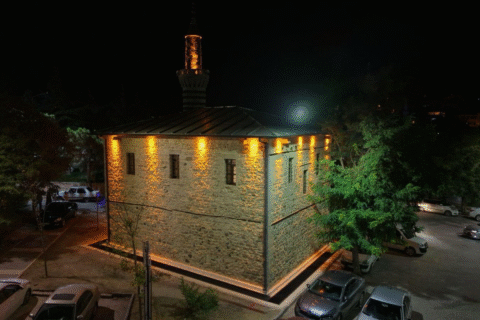

Projects
