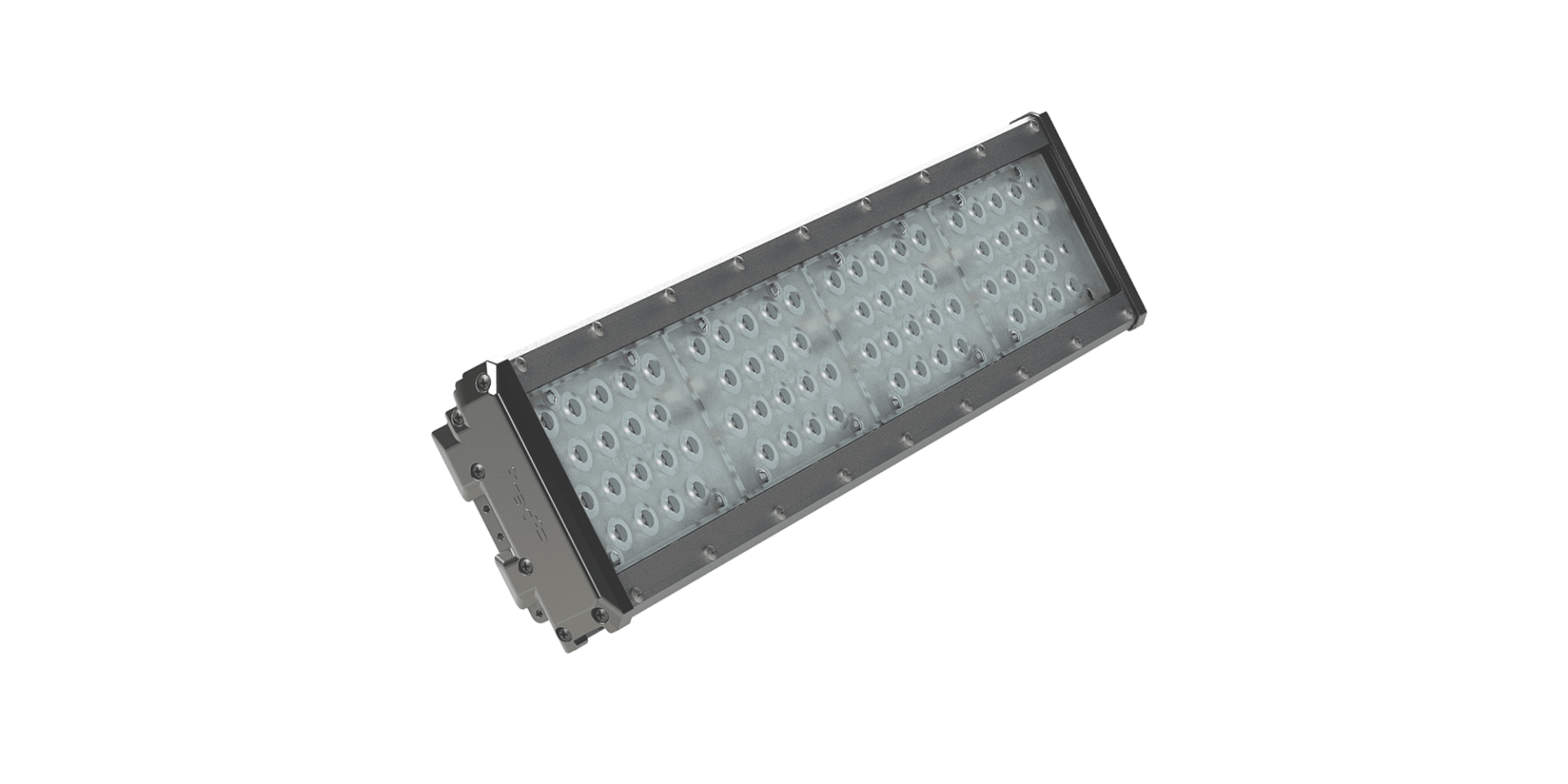

WS
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WS118 | WW-NW-CW | 220-240V AC | 22 | 2399 | 170 | 1,8 |
| WS236 | WW-NW-CW | 220-240V AC | 42 | 4894 | 320 | 2,9 |
| WS354 | WW-NW-CW | 220-240V AC | 62 | 8155 | 480 | 4,3 |
| WS336 | WW-NW-CW | 220-240V AC | 90 | 8642 | 480 | 4,3 |
| WS472 | WW-NW-CW | 220-240V AC | 85 | 11145 | 610 | 5,3 |
| WS118-DMX | RGB | 220-240V AC | 25 | - | 170 | 1,8 |
| WS236-DMX | RGB | 220-240V AC | 48 | - | 320 | 2,9 |
| WS354-DMX | RGB | 220-240V AC | 60 | - | 480 | 4,3 |
| WS472-DMX | RGB | 220-240V AC | 95 | - | 610 | 5,3 |
| WS232-DMX | RGB/W/A | 220-240V AC | 60 | - | 320 | 2,9 |
| WS348-DMX | RGB/W/A | 220-240V AC | 95 | - | 480 | 4,3 |
| WS464-DMX | RGB/W/A | 220-240V AC | 120 | - | 610 | 5,3 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extruded profile
• Electrostatic powder coated, aluminum injection end cap
• Polycarbonate luminaire glass
• Stainless steel fixture stand
• High efficiency group lens
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm |  |
RGB | ||
| NW:Natural White | 4000K | G:Green | 525nm |  |
RGBW | ||
| CW:Cold White | 6500K | B:Blue | 465nm |  |
RGBA | ||
| A:Amber | 590nm |
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX* | DALI* | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W** |
|
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
* *Only for 24V DC
** * Produced as RGBW 16 LED and the multiples.
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
XW. WITHOUT LENS
Mounting
20. STANDARD STAND
21. STANDARD STAND MOUNTING KIT
OPTIONAL ACCESSORIES
34: Extension piece A=5cm
35: Extension piece A=10cm
36: Extension piece A=20cm
Extension pieces at any desired length are optional
35: Extension piece A=10cm
36: Extension piece A=20cm
Extension pieces at any desired length are optional
Connection Options
01. CABLE
02. IP SOCKET
Additional Options
DUAL ASSEMBLY
QUARTED ASSEMBLY
TRIPLE ASSEMBLY

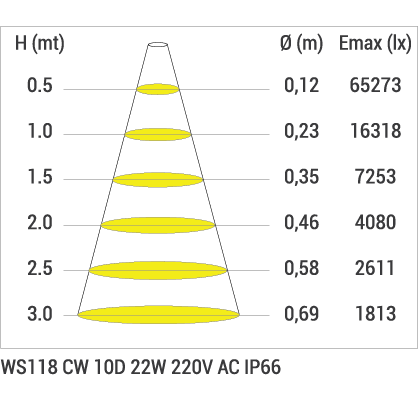

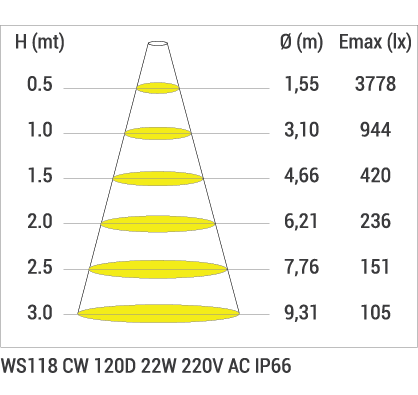

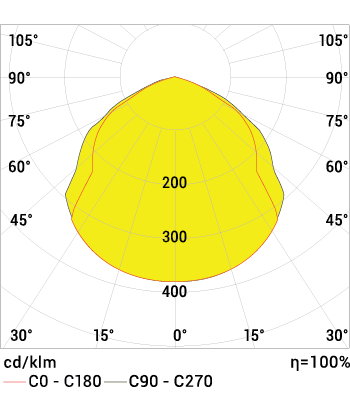

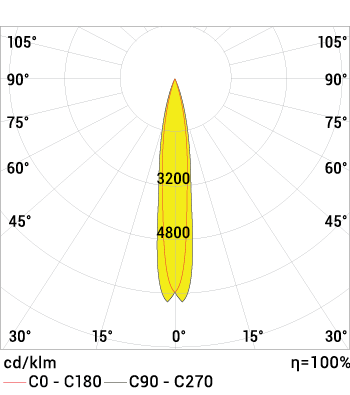

Product Diagrams

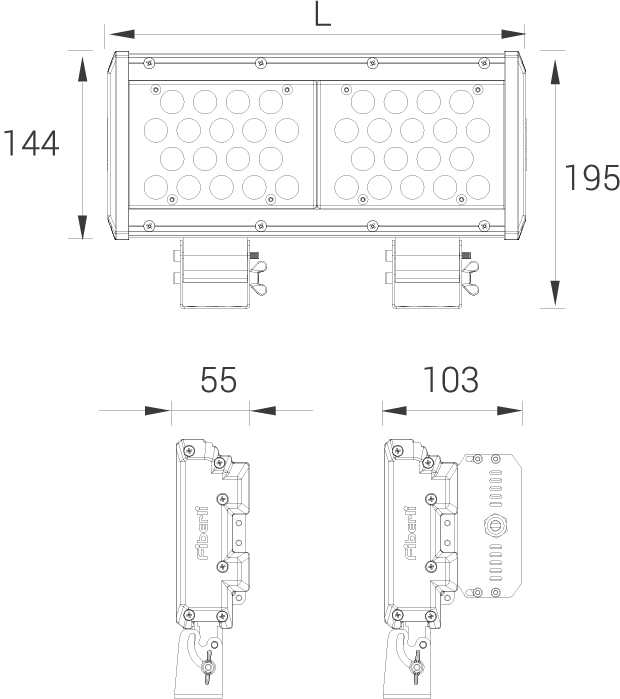

Technical Draw
Documents

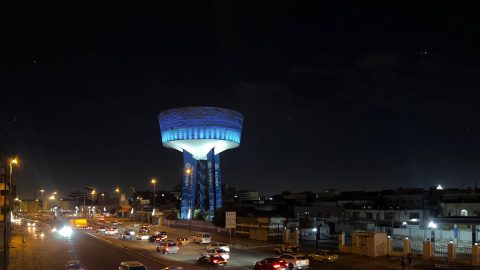

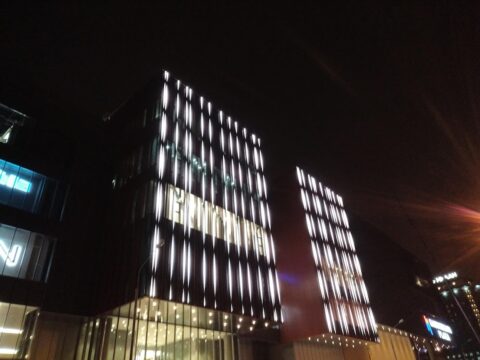

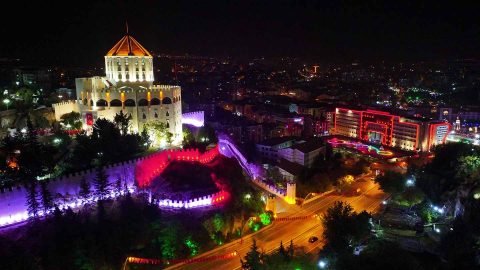

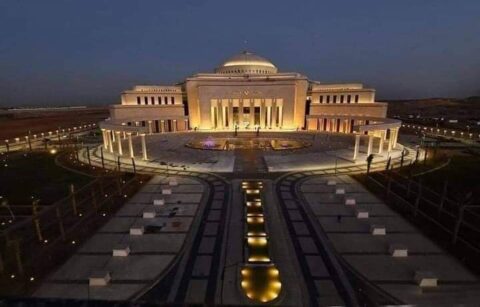

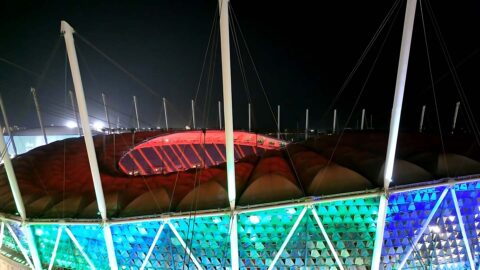

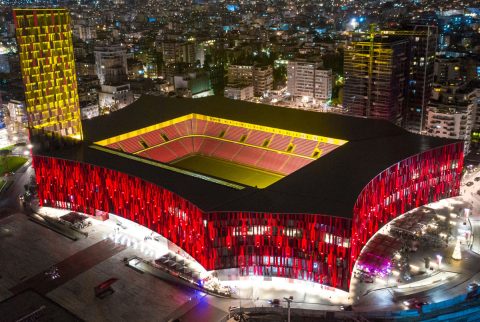

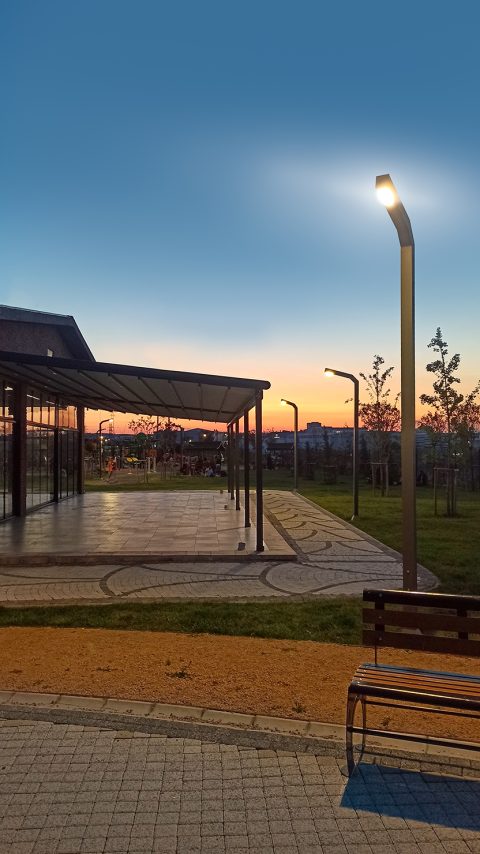

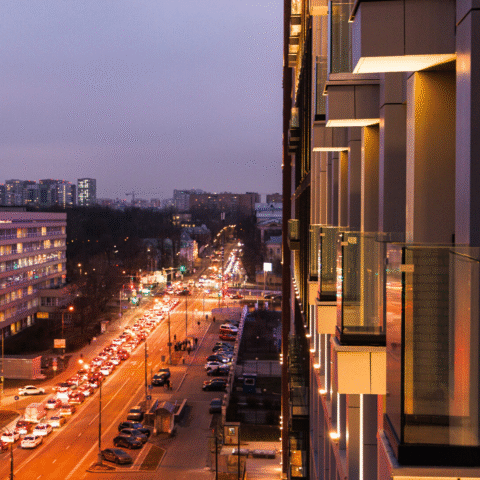

Projects
