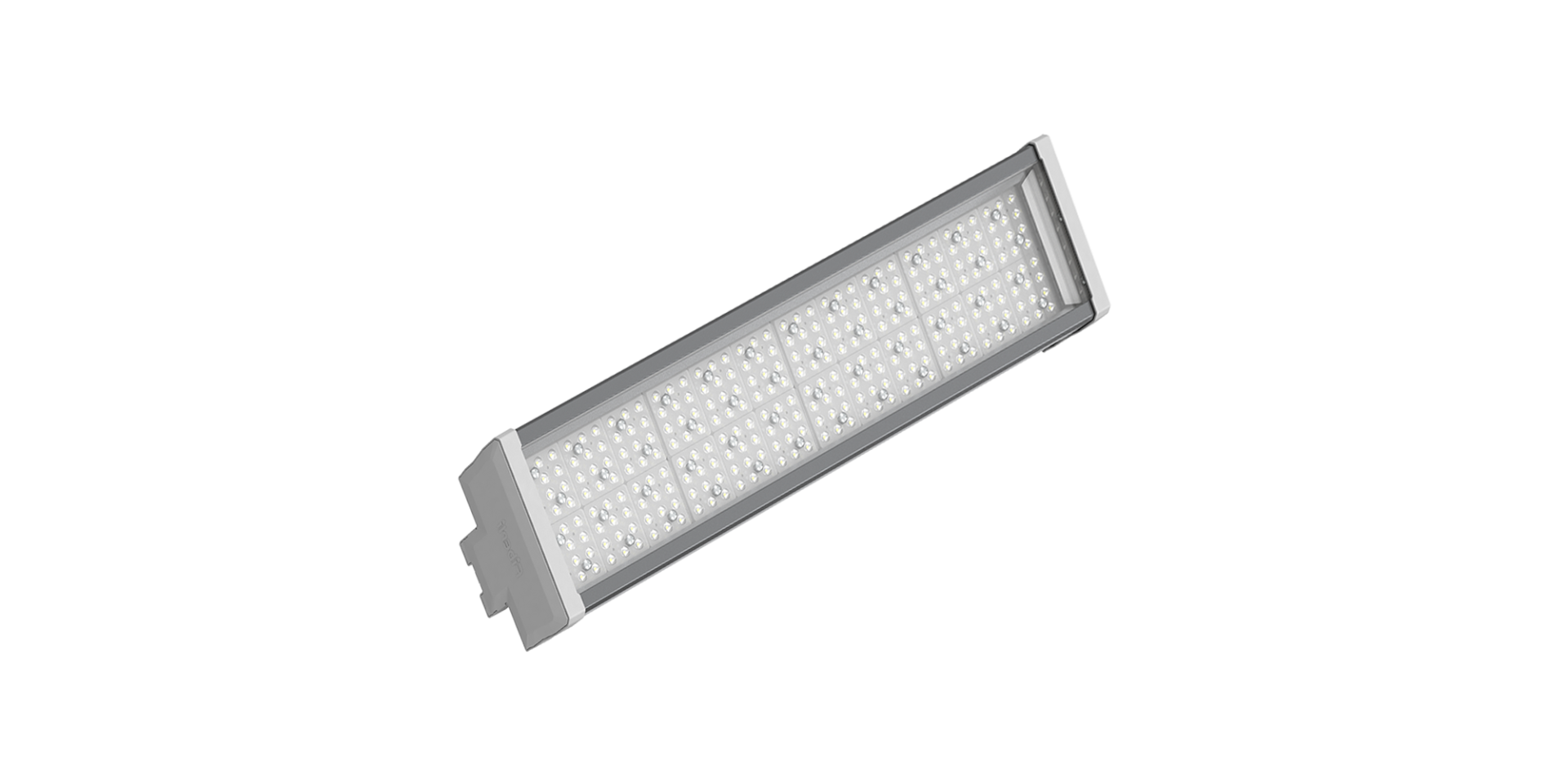

WSSM
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WS1-Small | WW-NW-CW | 220-240V AC | 25 | 3068 | 210 | 1,8 |
| WS2- Small | WW-NW-CW | 220-240V AC | 50 | 6273 | 361 | 2,7 |
| WS3-Small | WW-NW-CW | 220-240V AC | 75 | 9821 | 515 | 3,6 |
| WS4-Small | WW-NW-CW | 220-240V AC | 100 | 12973 | 668 | 4,7 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extruded profile
• Electrostatic powder coated, aluminum injection end cap
• Polycarbonate luminaire glass
• PC side covers with invisible gland outlet an UV protection
• High efficiency group lens
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
XW. WITHOUT LENS
Connection Options
01. CABLE
02. IP SOCKET
Housing Color Options
RAL9005
RAL9007
RAL9016

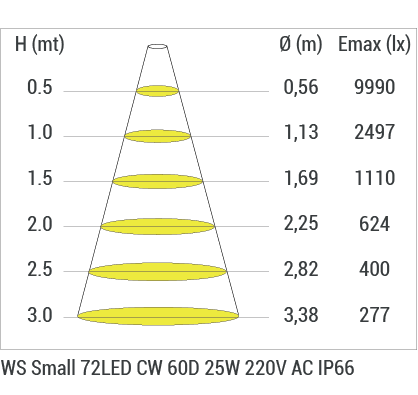

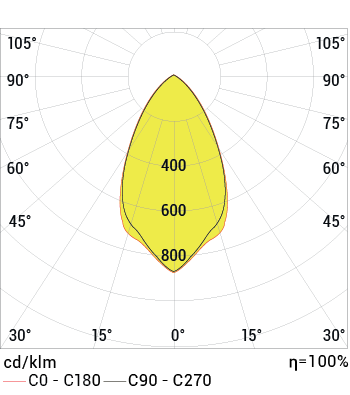

Product Diagrams

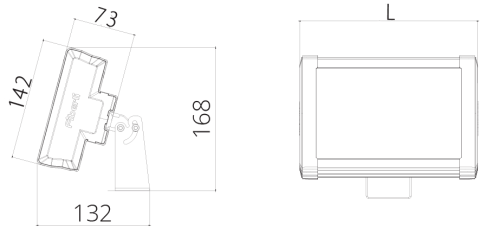

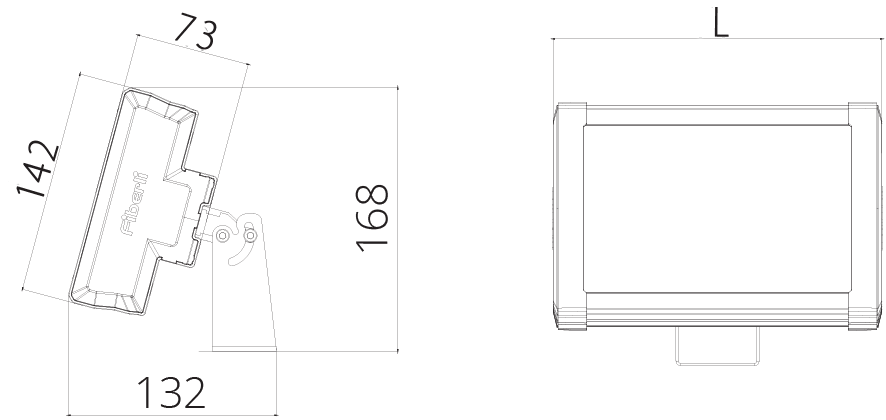

Technical Draw
Documents

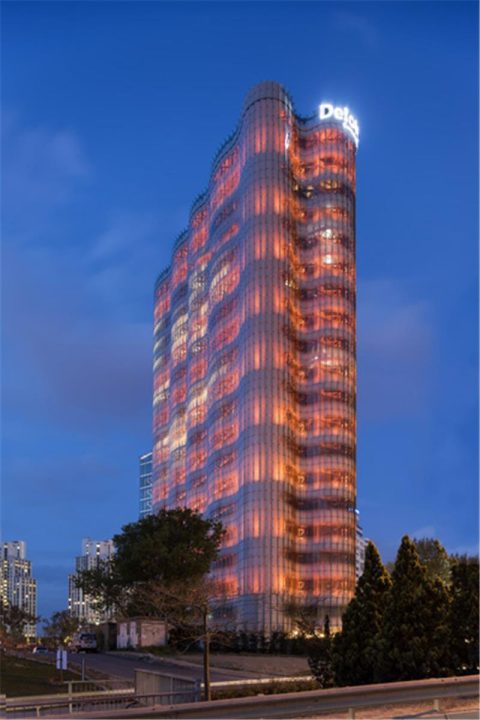

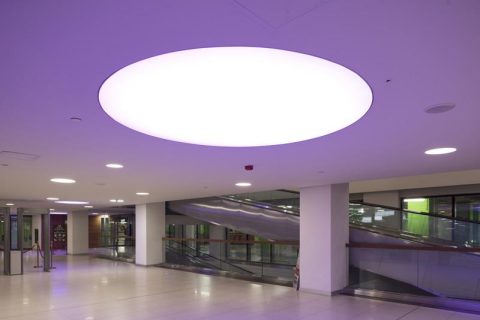

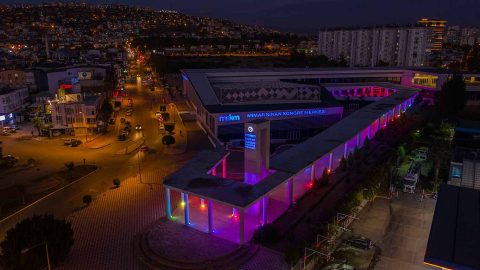

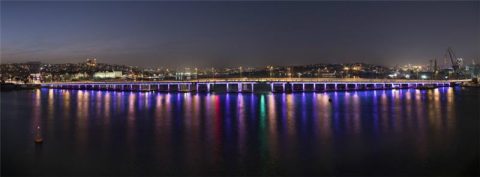

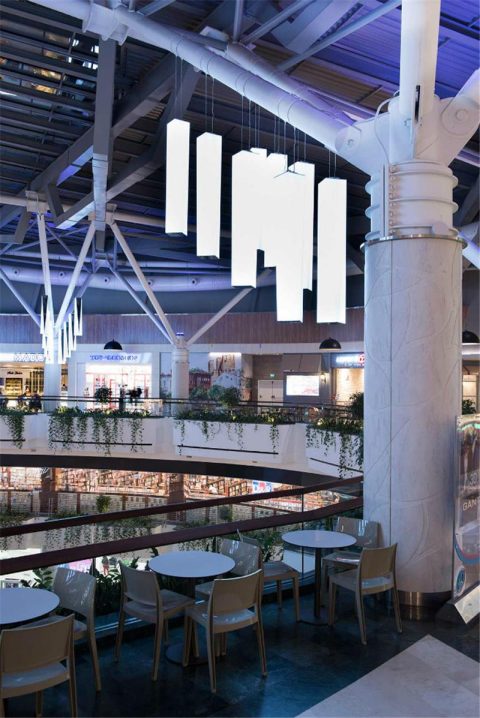

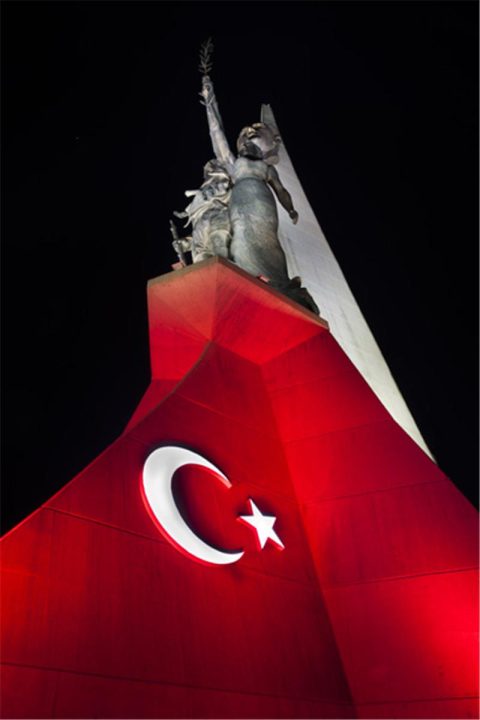

Projects
