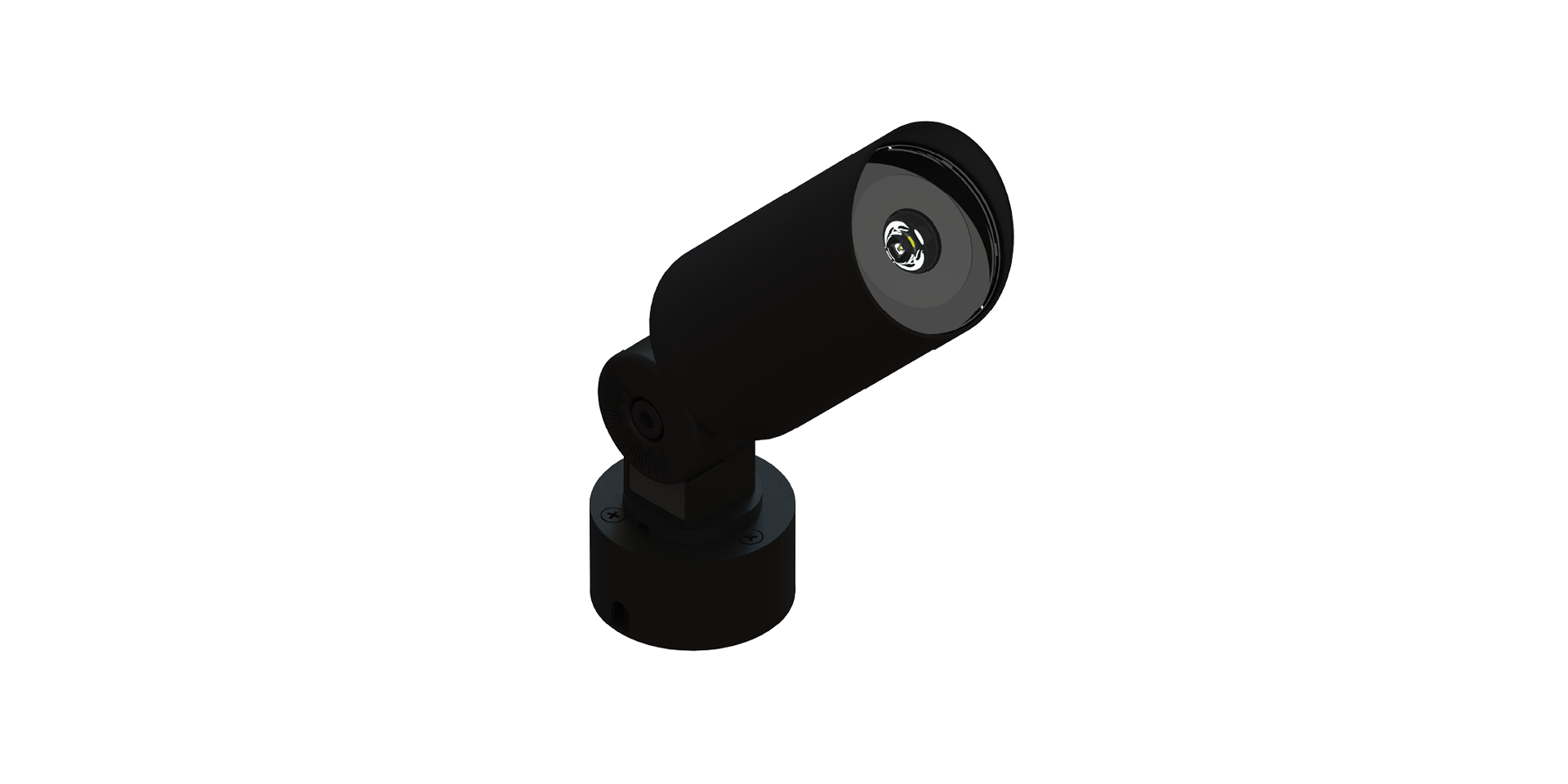

BELLA-1
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
|---|---|---|---|---|
| BELLA-1 | WW-NW-CW | 220-240V AC | 4 | 310 |
| BELLA-1-DMX | RGB | 48V DC | 4 | - |
| BELLA-1-DMX | RGBW | 48V DC | 4 | - |
*Power and Lumen values provided are based off of a "Cold White (CW) LED"
Key Features
ELECTROMECHANICAL SPECIFICATIONS• Professional LED light source architectural spotlight
• Optical solutions with 5 different beam angles
• MuliColor and FullColor LED Technology
• Electrostatic powder-coated aluminum body
• Operating temperature: -20 to +40 °C
• Glare shield option
• Optional honeycomb louver
• 5 different mounting options
• Adjustable angled mounting bracket
• Sleek and aesthetic design
• Optical solutions with 5 different beam angles
• MuliColor and FullColor LED Technology
• Electrostatic powder-coated aluminum body
• Operating temperature: -20 to +40 °C
• Glare shield option
• Optional honeycomb louver
• 5 different mounting options
• Adjustable angled mounting bracket
• Sleek and aesthetic design
Light Color Options
| WW:Warm White | 2700K | R:Red | 625nm |  |
RGB | ||
| WW:Warm White | 3000K | G:Green | 525nm |  |
RGBW | ||
| NW:Natural White | 4000K | B:Blue | 465nm | ||||
| CW:Cold White | 5700K | ||||||
| CW:Cold White | 6500K |
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| RGB | |
||||||
| RGB/W |
|
||||||
Lens Options
XN: EXTRA NARROW ANGLE
N: NARROW ANGLE
M: MEDIUM ANGLE
W: WIDE ANGLE
E: ELLIPTICAL ANGLED
Mounting
GROUND
STAKE
POLE
PENDANT
Upper Piece Options
GLARE SHIELD
WITHOUT GLARE SHIELD
Housing Color Options
RAL9005
RAL9016
RAL7016
Product Diagrams

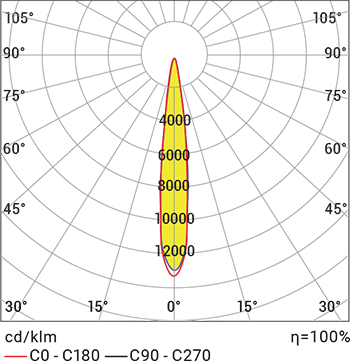

BELLA 1 POLAR

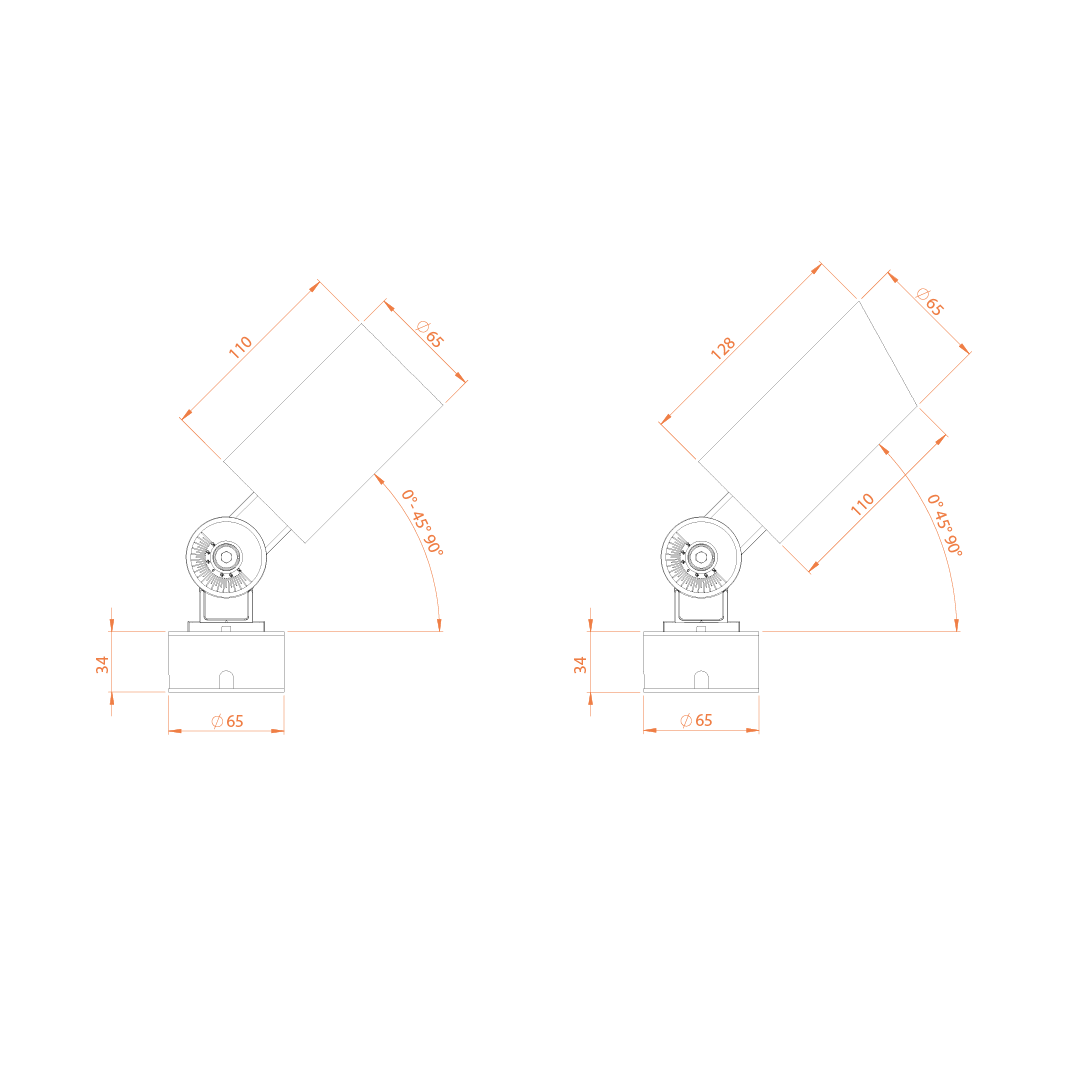

Technical Draw
Documents
