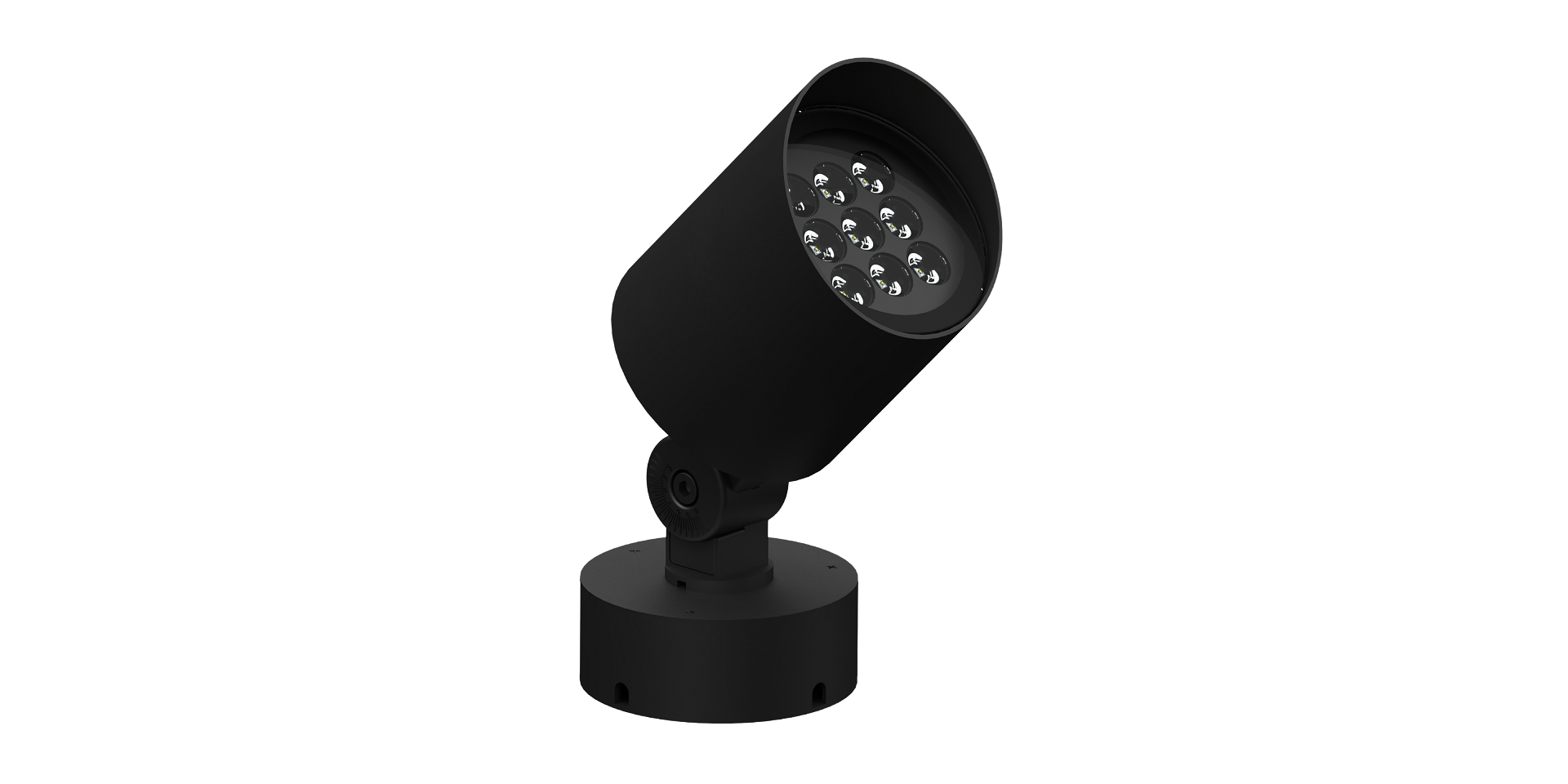

BELLA-3
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
|---|---|---|---|---|
| BELLA-3 | WW-NW-CW | 220-240V AC | 20 | 1.700 |
| BELLA-3-DMX | RGBW | 48V DC | 20 | - |
*Power and Lumen values provided are based off of a "Cold White (CW) LED"
Key Features
ELECTROMECHANICAL SPECIFICATIONS• Professional LED light source architectural
spotlight luminaire
• Optical solution with lens and reflector in
5 different angles
• MultiColor and FullColor Technology
• Electrostatic powder-coated aluminum injection body
• -20 to +40 °C Operating temperature
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm |  |
RGB | ||
| NW:Natural White | 4000K | G:Green | 525nm |  |
RGBW | ||
| CW:Cold White | 6500K | B:Blue | 465nm |
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| RGB | |
||||||
| RGBA/W |
 |
||||||
Lens Options
XN: EXTRA NARROW ANGLE
N: NARROW ANGLE
M: MEDIUM ANGLE
W: WIDE ANGLE
Mounting
GROUND
STAKE
POLE
WALL
PENDANT
RAIL
Upper Piece Options
WITH GLARE SHIELD
WITHOUT GLARE SHIELD
Housing Color Options
RAL9005

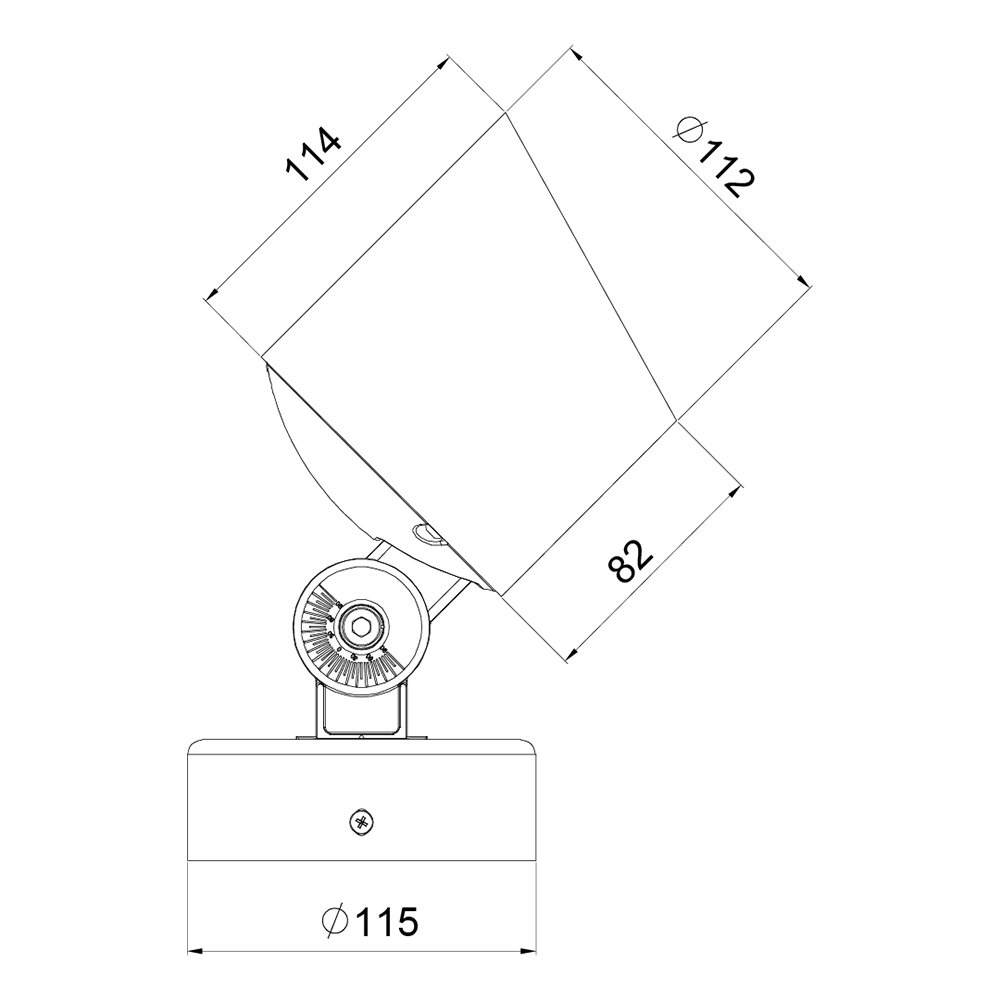

Technical Draw
Documents
