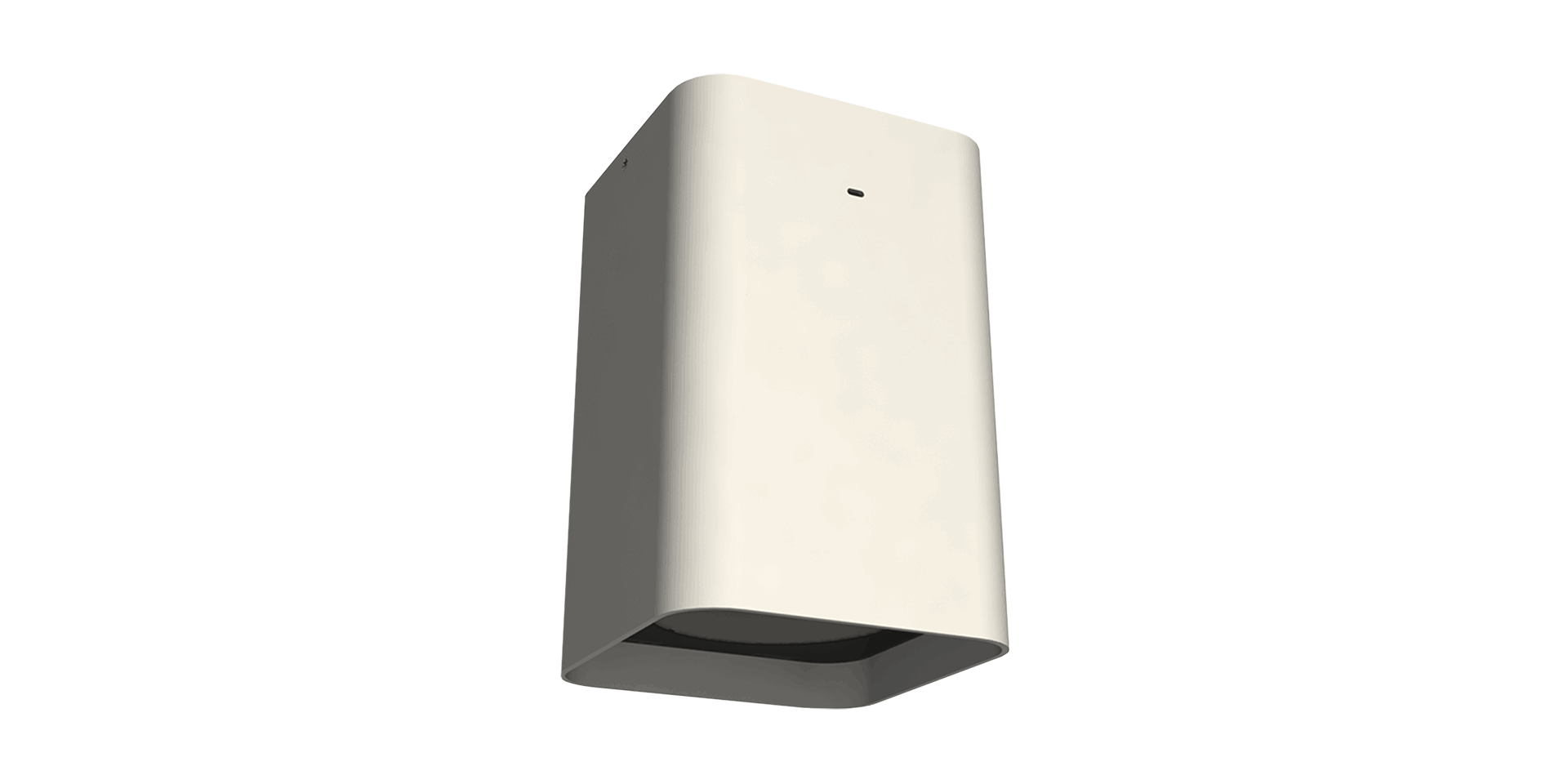

DAMLA
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| PRODUCT CODE | LIGHT COLOR | INPUT VOLTAGE (v) | POWER (w) | LUMINOUS FLUX (lm) | DIMENSIONS (AxBxC) (mm) | WEIGHT (KG) |
|---|---|---|---|---|---|---|
| DAMLA75 | WW-NW-CW | 220-240V AC | 14 | 1.410 | 75x75x123 | 0,9 |
| DAMLA100 | WW-NW-CW | 220-240V AC | 26 | 2.900 | 100x100x155 | 1,4 |
| DAMLA150 | WW-NW-CW | 220-240V AC | 40 | 4.630 | 150x150x225 | 2,7 |
*Power and Lumen values provided are based off of a "natural white (NW) LED"
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum body
• Printed tempered glass cover
• Internal drive
• Suitable for indoor and outdoor
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
*Wide Angle option suitable for DAMLA150
Upper Piece Options
00. STANDARD
01. LIGHT DIFFUSER HONEYCOMB

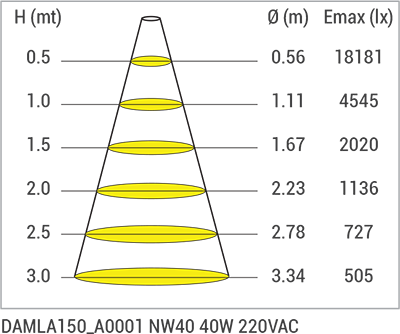

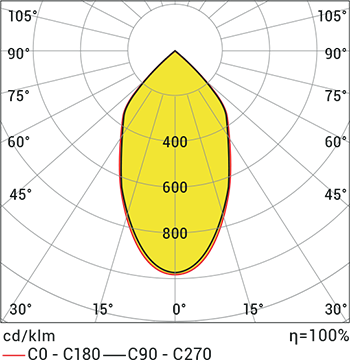

Product Diagrams

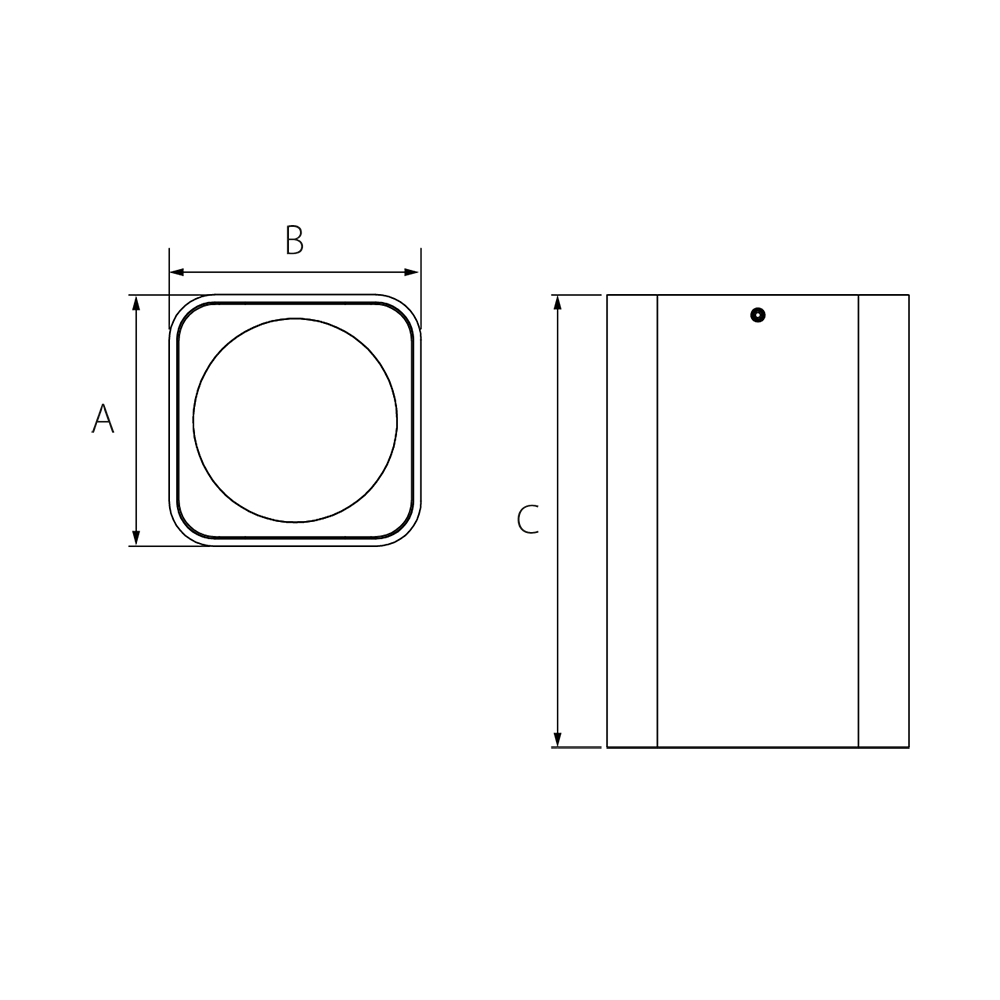

Technical Draw
Documents
