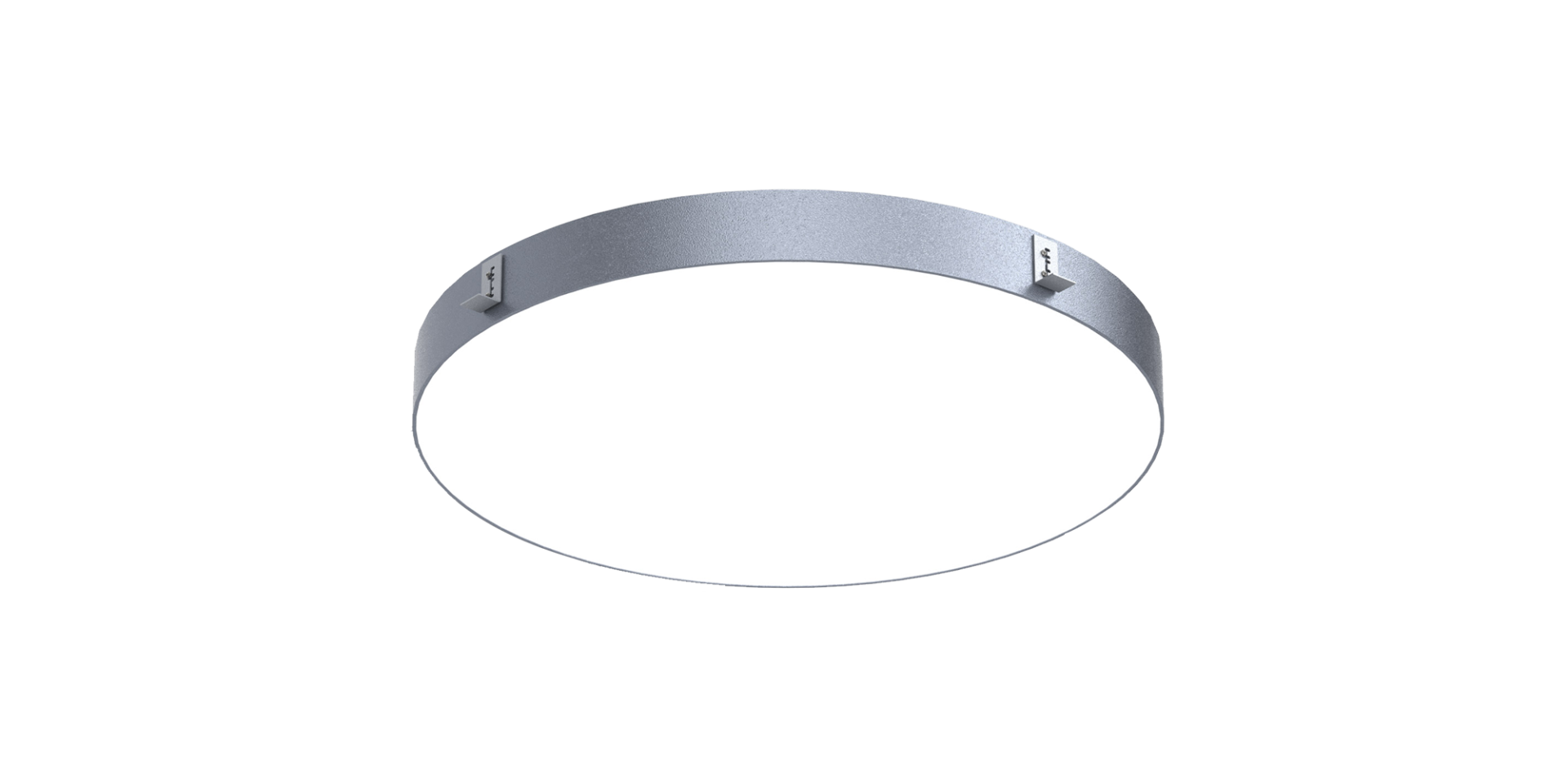

DRMG

Description

Product & Power Options

Product Name	Light Color	Input Voltage (V)	Power (W)	Product Light Color Options	Luminous Flux (lm)	Diameter (B) (cm)	Product Weight (kg/mt)
DRMG50	WW-NW-CW	24V DC	50	Plexiglass	3.750	50	6,2
DRMG60	WW-NW-CW	24V DC	75	Plexiglass	5.625	60	6,4
DRMG60	WW-NW-CW	24V DC	100	Plexiglass	7.500	60	6,4
DRMG90	WW-NW-CW	24V DC	50	Plexiglass	3.750	90	9,5
DRMG90	WW-NW-CW	24V DC	100	Plexiglass	7.500	90	9,5
DRMG120	WW-NW-CW	24V DC	100	Plexiglass	8.000	120	12,6
DRMG120	WW-NW-CW	24V DC	100	PVC strech membrane	8.000	120	12,6
DRMG150	WW-NW-CW	24V DC	130	PVC strech membrane	10.400	150	11,5
DRMG150	WW-NW-CW	24V DC	260	PVC strech membrane	20.800	150	11,5
DRMG180	WW-NW-CW	24V DC	200	PVC strech membrane	16.000	180	12,6
DRMG180	WW-NW-CW	24V DC	400	PVC strech membrane	32.000	180	12,6

*Power and Lumen values provided are based off of a “cold white (CW) LED”.

Key Features

ELECTROMECHANICAL SPECIFICATIONS

• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexiglass diffused cover.
• Suitable for pendant mounting.
• Product length standards are; 90cm, 120cm, 150cm and 180cm.
• 150cm and 180 cm diameters PVC stretch membrane only
• Various sizes are applicable.
• Plexy glass is used for the products up to 120 diameters.
