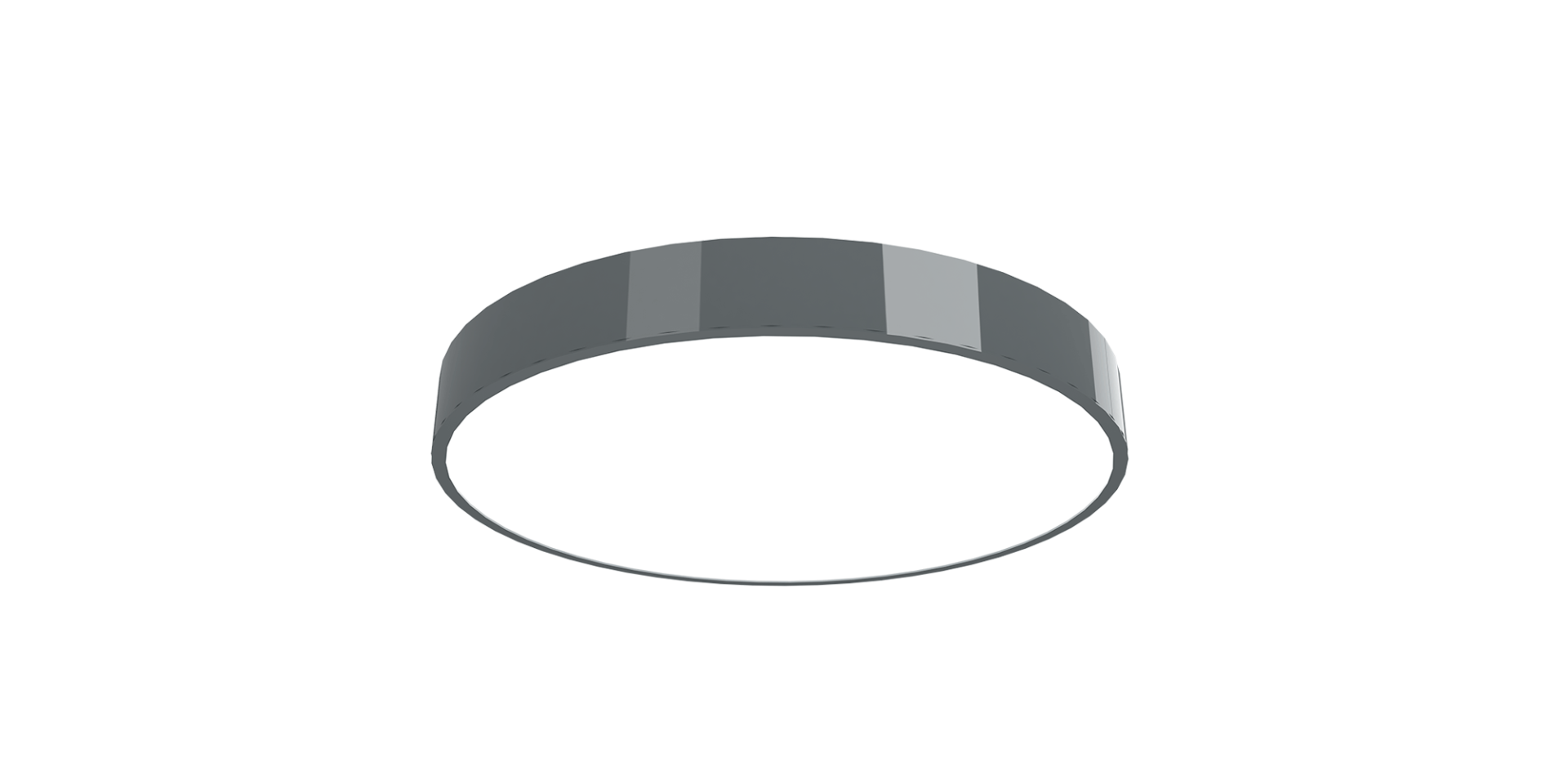

DRMS

Description

Product & Power Options

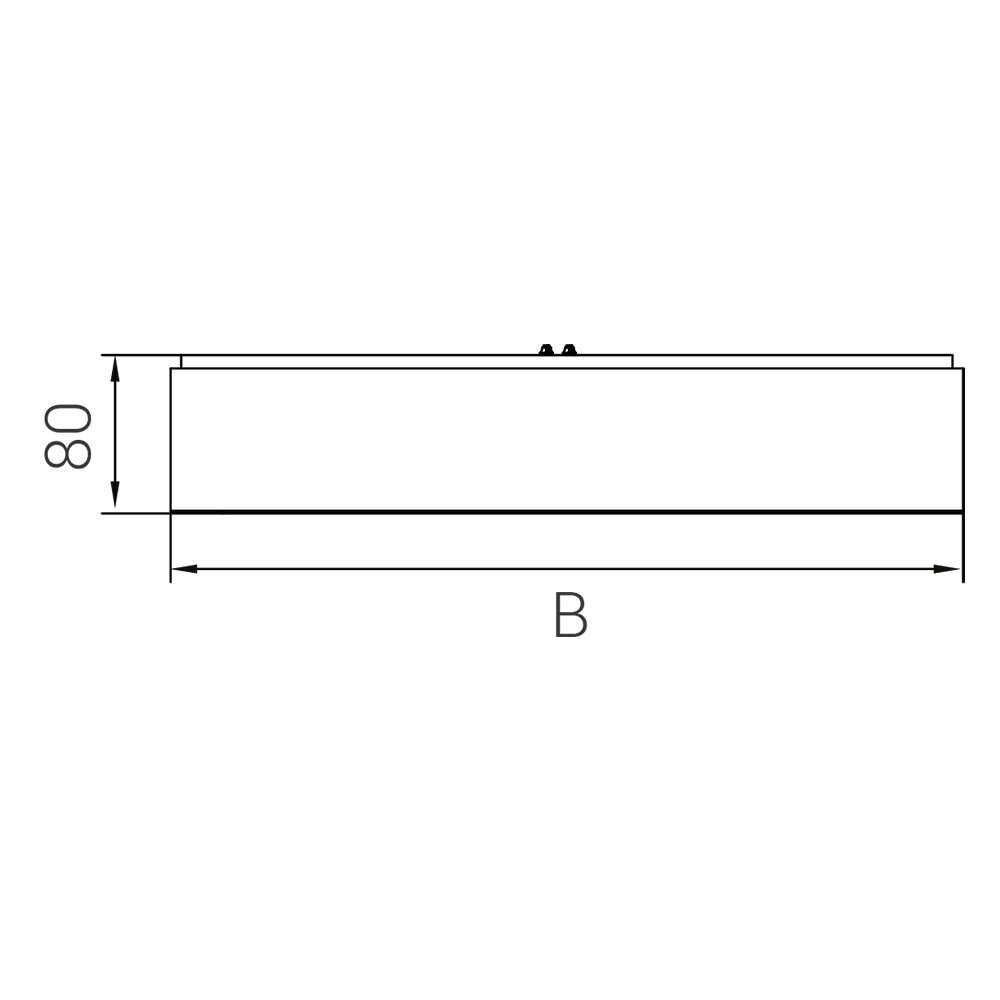

Product Name	Light Color	Input Voltage (V)	Power (W)	Product Light Color Options	Luminous Flux (lm)	Diameter (B) (cm)	Product Weight (kg/mt)
DRMS30	WW-NW-CW	24V DC	20	Plexiglass	1500	30	3,8
DRMS40	WW-NW-CW	24V DC	40	Plexiglass	3000	40	4,2
DRMS50	WW-NW-CW	24V DC	60	Plexiglass	4500	50	5,3
DRMS60	WW-NW-CW	24V DC	80	Plexiglass	6000	60	6,4
DRMS70	WW-NW-CW	24V DC	110	Plexiglass	10125	70	7,5
DRMS90	WW-NW-CW	24V DC	145	Plexiglass	10875	90	9,5
DRMS90	WW-NW-CW	24V DC	100	PVC strech membrane	8000	90	9,5
DRMS120	WW-NW-CW	24V DC	100	PVC strech membrane	8000	120	12,6
DRMS120	WW-NW-CW	24V DC	200	PVC strech membrane	16000	120	12,6
DRMS150	WW-NW-CW	24V DC	130	PVC strech membrane	10400	150	15,8
DRMS180	WW-NW-CW	24V DC	200	PVC strech membrane	16000	180	18,9

*Power and Lumen values provided are based off of a cold white (CW) LED.

Key Features

ELECTROMECHANICAL SPECIFICATIONS

• Electrostatic powder coating or anodized aluminum housing.
• High efficient homogeneous light by plexy glass diffused cover
• Suitable for pendant mounting
• Plexy glass is used for the products up to 100 diameters.
• 120cm, 150cm and 180 cm PVC diameters stretch membrane
