PNCI
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|
| PNCI | 220-240V AC | 15 | 1353 | 300x300 | 1,1 |
| PNCI | 220-240V AC | 26 | 3507 | 600x600 | 3,2 |
| PNCI | 220-240V AC | 34 | 4175 | 600x600 | 3,2 |
| PNCI | 220-240V AC | 38 | 4843 | 600x600 | 3,2 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic painted DKP body.
• Electrostatic painted DKP frame.
• High efficiency low-glare (UGR19) homogeneous light diffuser.
• Efficiency exceeding 100lm/W with backlight technology
• Suitable for recessed use (Clip in)
Light Color Options
System Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||

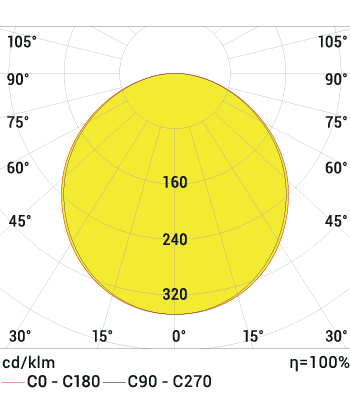

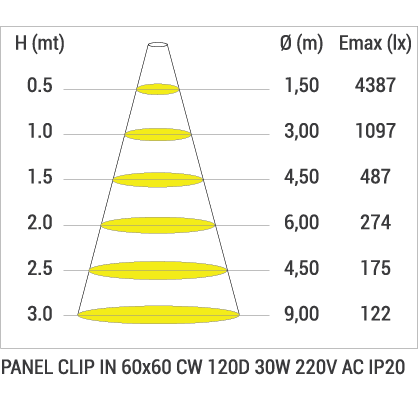

Product Diagrams

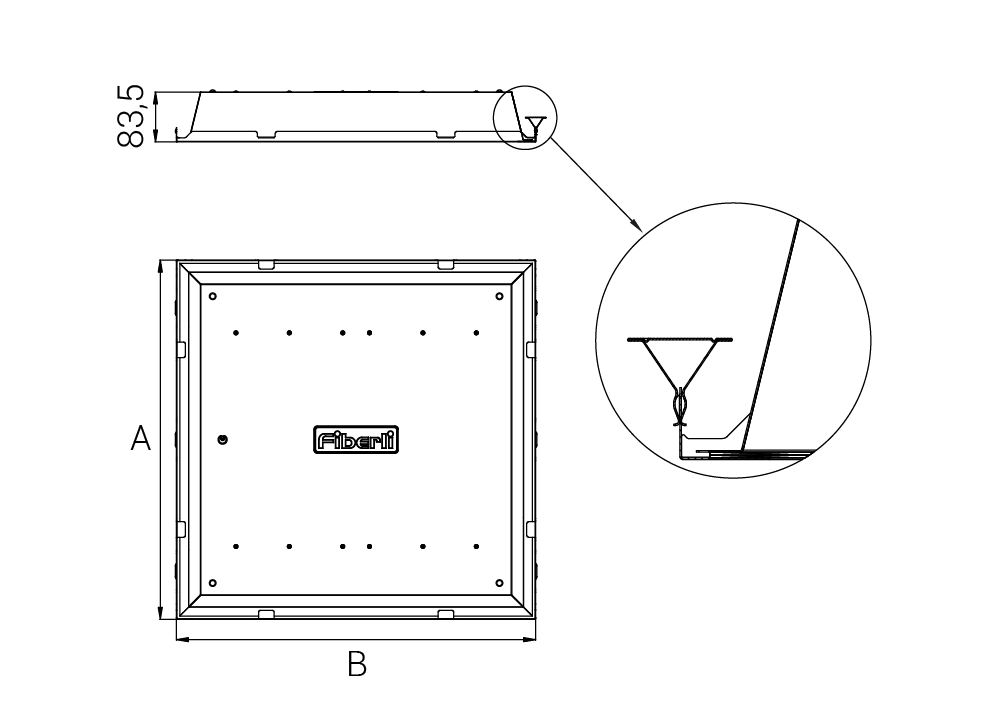

Technical Draw
Documents
