Description
Product & Power Options
| PRODUCT NAME | LIGHT COLOR | INPUT VOLTAGE (V) | POWER (W) | LUMINOUS FLUX (lm) | DIMENSIONS (AxB) (mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| YONJA50 | WW-NW | 220-240V AC | 10 | 850 | Ø55x110 | 0,4 |
| YONJA85 | WW-NW | 220-240V AC | 20 | 1.800 | Ø90x185 | 0,5 |
| YONJA110 | WW-NW | 220-240V AC | 30 | 2.550 | Ø115x200 | 0,8 |
| YONJA110 | WW-NW | 220-240V AC | 40 | 3.200 | Ø115x200 | 0,85 |
*Power and Lumen values provided are based off of a "natural white (NW) LED"
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder painted aluminium body
• High efficiency aluminum reflector
• Compact connection accessories
• Architectural simple design
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
*W option suitable for Yonja110
Upper Piece Options
35. BLACK REFLECTOR
36. LIGHT DIFFUSER HONEYCOMB
*Products with black reflector
Housing Color Options
RAL9005
RAL9016

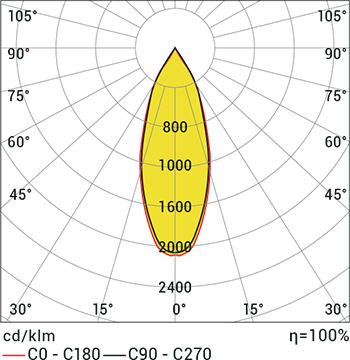

Product Diagrams

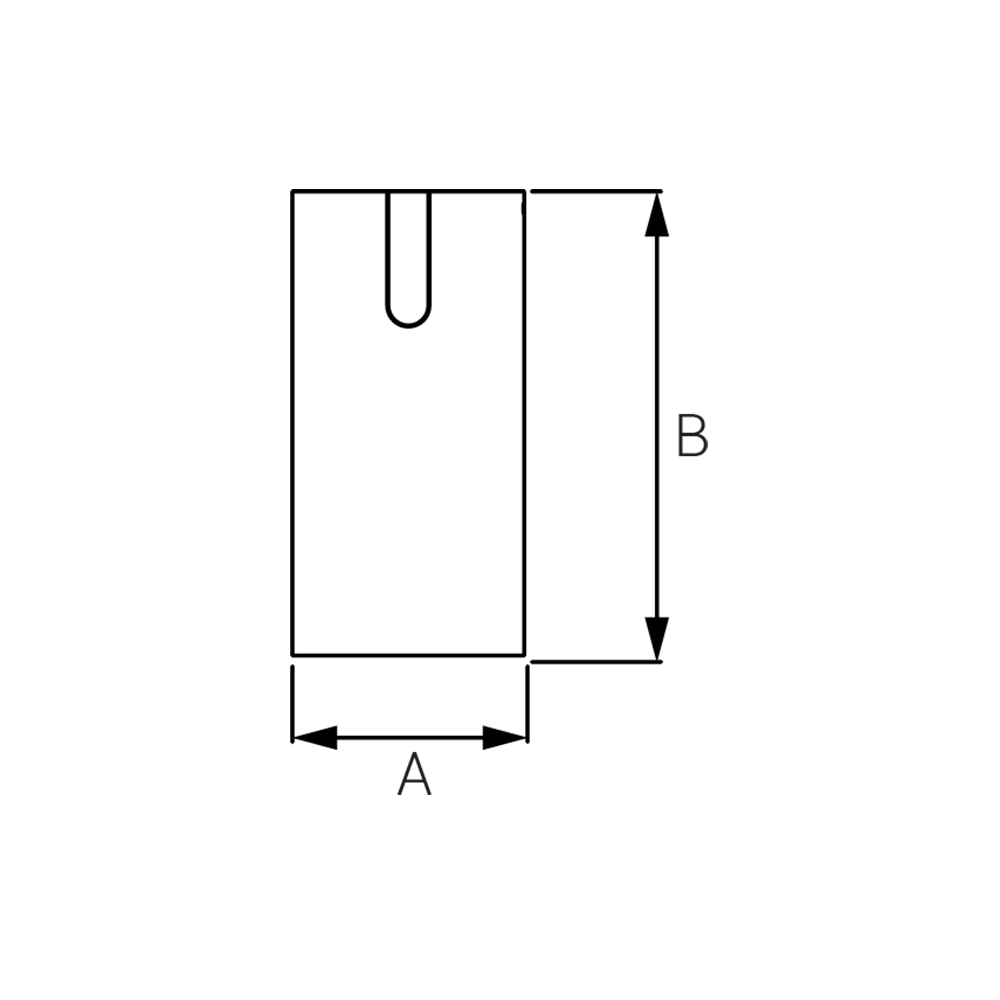

Technical Draw
Documents
Projects
