Description
Product & Power Options
| PRODUCT CODE | LIGHT COLOR | INPUT VOLTAGE | POWER (W) | LUMINOUS FLUX (lm) | DIMENSIONS (L)(mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| BERT40 | WW-NW-CW | 220-240V AC | 45 | 5.580 | 415 | 2,9 |
| BERT40 | WW-NW-CW | 220-240V AC | 64 | 7.703 | 415 | 2,9 |
| BERT80 | WW-NW-CW | 220-240V AC | 110 | 12.980 | 815 | 4,8 |
| BERT80 | WW-NW-CW | 220-240V AC | 134 | 15.424 | 815 | 4,8 |
| BERT120 | WW-NW-CW | 220-240V AC | 166 | 21.365 | 1215 | 8,8 |
| BERT120 | WW-NW-CW | 220-240V AC | 200 | 25.200 | 1215 | 8,8 |
| BERT160 | WW-NW-CW | 220-240V AC | 248 | 31.250 | 1615 | 10,4 |
*Power and lumen values provided are based off of a cold white (NW) LED
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extrusion profile body
• Suitable for hygienic environments, dust-free body design
• UV protective PVC side cover
• Tempered glass with optional safety film
• High efficiency optical lens
• Optional stainless steel mounting clip
Light Color Options
Driver Options
Control System Options
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
Mounting
M01. SURFACE CABLE TRAY
M02. PENDANT MOUNTING
**For M02 option rope not included
M03. BUSBAR HANGER
Connection Options
01. CABLE
02: CABLE + IP67 SOCKET

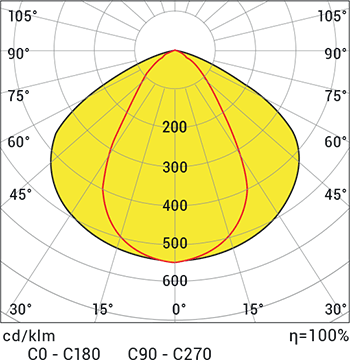

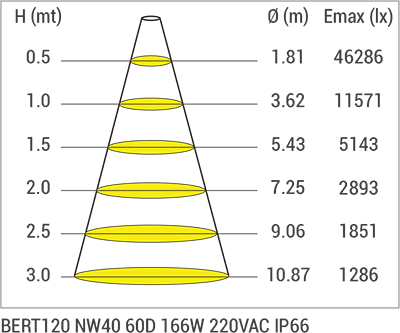

Product Diagrams

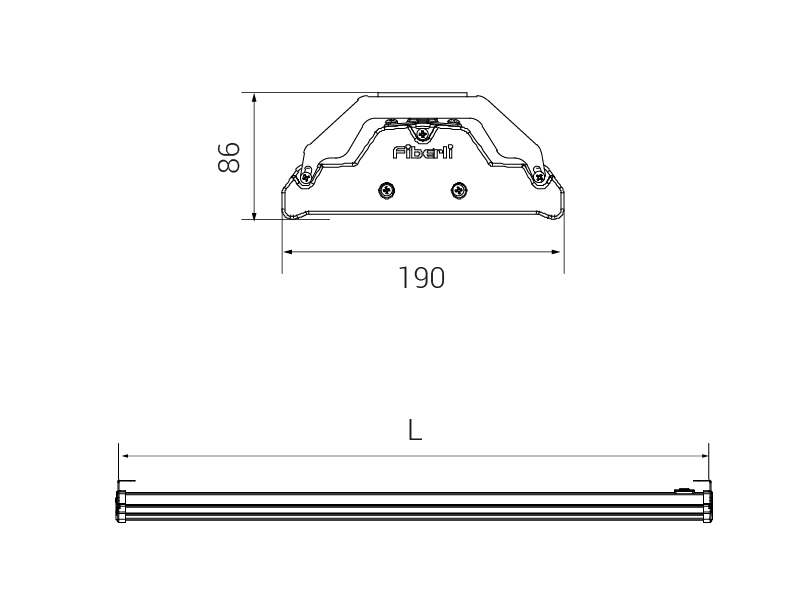

Technical Draw
