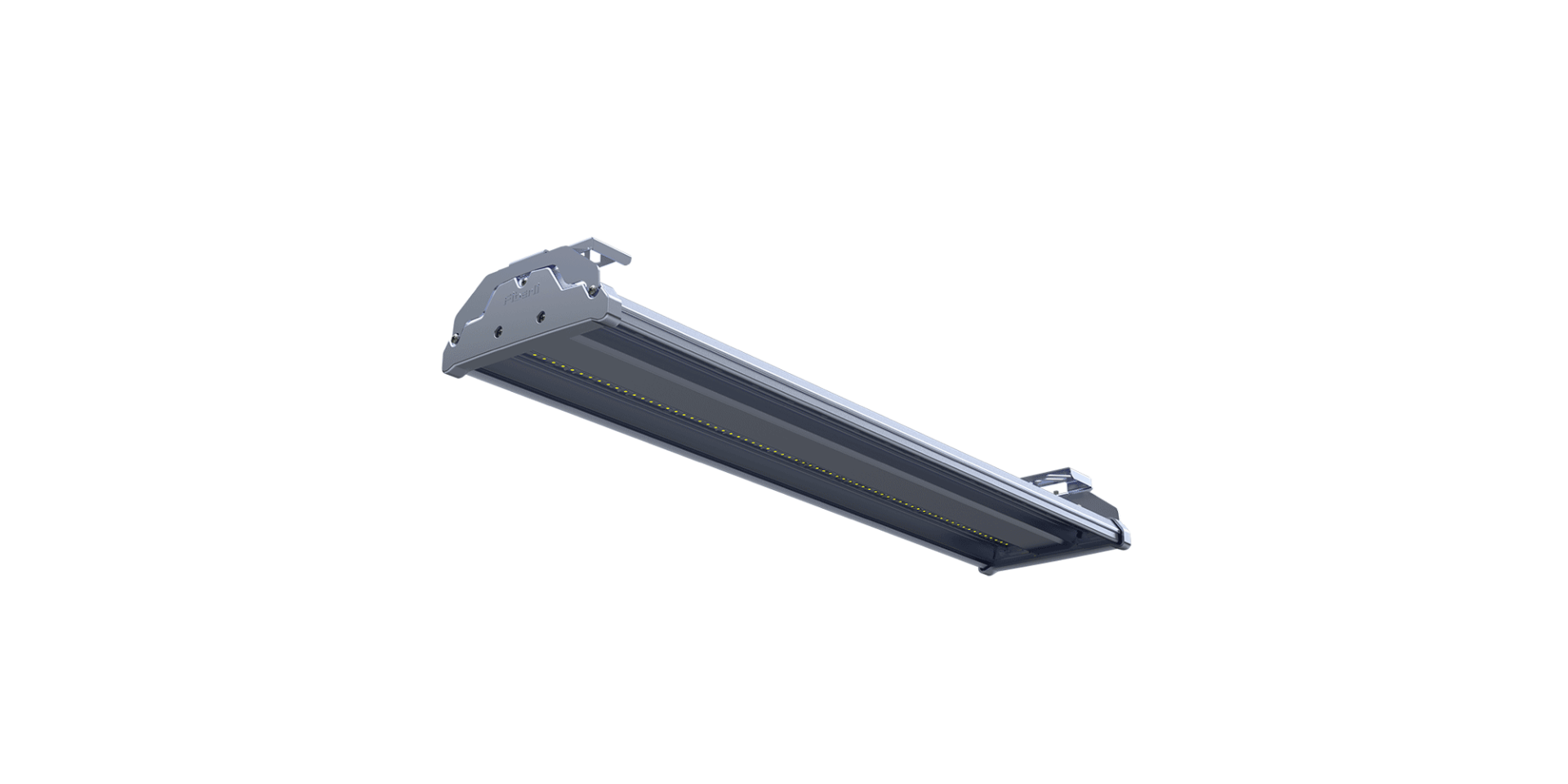

BERT PRO
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| PRODUCT CODE | LIGHT COLOR | INPUT VOLTAGE | POWER (W) | LUMINOUS FLUX (lm) | DIMENSIONS (L)(mm) | WEIGHT (kg) |
|---|---|---|---|---|---|---|
| BERT40-PRO | WW-NW-CW | 220-240V AC | 35 | 5.075 | 415 | 2,9 |
| BERT40-PRO | WW-NW-CW | 220-240V AC | 52 | 7.310 | 415 | 2,9 |
| BERT80-PRO | WW-NW-CW | 220-240V AC | 65 | 10.270 | 815 | 4,8 |
| BERT80-PRO | WW-NW-CW | 220-240V AC | 80 | 12.515 | 815 | 4,8 |
| BERT120-PRO | WW-NW-CW | 220-240V AC | 90 | 14.310 | 1215 | 8,8 |
| BERT120-PRO | WW-NW-CW | 220-240V AC | 110 | 17.135 | 1215 | 8,8 |
| BERT160-PRO | WW-NW-CW | 220-240V AC | 134 | 21.010 | 1615 | 10,4 |
*Power and lumen values provided are based off of a cold white (CW) LED
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• High efficiency optical design (up to 160 lm/W)
• Anodized aluminum extrusion profile body
• Suitable for hygienic environments, dust-free body design
• UV protective PVC side cover
• Tempered glass with optional safety film
• High efficiency optical lens
• Optional stainless steel mounting clip
Light Color Options
Driver Options
Control System Options
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
Mounting
M01. SURFACE CABLE TRAY
M02. PENDANT MOUNTING
**For M02 option rope not included
M03. BUSBAR HANGER
Connection Options
01. CABLE
02: CABLE + IP67 SOCKET
Upper Piece Options
T: Tempered Glass
T+F: Tempered Glass with Safety Film

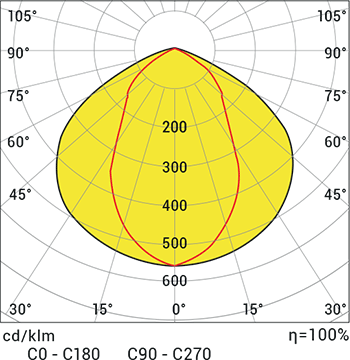

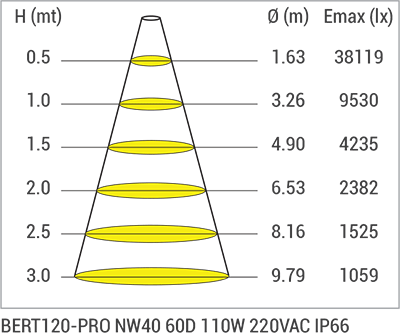

Product Diagrams

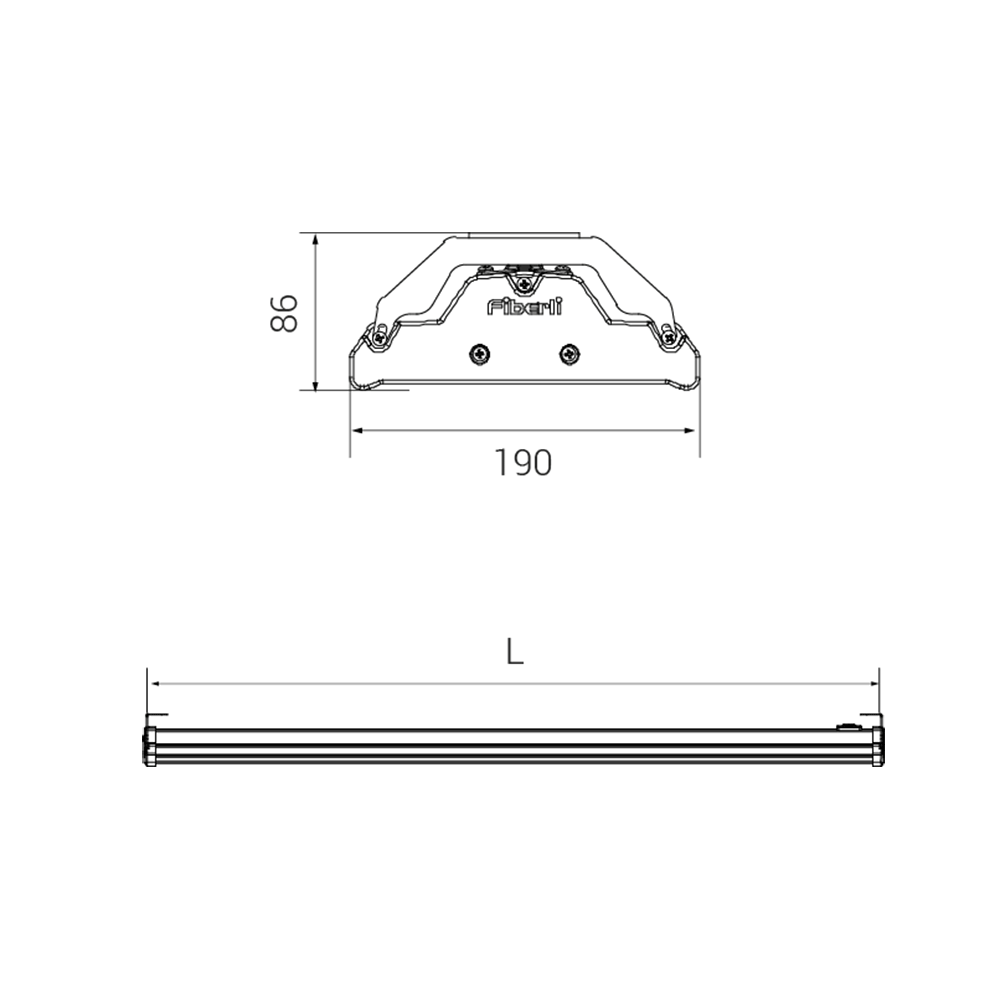

Technical Draw
