CRAKE
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Code | INPUT VOLTAGE | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|
| CRAKE 1 | 220-240V AC | 70 | 12.047 | 2,2 |
| CRAKE 1 | 220-240V AC | 110 | 17.730 | 2,2 |
*Power and Lumen values provided are based off of a cold white (CW) LED
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• With overload, high temperature, high voltage protection industrial type led driver
• Efficiency up to 174 lm / W
• Electrostatic painted aluminum injection body
• Optional stainless steel mounting clip and hanger kit
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
XW. WITHOUT LENS
Mounting
M01. CABLE TRAYSURFACE MOUNTING
M02. PENDANT MOUNTING
M03. BUSBAR HANGER

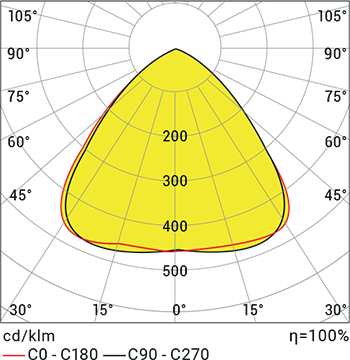

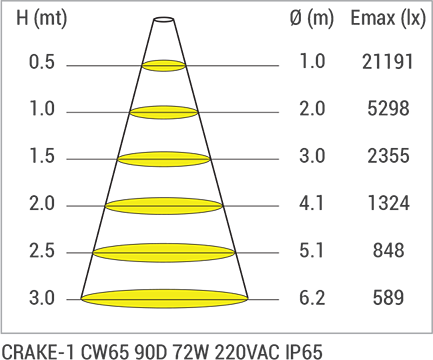

Product Diagrams

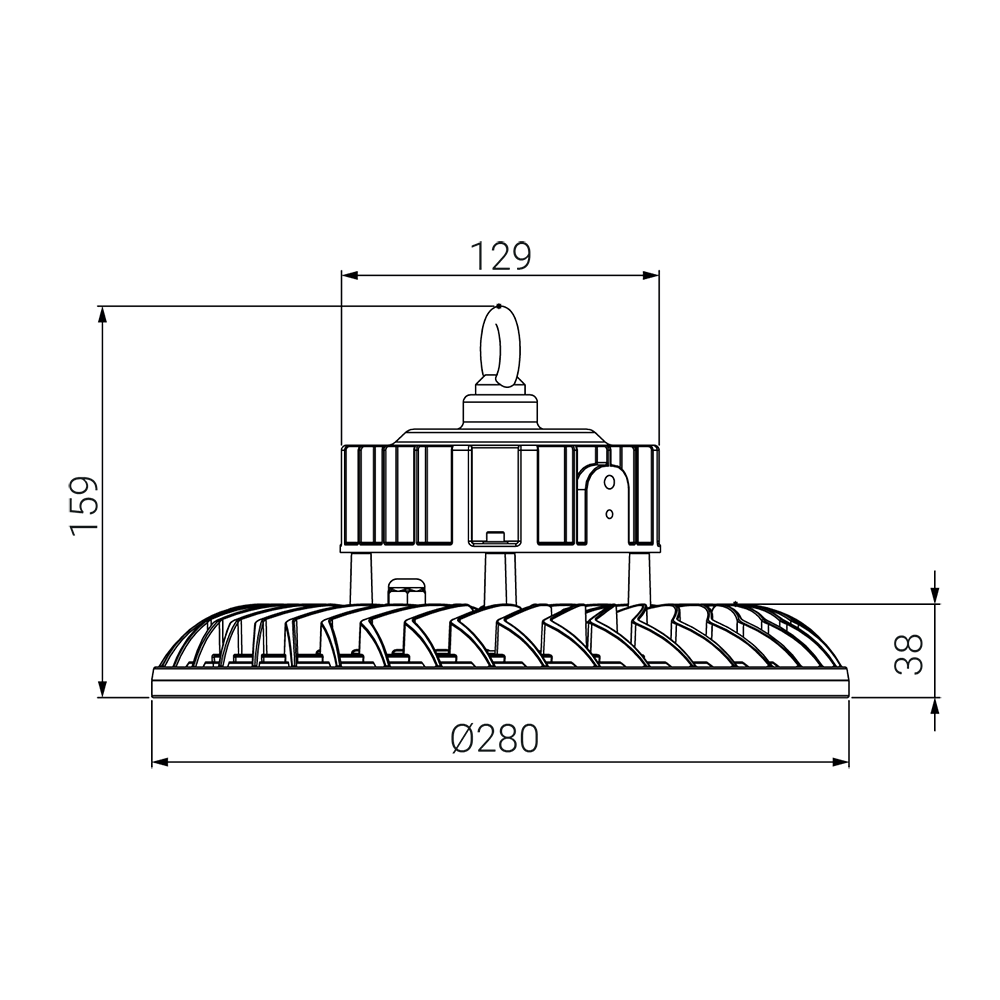

Technical Draw
Documents
