RODA
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Lenght (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| RODA60 | WW-NW-CW | 220-240V AC | 22 | 2.440 | 624 | 0,7 |
| RODA120 | WW-NW-CW | 220-240V AC | 29 | 3.210 | 1.224 | 1,3 |
| RODA120 | WW-NW-CW | 220-240V AC | 40 | 4.440 | 1.224 | 1,3 |
| RODA160 | WW-NW-CW | 220-240V AC | 55 | 6.105 | 1.624 | 2,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• High efficiency waterproof LED luminaire
• Extuded PC body
• UV protected PVC end caps
• High efficiency diffuser with homogeneous light output
• Stainless fittings
• Optional DALI and Emergency Kit
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||

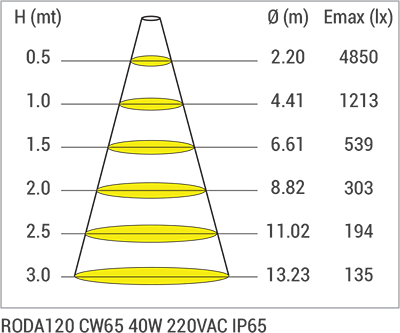

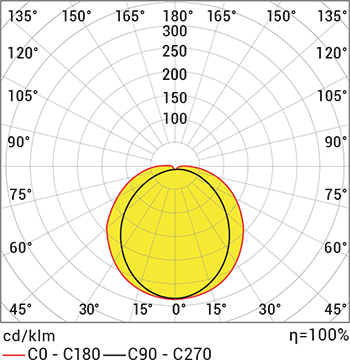

Product Diagrams

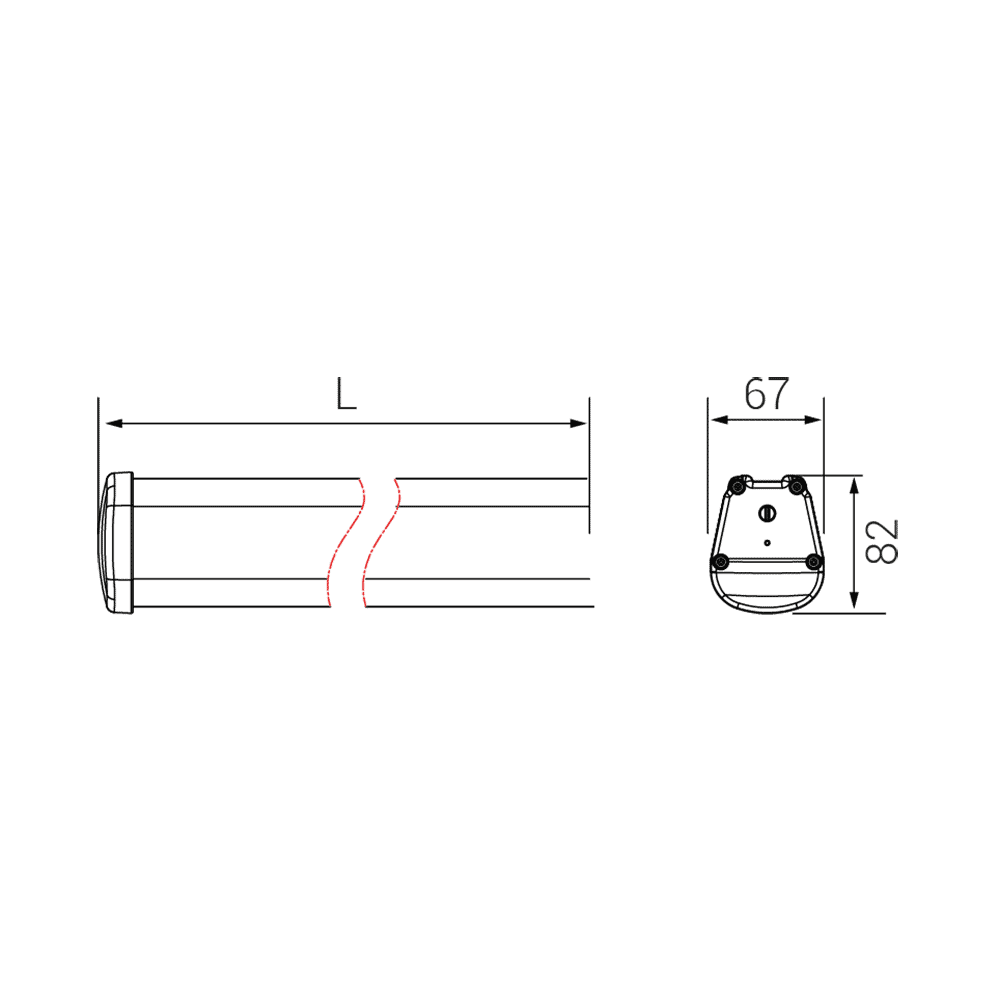

Technical Draw
Documents
