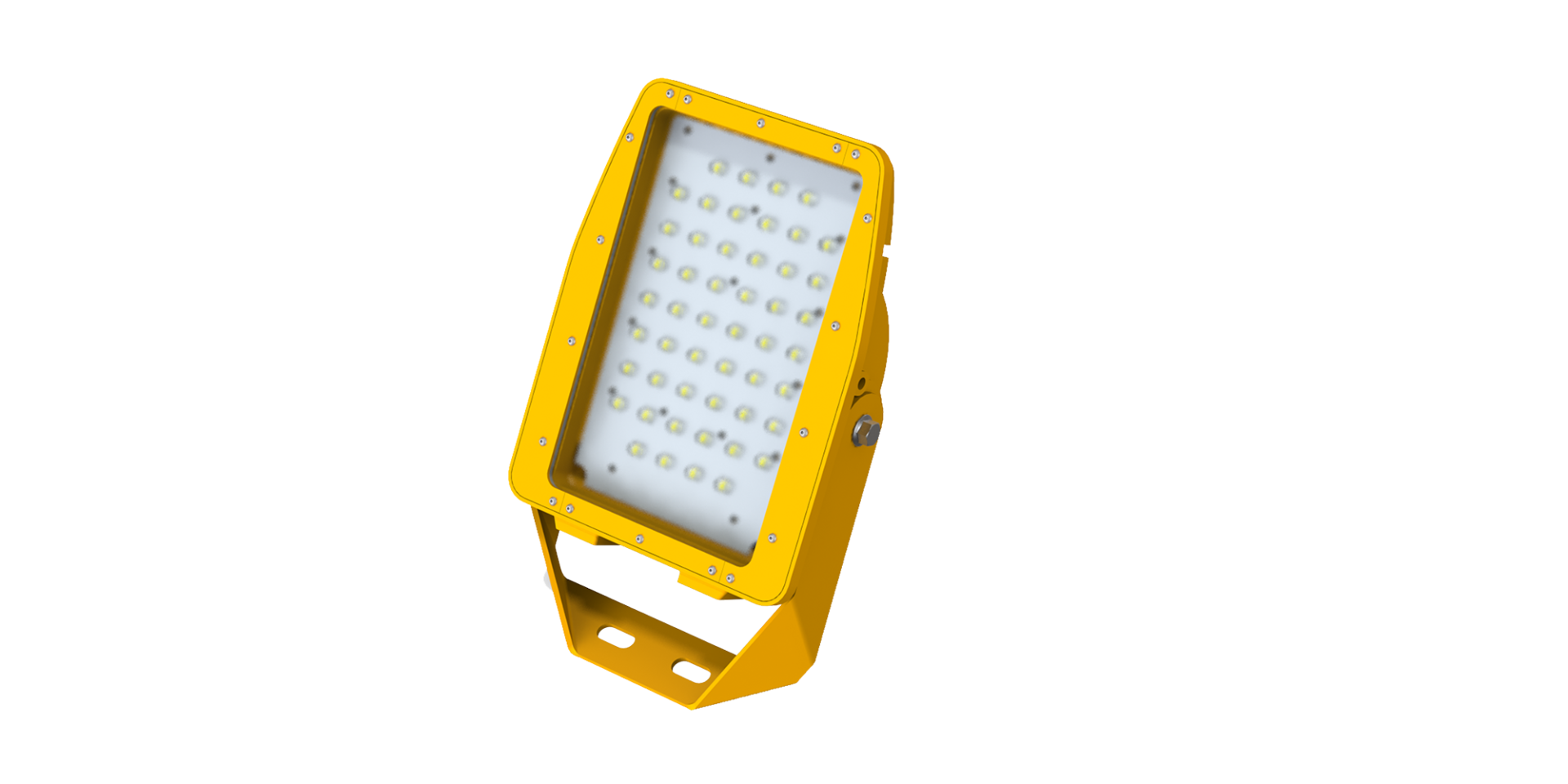

WH-Ex
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| WH136-Ex | WW-NW-CW | 220-240V AC | 65 | 7.100 | 7,8 |
| WH148-Ex | WW-NW-CW | 220-240V AC | 85 | 9.260 | 7,8 |
| WH154-Ex | WW-NW-CW | 220-240V AC | 130 | 12.787 | 7,8 |
| WH260-Ex | WW-NW-CW | 220-240V AC | 150 | 16.500 | 10,7 |
| WH284-Ex | WW-NW-CW | 220-240V AC | 210 | 23.100 | 10,7 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coating aluminum injection body
• 3mm, tempered luminaire glass
• Aluminum injection side cover
• Stainless connectors
• Gas explosion protection: ll 3G Ex nR llC T4 Gc
• Dust explosion protection: ll 2D Ex tb lllC T95° CMax Db
• Conformity to standards: EN 60079-0: 2013, EN 60079-15: 2010, EN 60079-31: 2014
• Certificate number: IEP 15 ATEX 0349
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
E2: ELLIPTICAL ANGLED (90×120°)
E1: ELLIPTICAL ANGLED (60×120°)
Mounting
20. STANDART STAND
21. DIRECT MOUNTING KIT OPTIONAL
Extension pieces at any desired length are optional
Connection Options
01. CABLE
02. IP SOCKET
Housing Color Options
RAL1003
RAL9016
RAL9007

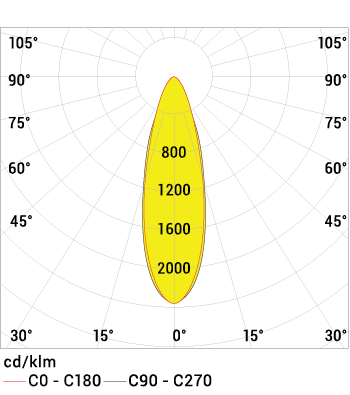

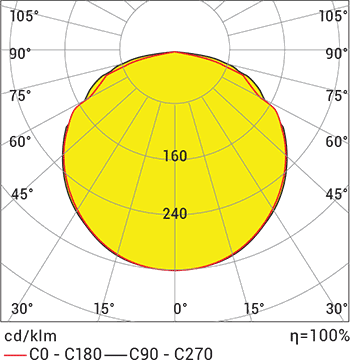

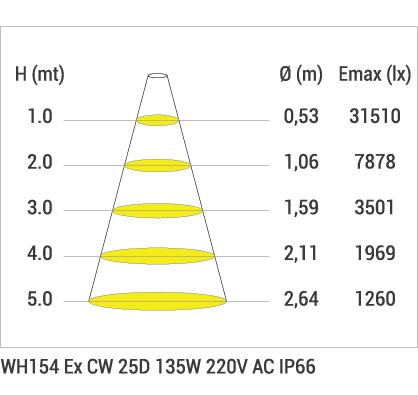

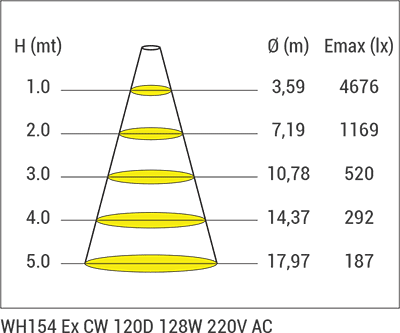

Product Diagrams

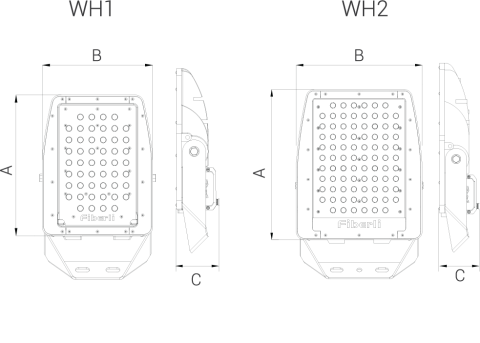

Technical Draw
Documents
