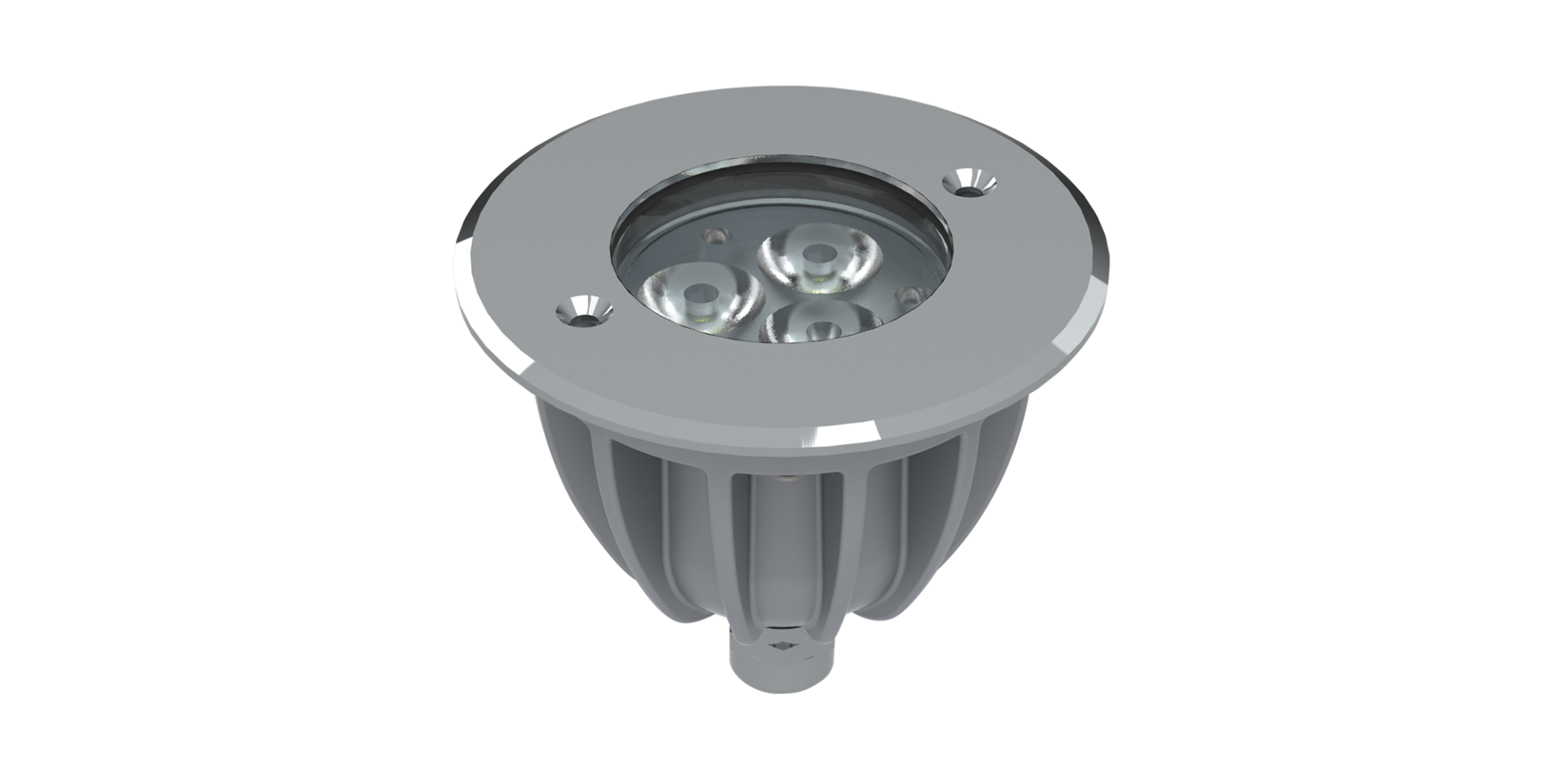

CF1
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Dimensions | Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| CF103 | WW-NW-CW | 220-240V AC | 3 | 4 | 480 | Ø95x60 | 1,3 |
| CF103 | WW-NW-CW | 12-24V DC | 3 | 4 | 425 | Ø95x60 | 1,1 |
| CF103 | RGB | 7,5V DC | 3 | 8 | - | Ø95x60 | 1,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• 316 L chrome body and chrome spot frame
• Electrostatic powder coated aluminum injection body
• 8 mm tempered glass
• Plastic injection installation box
• Underwater cable joint
• H07RNF rubber cable
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
Control System Options
| Color Type | RC | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|---|
| WW-NW-CW | ||||||||
| R,G,B,A | ||||||||
| RGB | |
|||||||
| RGBA/W |
  |
|||||||
| RGB DMX |
 |
|||||||
| WHITE DMX |
 |
|||||||
*IP65 is not available
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
|
||||||
| RGB DMX |
|
||||||
| WHITE DMX |
|
||||||
| Product Code | Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| CF103 | 7,5 | PVM | - | 4x | - |
| 12 | PVM | 2x | - | - | |
| 12-24 | ON/OFF | 2x | - | - | |
Lens Options
M. MEDIUM ANGLE
MA. MEDIUM ASYMMETRICAL ANGLE
ME. MEDIUM ELLIPTICAL
NA. NARROW ASYMMETRICAL ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Upper Piece Options
21. ROUND SATIN NICKEL
23. SQUARE SATIN NICKEL
