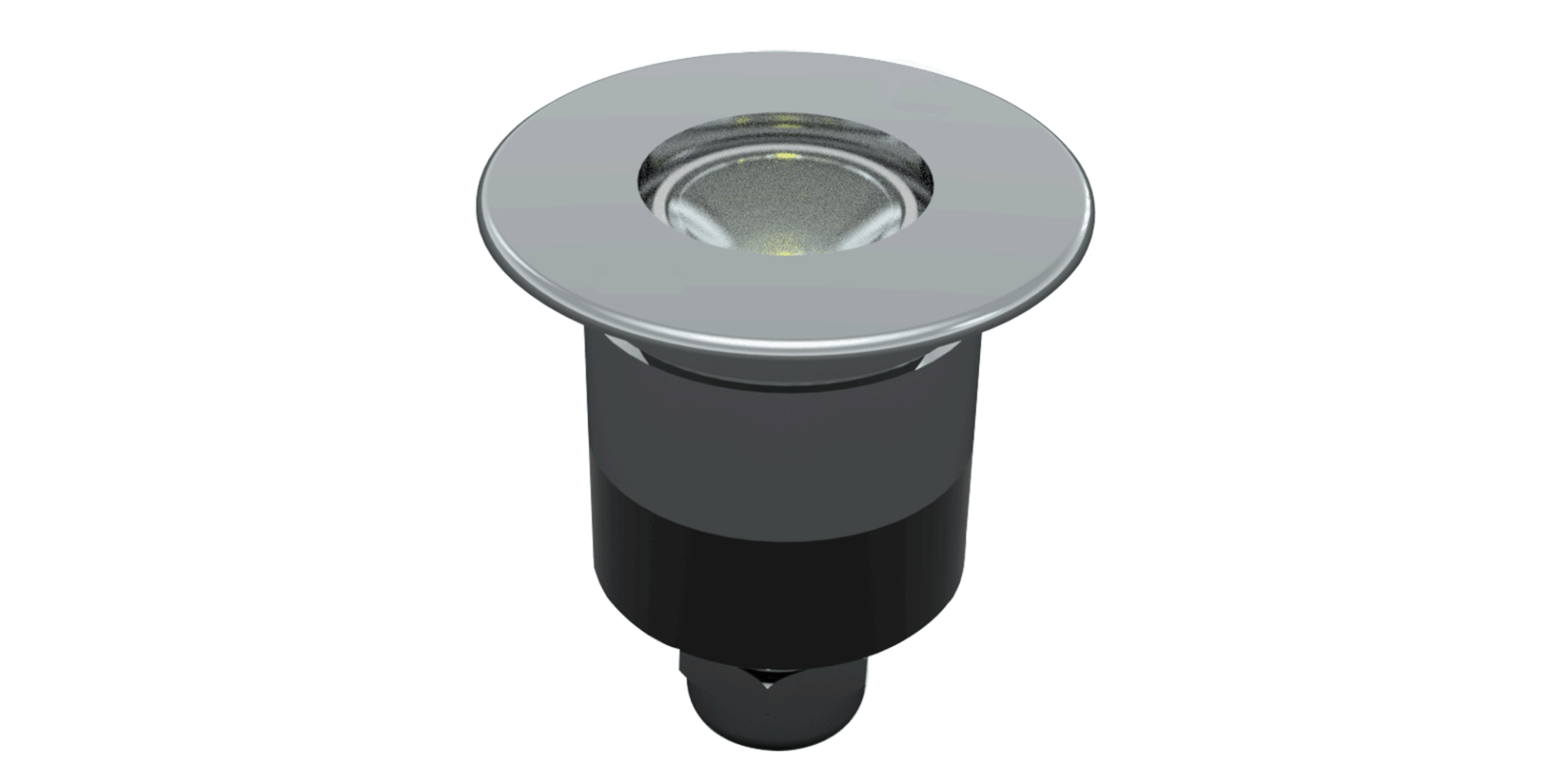

CF500
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux(lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| CF500 | WW-NW-CW | 220-240V AC | 2 | 155 | 0,5 |
| CF500 | WW-NW-CW | 12-24V DC | 2 | 155 | 0,5 |
| CF500 | RGB | 7,5V DC | 8 | - | 0,5 |
*Power and Lumen values provided are based off of a cold white (CW) LED.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• 316 L chrome body and chrome spot reflector
• Polycarbonate luminaire glass
• Plastic injection installation box
• Underwater cable joint
• H07RNF rubber cable
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code | Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| CF500 | 5 | PVM | 2x | - | - |
| 7,5 | PVM | - | 4x | - | |
| 12-24 | ON/OFF | - | - | - | |
Lens Options
N. NARROW ANGLE
XN. EXTRA NARROW ANGLE
Mounting
29. WITH SCREW
30. WITHOUT SCREW

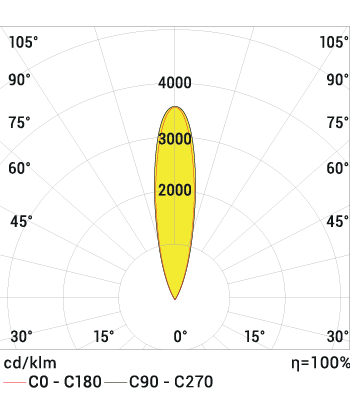

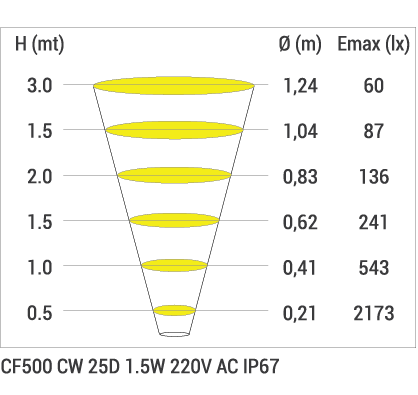

Product Diagrams

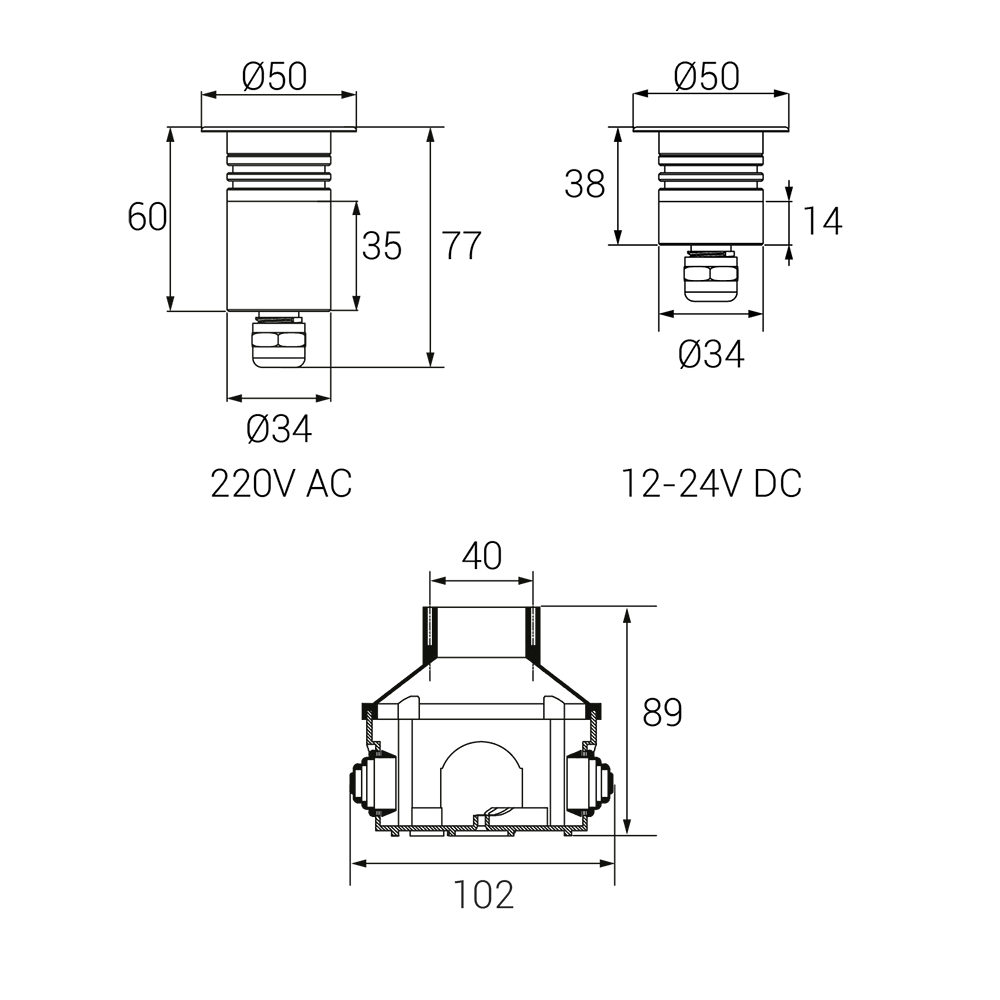

Technical Draw
Documents
