CFU23
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| CFU23-M100 | WW-NW-CW | 24V DC | 18 | 450 | 2,6 |
| CFU23-M100 | WW-NW-CW | 24V DC | 4,8 | 120 | 2,6 |
| CFU23-M100 | WW-NW-CW | 24V DC | 14,4 | 360 | 2,6 |
| CFU23-M100 | WW-NW-CW | 24V DC | 7,2 | 180 | 2,6 |
| CFU23-M100 | WW-NW-CW | 24V DC | 14,4 | 360 | 2,6 |
| CFU23-M100 | RGB | 24V DC | 10,8 | - | 2,6 |
| CFU23-M100 | RGB | 24V DC | 14,4 | - | 2,6 |
| CFU23-M100 | RGB DMX | 24V DC | 8,4 | 5pixel/m | 2,6 |
| CFU23-M100 | RGB DMX | 24V DC | 12,6 | 7pixel/m | 2,6 |
*Power and Lumen values are based on "cold white (CW) LED".
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• At least 20 micron anodized aluminum extrusion body
• Polymer coated IP class
• Homogeneously illuminated surface with white polymer coating
• Operates with 24V DC
• IP67 female-male connector
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm |  |
RGB | ||
| NW:Natural White | 4000K | G:Green | 525nm |  |
RGBW | ||
| CW:Cold White | 6500K | B:Blue | 465nm |  |
RGBA | ||
| A:Amber | 590nm |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
|
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Cable Direction Options
01. SINGLE SIDE INLET

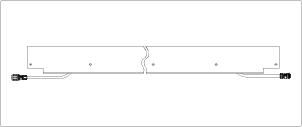

02. INLET AND OUTLET ON BOTH SIDES

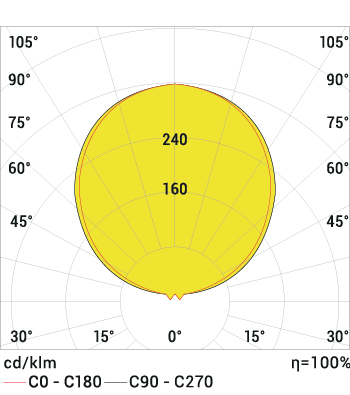

Product Diagrams
Technical Draw
