CG3
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| CG306 | WW-NW-CW | 220-240V AC | 8 | 880 | 1,3 |
| CG309 | WW-NW-CW | 220-240V AC | 10 | 1.320 | 1,3 |
| CG309 | WW-NW-CW | 12-24V DC | 10 | 460 | 1,3 |
| CG309 | RGB | 12V DC | 13 | - | 1,3 |
*Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired colour.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Chrome coated, grey or PC frame
• Electrostatic powder painted, cataphoresis coating aluminum injection body
• Polycarbonate luminaire glass
• Stainless connector
• Underwater cable joint
• H07RNF rubber cable
• IP68 Air valve
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI* | 0 - 10V DC* | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code | Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| CG309 | 12 | PWM | 2x | 4x | - |
| 12-24 | ON/OFF | 2x | - | - | |
Lens Options
N. NARROW ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Mounting
13. POLE MOUNT
14. SCREW MOUNT
Cable Direction Options
09. SINGLE BOTTOM ENTRY
10. ENTRY AND EXIT ON THE COVER
*Only for DC options
Upper Piece Options
15. CHROME PLATED SPOT MIRROR
16. WHITE PLASTIC SPOT MIRROR
17. GRAY PLASTIC SPOT MIRROR
Additional Options
REFLECTOR
STAND EXTENSION PIECES
34: 5cm
35: 10cm
36: 20cm
35: 10cm
36: 20cm

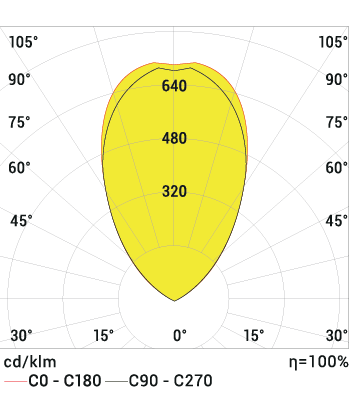

Product Diagrams

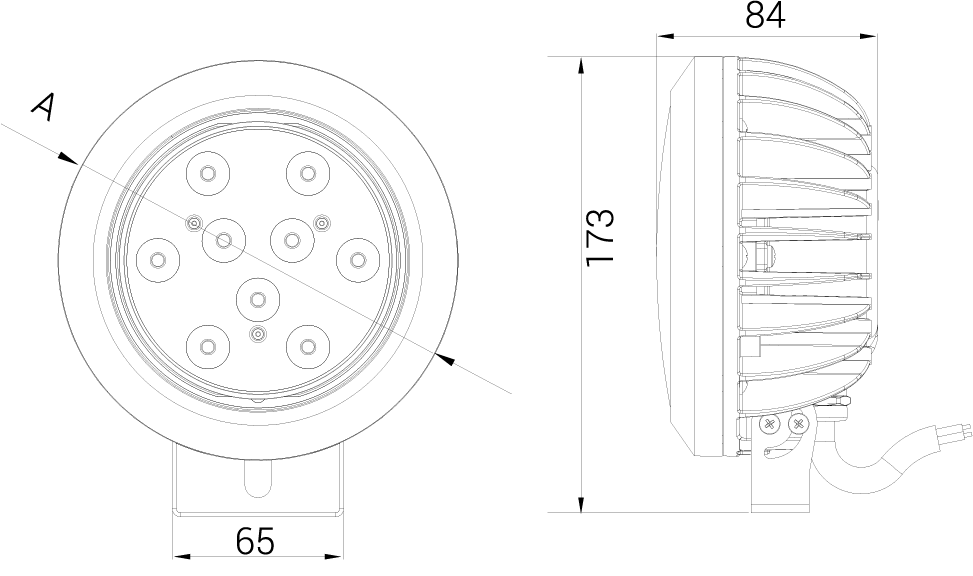

Technical Draw
Documents

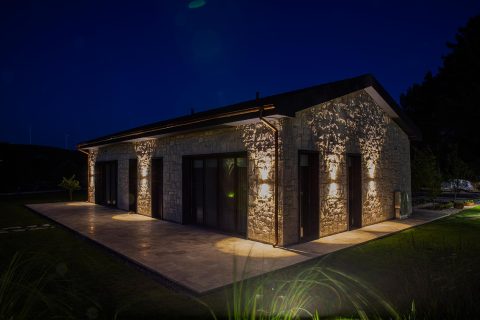

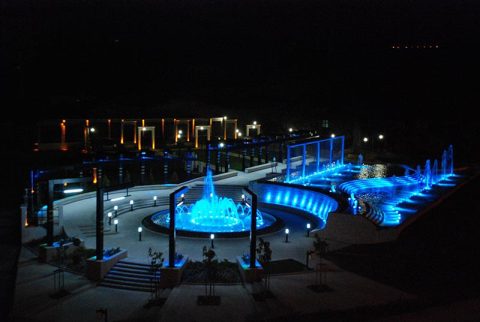

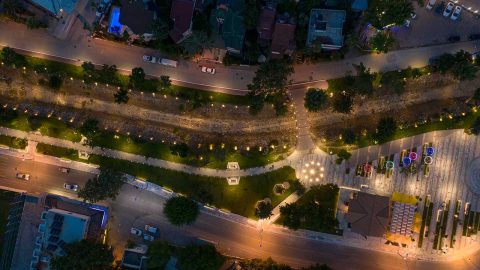

Projects
