KITE
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Name | Color Light | Input Voltage (V) | Power (W) | Luminous Flux (lm) | **Weight (kg) |
|---|---|---|---|---|---|
| KITE | WW-NW-CW | 220-240V AC | 40 | 4.910 | 3,9 |
| KITE | WW-NW-CW | 220-240V AC | 60 | 7.654 | 4 |
| KITE | WW-NW-CW | 220-240V AC | 80 | 9.934 | 4 |
| KITE | WW-NW-CW | 220-240V AC | 100 | 12.100 | 4 |
*Power and Lumen values provided are based off of a "cold white (CW) LED".
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• 2,5 mm wall thickness electrostatic powder coated aluminum injection profile
• Stainless fittings
• Wide angle asymmetric lens
• Originally wide design of the product allows the fixture to cool effectively without any cooling fins.
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Viewing Side
A: ASYMMETRICAL ANGLE (90°X120°)
Accessory Options
24011271 MOUNTING ACCESSORY
*Can be mount on Ø60mm pole with mounting accessory
Mounting
MK42 Ø42
MK60 Ø60
Housing Color Options
RAL9005
RAL9007
RAL9016

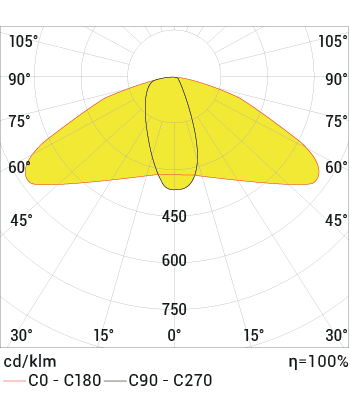

Product Diagrams

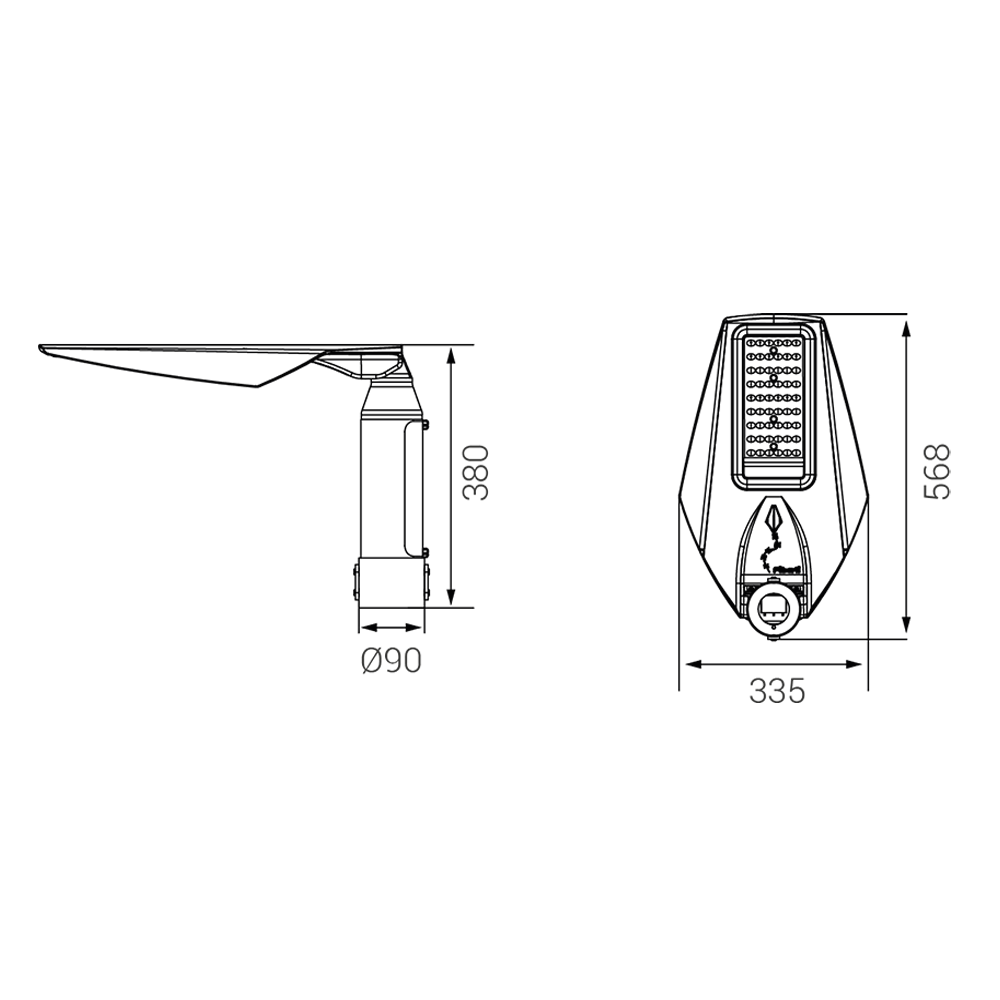

Technical Draw
Documents
