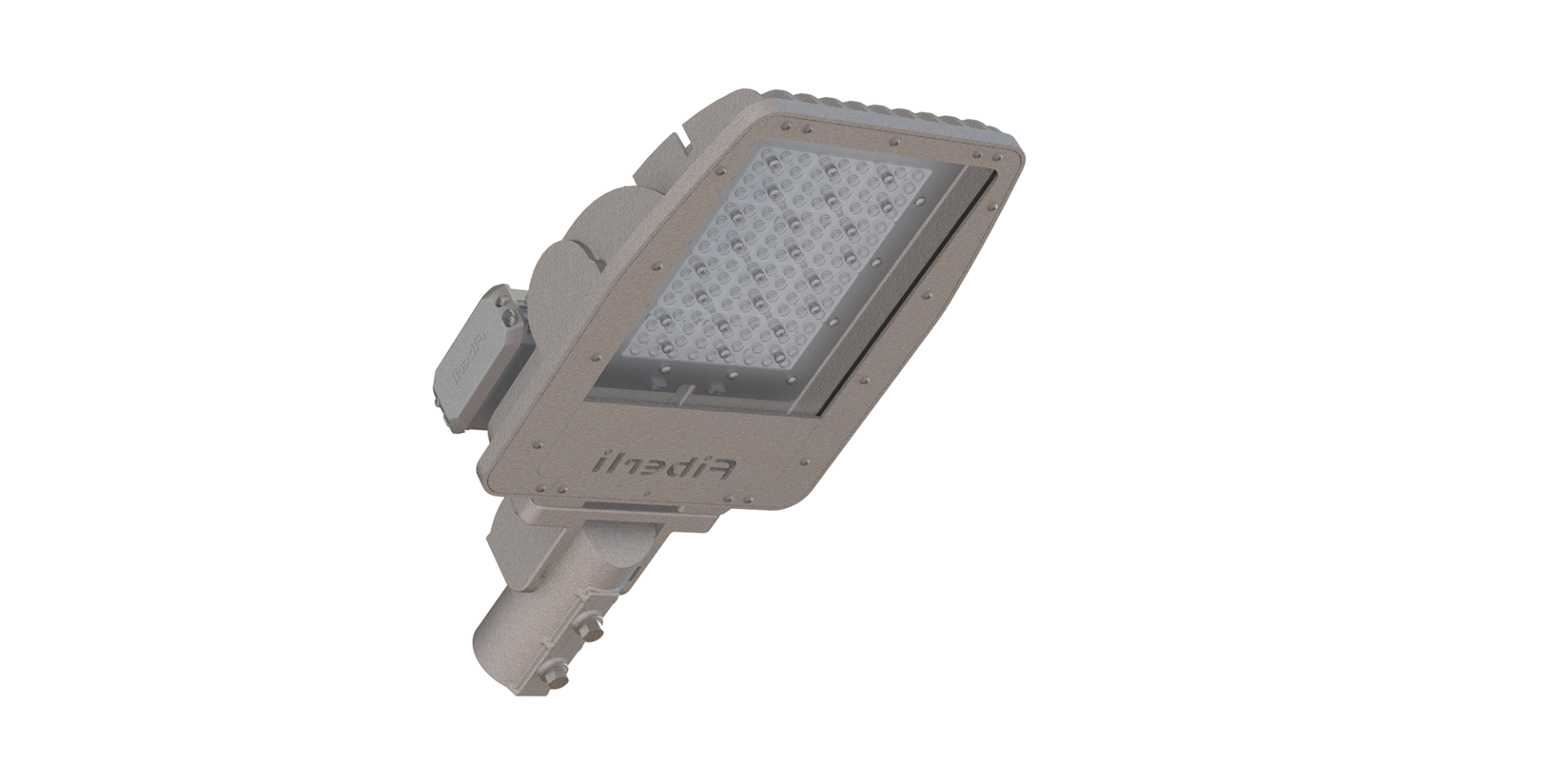

SWH Eco
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| SWH2192 | WW-NW-CW | 220-240V AC | 200 | 25.000 | 11,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum injection body and spigot
• 4mm tempered glass
• Aluminum injection side cover
• Stainless connectors
• Electrostatic powder coated connection pipe
• 10 kV surge protection
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
ME3. 90×120
XW. WITHOUT LENS
Housing Color Options
RAL9005
RAL9007
RAL9016
Product Diagrams
Technical Draw
Documents
