AC1F
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Dimensions | Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| AC1F03 | WW-NW-CW | 12-24V DC | 3 | 4 | 410 | Ø96x80 | 0,5 |
| AC1F03 | WW-NW-CW | 12-24V DC | 3 | 8 | 820 | Ø96x80 | 0,5 |
| AC1F03 | RGB | 7,5V DC | 3 | 8 | - | Ø96x80 | 0,5 |
**Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired color.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• 316L chrome spot frame
• 316L chrome body
• 8 mm tempered glass
• Stainless connecters
• Plastic injection mounting box
• Operates with alternate or direct current
• Underwater connector
• H07RNF rubber cable
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
System Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code |
Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| AC1F03 | 7,5 | PWM | 2x | - | - |
| 12 | PWM | - | 4x | - | |
| 12-24 | ON/OFF | 2x | - | - | |
Lens Options
N. NARROW ANGLE
XW. WITHOUT LENS

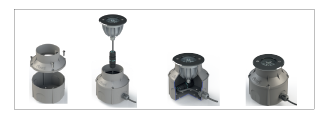

Mounting

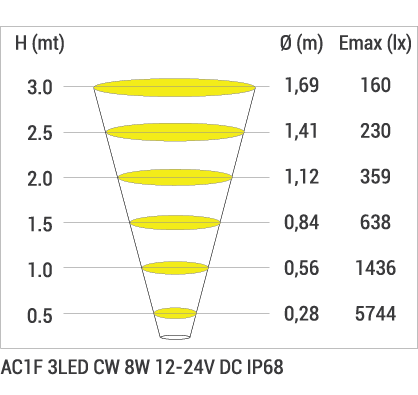

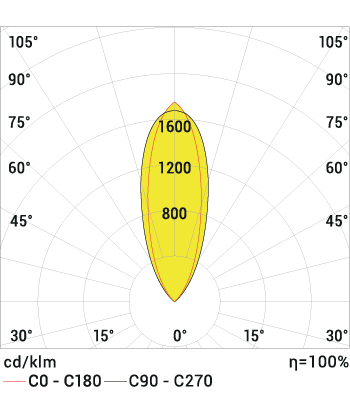

Product Diagrams

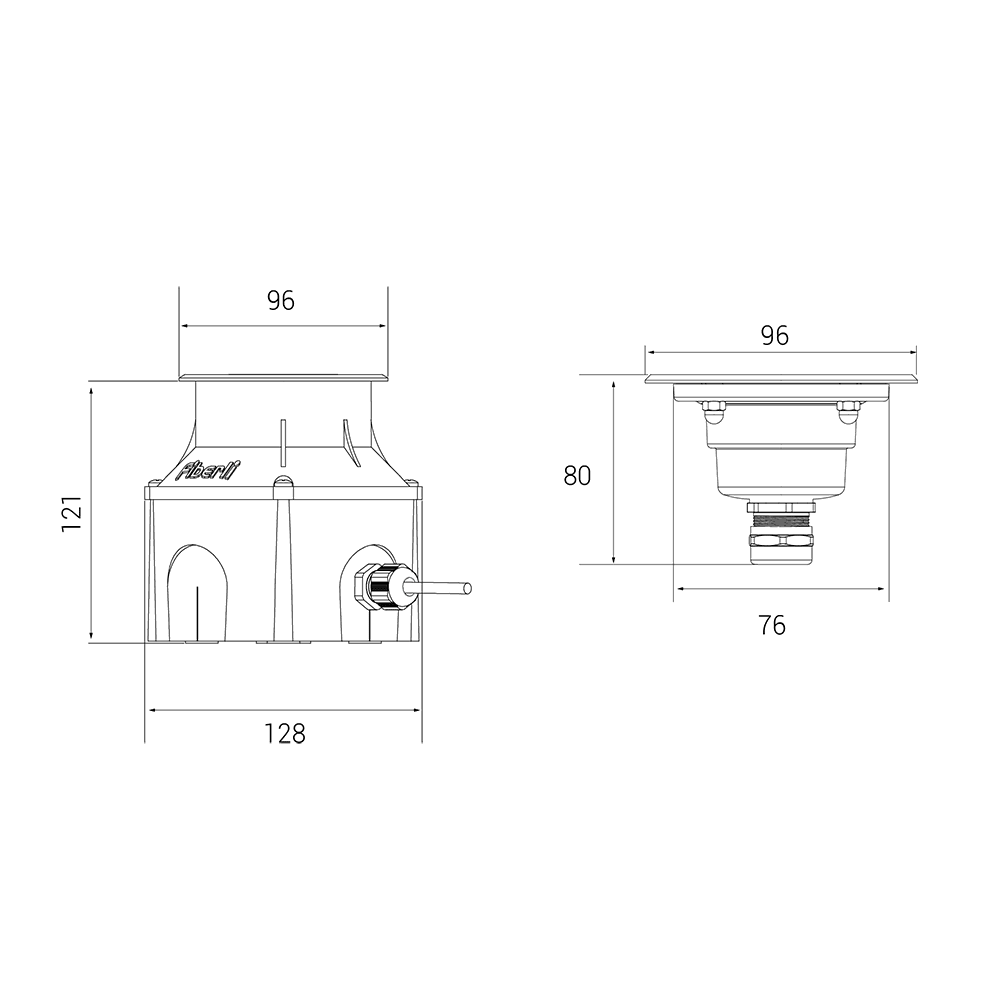

Technical Draw
