AC1N
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Dimensions | Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| AC1N03 | WW-NW-CW | 12-24V DC | 3 | 4 | 410 | Ø88x65 | 0,40 |
| AC1N03 | WW-NW-CW | 12-24V DC | 3 | 8 | 820 | Ø88x65 | 0,40 |
| AC1N03 | RGB | 7,5V DC | 3 | 4 | - | Ø88x65 | 0,40 |
**Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired color.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Chrome coated or PC spot frame in white color
• Corrosion protection by double layered electrostatic powder coated body
• Polycarbonate glass
• 316 L Stainless connecters
• Operates with alternate or direct current
• Underwater connector
• H07RNF rubber cable
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
System Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code |
Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| AC1N03 | 7,5 | PWM | - | 4x | - |
| 12 | PWM | 2x | - | - | |
| 12-24 | ON/OFF | 2x | - | - | |
| 12-24 | INV-PVM | 3x | 5x | - | |
Lens Options
N. NARROW ANGLE
XW. WITHOUT LENS
Upper Piece Options
15. CHROME COATED SPOT FRAME
15: Chrome coated spot frame
16. WHITE PLASTIC SPOT FRAME
16: White plastic spot frame
Chrome housing for mono colour options. Aluminum injection housing for RGB options.
Product Diagrams

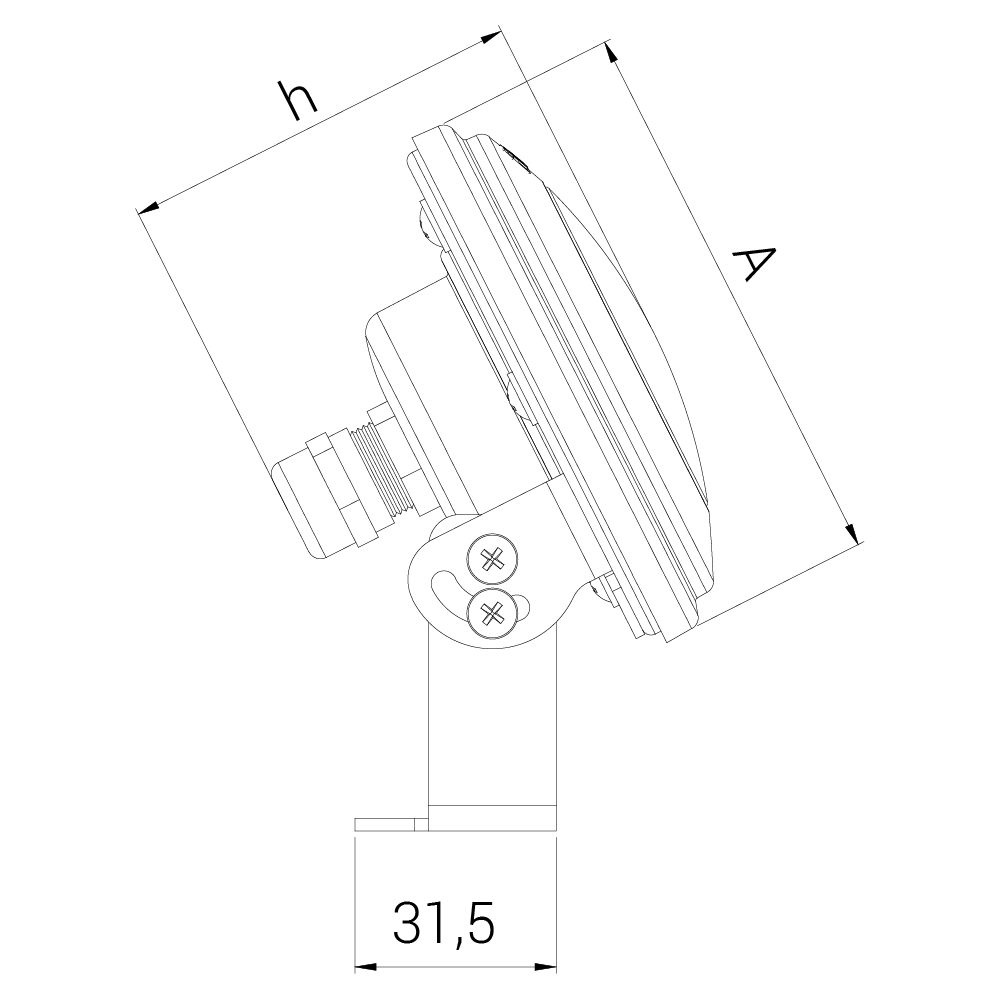

Technical Draw
