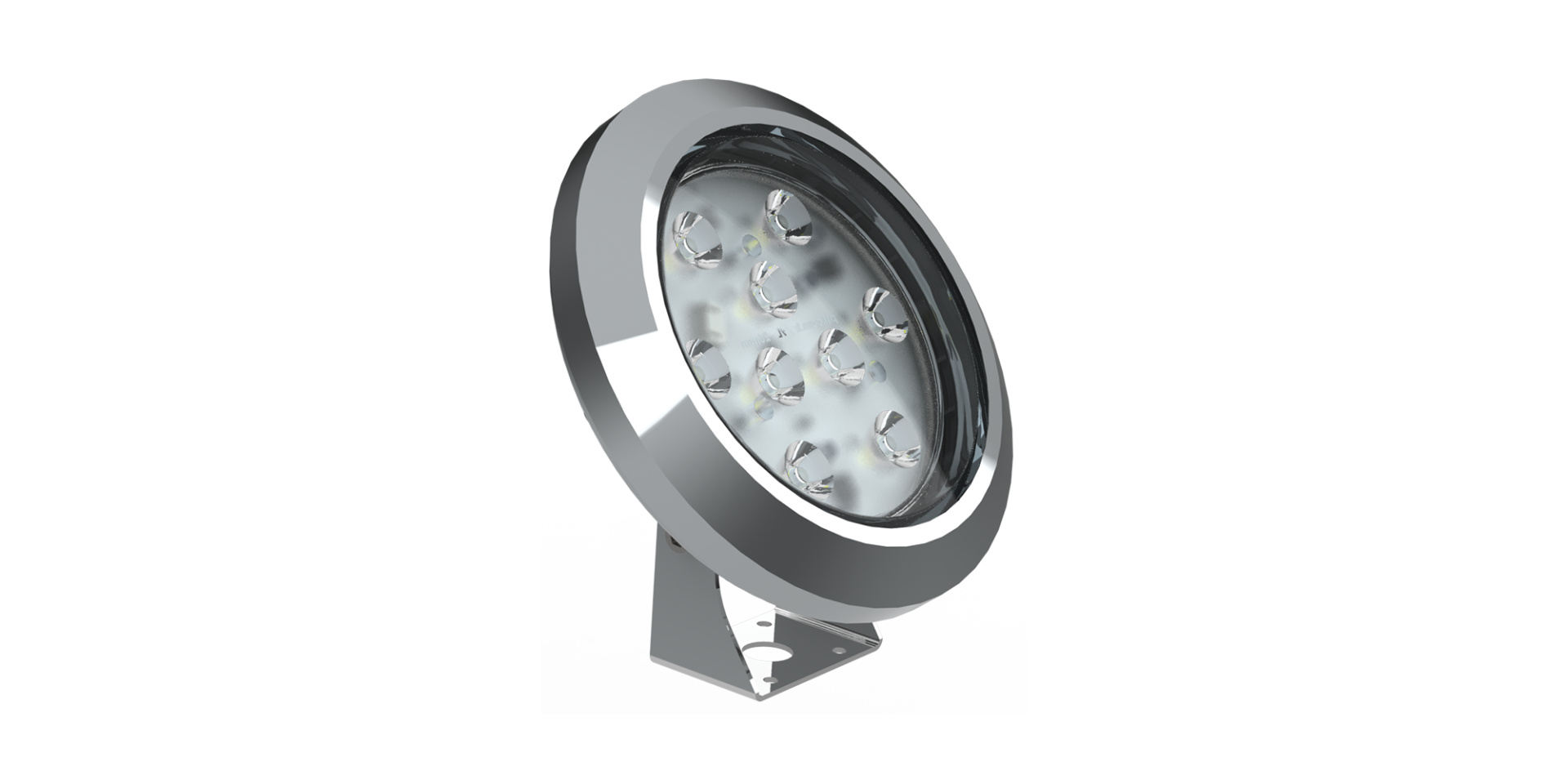

AC3N
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Dimensions | Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| AC3N09 | WW-NW-CW | 12-24V DC | 9 | 12 | 1.200 | 152x82 | 0,65-1,3 |
| AC3N09 | WW-NW-CW | 12-24V DC | 9 | 18 | 1.680 | 152x82 | 0,65-1,3 |
| AC3N09 | WW-NW-CW | 12-24V DC | 9 | 25 | 2.400 | 152x82 | 0,65-1,3 |
| AC3N09 | RGB | 12V DC | 9 | 13 | - | 152x82 | 0,65-1,3 |
| AC3N09 | RGB | 12V DC | 9 | 18 | - | 152x82 | 0,65-1,3 |
*Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired color.
** Product weight provided is based off of the chrome and aluminum options.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Chrome coated or PC spot frame in white color
• 316 L Stainless steel body
• Corrosion protection by double layered electrostatic powder coated body
• Polycarbonate glass
• 316 L Stainless connecters
• Operates with alternate or direct current
• Underwater connector
• H07RNF rubber cable
Light Color Options
System Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code |
Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| AC3N09 | 12 | PWM | 2X | 4x | - |
| 12-24 | ON/OFF | 2x | - | - | |
| 12-24 | INV-PVM | 3X | 5X | - | |
Lens Options
M. MEDIUM ANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Mounting Accessories
34. 5CM
Body Options
09. ALUMINUM BODY IP67
10. CHROME BODY IP68
*Application of aluminum and chrome bodies in water are different. Please read the user manual
Cable Direction Options
08. SINGLE ENTRY THROUGH CENTER
09. SINGLE BOTTOM ENTRY
10.ENTRY AND EXIT THROUGH COVER
*Additional underwater cable joint has to be used in need of extra underwater cables.
Upper Piece Options
15. CHROME COATED SPOT FRAME
16. PLASTIC SPOT FRAME IN WHITE

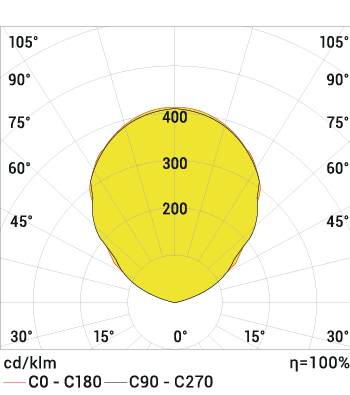

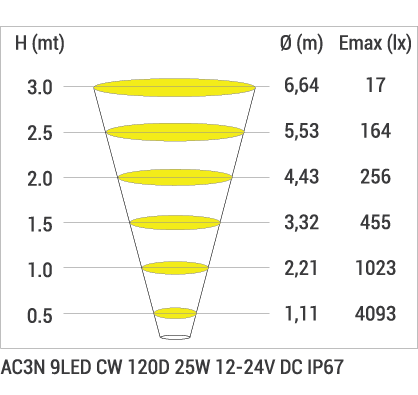

Product Diagrams

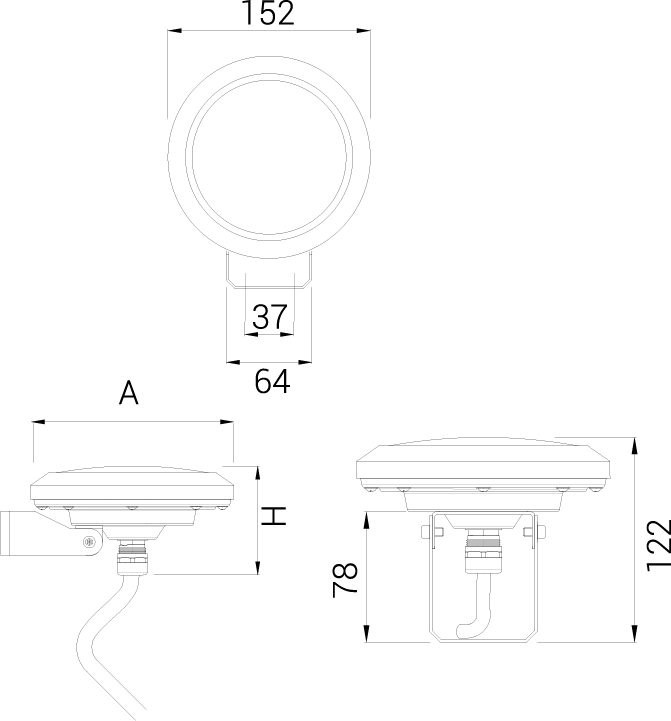

Technical Draw
Documents
