AC5G
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Dimensions | Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| AC5G18 | WW-NW-CW | 12-24V DC | 18 | 21 | 2.100 | 177x83 | 1,2 |
| AC5G18 | WW-NW-CW | 12-24V DC | 18 | 32 | 3.200 | 177x83 | 1,2 |
| AC5G18 | WW-NW-CW | 12-24V DC | 18 | 46 | 4.800 | 177x83 | 1,2 |
| AC5G18** | RGB | 24V DC | 18 | 26 | - | 177x83 | 1,2 |
| AC5G18** | RGB | 24V DC | 18 | 36 | - | 177x83 | 1,2 |
* Power and Lumen values provided are based off of a lensless product with cold white (CW) LED. It may vary according to the desired color.
** RGB products can be produced in 12-24 V DC and product values may vary.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Chrome coated or PC spot frame in white color
• 316 L Press forming chrome body
• Polycarbonate glass
• 316 L Stainless connecters
• Operates with alternate or direct current
• Underwater connector
• H07RNF rubber cable
• Plastic injection mounting box (optional)
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
System Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code | Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| AC5G18 | 12 | PWM | 2X | 4x | - |
| 12-24 | ON/OFF | 2x | - | - | |
| 12-24 | INV-PVM | 3X | 5X | - | |
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Accessories
34600134:MOUNTING BOX
Upper Piece Options
15. CHROME PLATED
16. WHITE

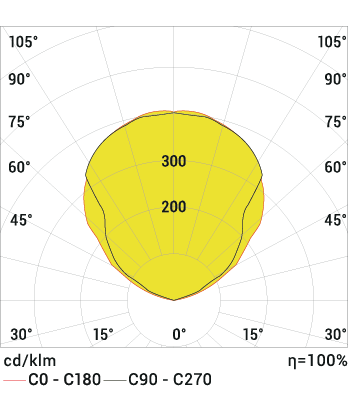

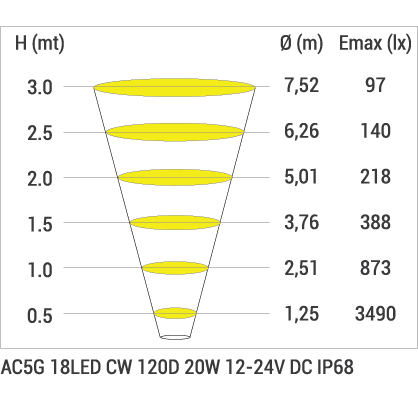

Product Diagrams

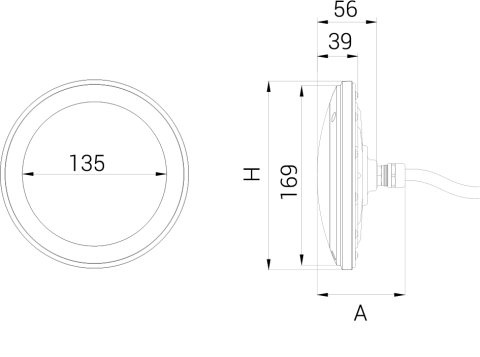

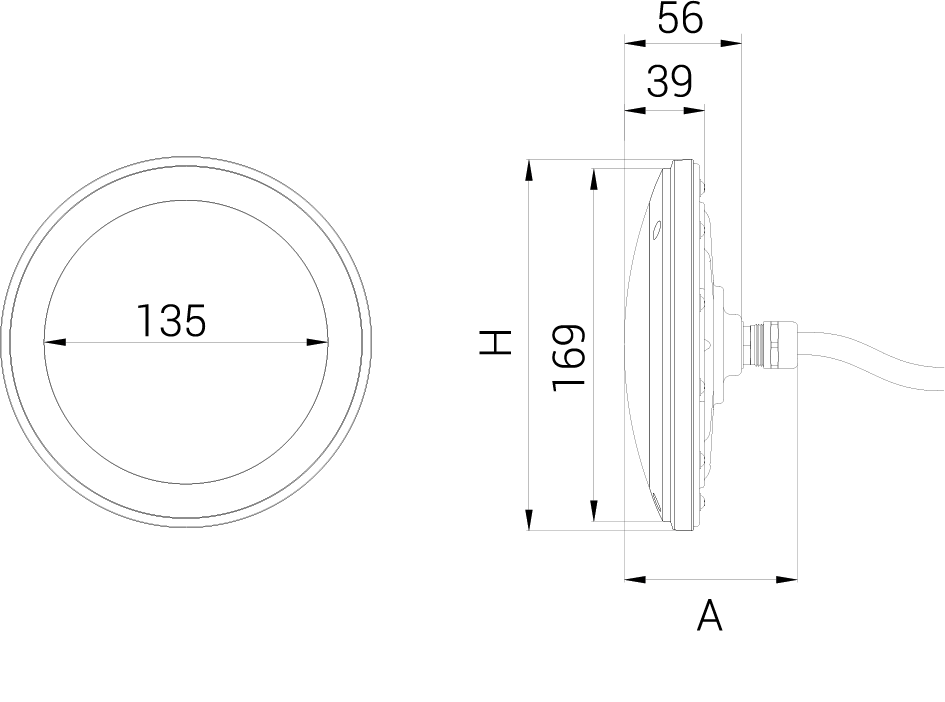

Technical Draw
