C-WL
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| C-WL216 | RGBW | 48V DC | 16 | - | 600 | 0,5 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS• Anodized aluminum extruded profile
• Polycarbonate luminaire glass
• PVC side covers with invisible gland outlet and
UV protection
• Stainless steel fixture stand
• High efficiency group lens
• IP68 air vent
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB DMX |
 |
||||||
Lens Options
XN: EXTRA NARROW ANGLE
N: NARROW ANGLE
N: NARROW ELLIPTICAL ANGLE
M: MEDIUM ANGLE
W: WIDE ANGLE
Connection Options
02: IP SOCKET
Cable Direction Options
02: DUAL ENTRY AND EXIT

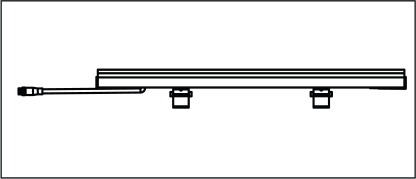

04: LEFT BOTTOM EXIT

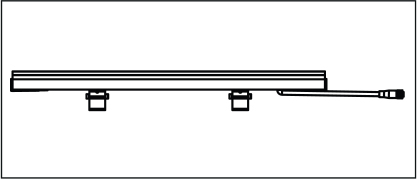

06: RIGHT BOTTOM EXIT
Upper Piece Options

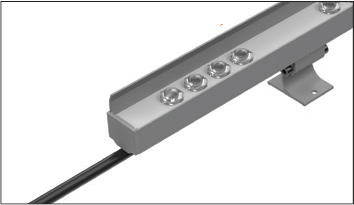

GLARE SHIELD
Product Diagrams

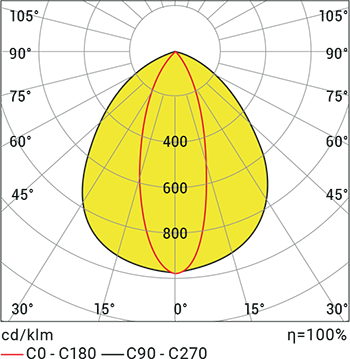

C WL POLAR

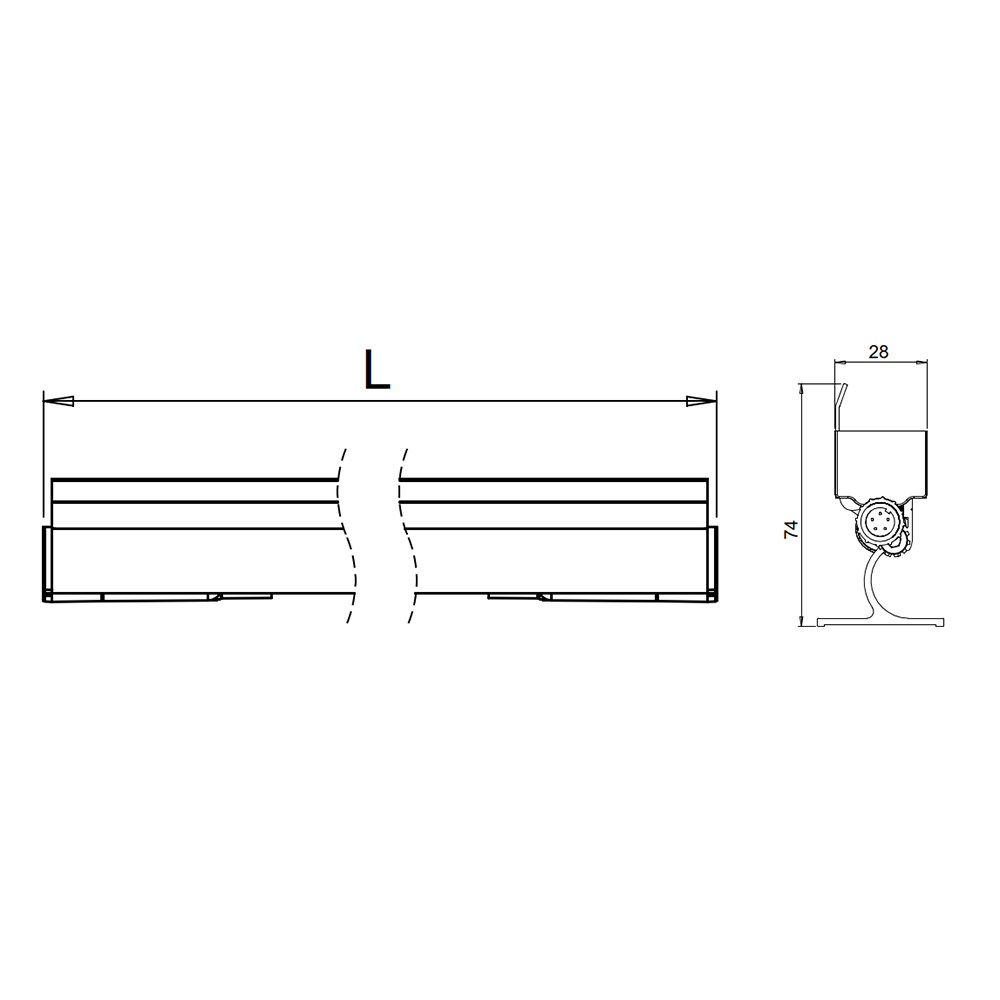

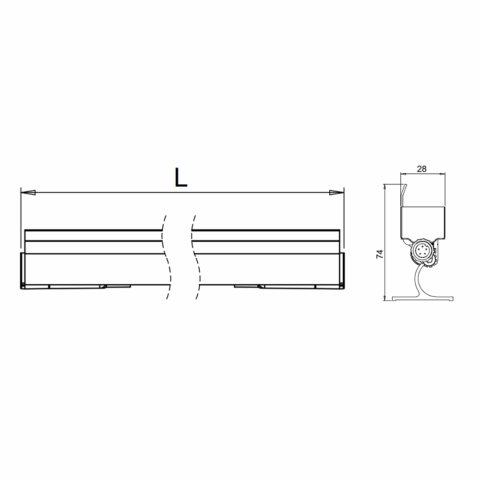

Technical Draw
Documents
