Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L)(mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| LLTMS60 | WW-NW-CW | 220V-240V AC | 7 | 915 | 631 | 0,7 |
| LLTMS60 | WW-NW-CW | 220V-240V AC | 21 | 2.110 | 631 | 0,7 |
| LLTMS120 | WW-NW-CW | 220V-240V AC | 16 | 2.080 | 1.231 | 1,2 |
| LLTMS120 | WW-NW-CW | 220V-240V AC | 35 | 4.550 | 1.231 | 1,2 |
| LLTMS160 | WW-NW-CW | 220V-240V AC | 24 | 3.120 | 1.631 | 1,5 |
| LLTMS160 | WW-NW-CW | 220V-240V AC | 42 | 5.450 | 1.631 | 1,5 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extruded profile
• PVC end caps with increased UV resistance
• High efficiency semi-transparent or opal PC diffuser
• Stainless steel mounting clip and hanger part
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Connection Options
01. CABLE
02. IP SOCKET
Cable Direction Options
01. SINGLE ENTRY
03. DUAL END EXIT AND ENTRY
Upper Piece Options
01. DIFFUSED
02. TRANSPARENT

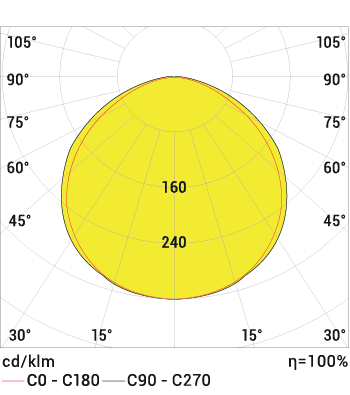

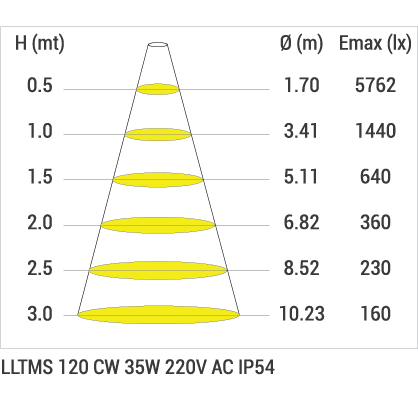

Product Diagrams

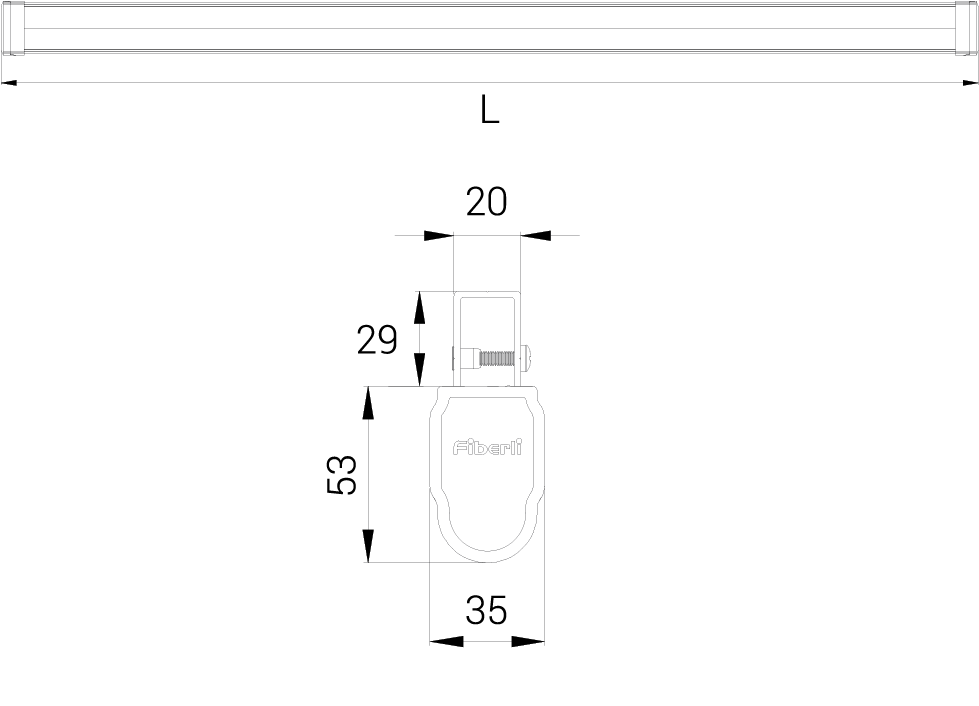

Technical Draw
