WLM
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L)(mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WLM248 | WW-NW-CW | 220-240V AC | 16 | 1.848 | 600 | 0,9 |
| WLM372 | WW-NW-CW | 220-240V AC | 20 | 2.667 | 900 | 1,4 |
| WLM496 | WW-NW-CW | 220-240V AC | 28 | 3.531 | 1200 | 1,7 |
| WLM109 | RGB | 24V DC | 7,2 | - | 330 | 0,6 |
| WLM218 | RGB | 24V DC | 14,4 | - | 600 | 0,9 |
| WLM327 | RGB | 24V DC | 21,6 | - | 900 | 1,4 |
| WLM436 | RGB | 24V DC | 28,8 | - | 1200 | 1,7 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Anodized aluminum extruded profile.
• Anodized aluminum extruded fixture stand
• Polycarbonate luminaire glass.
• PVC side covers with invisible gland outlet and UV protection..
• High efficiency group lens.
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code | Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| WLM109 | 24 | PWM | 2x | 4x | - |
| WLM218 | 24 | PWM | 2x | 4x | - |
| WLM327 | 24 | PWM | 2x | 4x | - |
| WLM436 | 24 | PWM | 2x | 4x | - |
Lens Options
M. MEDIUM ELLIPTICALANGLE
N. NARROW ELLIPTICALANGLE
W. WIDE ANGLE
XN. EXTRA NARROW ELLIPTICALANGLE
Connection Options
01. CABLE
02. IP SOCKET
Cable Direction Options
01: SINGLE ENTRY
02: DUAL BOTTOM EXIT AND ENTRY
03: DUAL EXIT AND ENTRY
04: SINGLE BOTTOM END ENTRY (LEFT)
05: SINGLE END EXIT AND ENTRY (RIGHT)
06: SINGLE BOTTOM ENTRY (RIGHT)
*The max. junction qty may vary for the products with both entry and exit

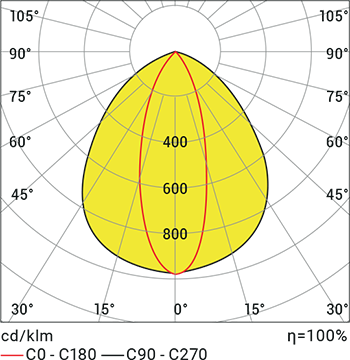

Product Diagrams

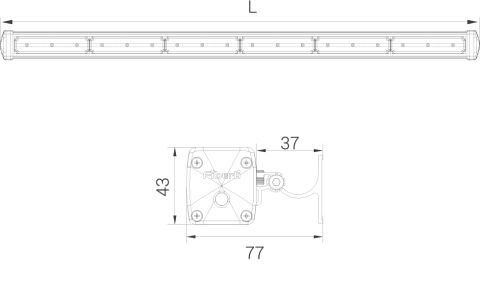

Technical Draw
