Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WLT112 | WW-NW-CW | 220-240V AC | 20 | 2424 | 330 | 1,2 |
| WLT224 | WW-NW-CW | 220-240V AC | 35 | 4335 | 625 | 2 |
| WLT336 | WW-NW-CW | 220-240V AC | 50 | 6322 | 920 | 2,7 |
| WLT448 | WW-NW-CW | 220-240V AC | 65 | 8023 | 1215 | 3,4 |
| WLT112-DMX | RGB | 220-240V AC | 14 | - | 330 | 1,2 |
| WLT224-DMX | RGB | 220-240V AC | 28 | - | 625 | 2 |
| WLT336-DMX | RGB | 220-240V AC | 42 | - | 920 | 2,7 |
| WLT448-DMX | RGB | 220-240V AC | 56 | - | 1215 | 3,4 |
| WLT112-PDMX | RGB/W/A | 220-240V AC | 14 | - | 330 | 1,2 |
| WLT224-PDMX | RGB/W/A | 220-240V AC | 28 | - | 625 | 2 |
| WLT336-PDMX | RGB/W/A | 220-240V AC | 42 | - | 920 | 2,7 |
| WLT448-PDMX | RGB/W/A | 220-240V AC | 56 | - | 1215 | 3,4 |
| WLT112 | RGB | 15-24V AC | 13,5 | - | 330 | 1 |
| WLT224 | RGB | 15-24V AC | 31 | - | 625 | 1,8 |
| WLT336 | RGB | 15-24V AC | 47 | - | 920 | 2,5 |
| WLT448 | RGB | 15-24V AC | 62 | - | 1215 | 3 |
*Power and lumen values provided are based off of a cold white(CW) LED
Key Features
• Anodized aluminum extruded profile
• Tempered luminaire glass
• UV protected PVC side covers with concealed outlet
• IP68 air vent
• Stainless steel fixture stand
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm |  |
RGB | ||
| NW:Natural White | 4000K | G:Green | 525nm |  |
RGBW | ||
| CW:Cold White | 6500K | B:Blue | 465nm |  |
RGBA | ||
| A:Amber | 590nm |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
|
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
| Product Code | Voltage (V DC) | Control Systems | Cable Core Quantity | ||
| Mono | RGB | RGB W/A | |||
| WLT112 | 15-24 | INV-PWM | 3x | 5x | 6x |
| 15-24 | ON/OFF | 2x | - | - | |
| WLT224 | 15-24 | INV-PWM | 3x | 5x | 6x |
| 15-24 | ON/OFF | 2x | - | - | |
| WLT336 | 15-24 | INV-PWM | 3x | 5x | 6x |
| 15-24 | ON/OFF | 2x | - | - | |
| WLT448 | 15-24 | INV-PWM | 3x | 5x | 6x |
| 15-24 | ON/OFF | 2x | - | - | |
Lens Options
E. ELLIPTICAL ANGLED
M. MEDIUM ANGLE
N. NARROW ANGLE
W. WIDE ANGLE
XW. WITHOUT LENS
Mounting Accessories
20. STANDART STAND
21. STANDARD STAND MOUNTING KIT
Upper Cover Options
WITH GLARE SHIELD
WITHOUT GLARE SHIELD
Connection Options
01. CABLE
02. IP SOCKET
Cable Direction Options
01. SINGLE ENTRY
03. DUAL ENTRY AND EXIT

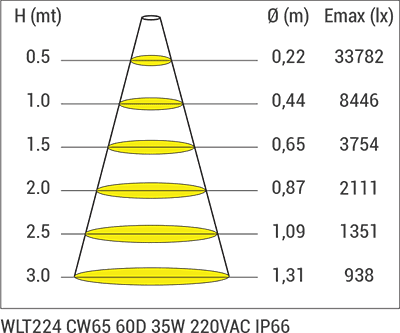

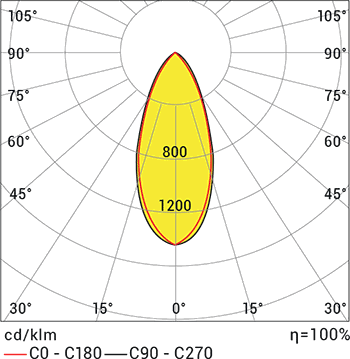

Product Diagrams

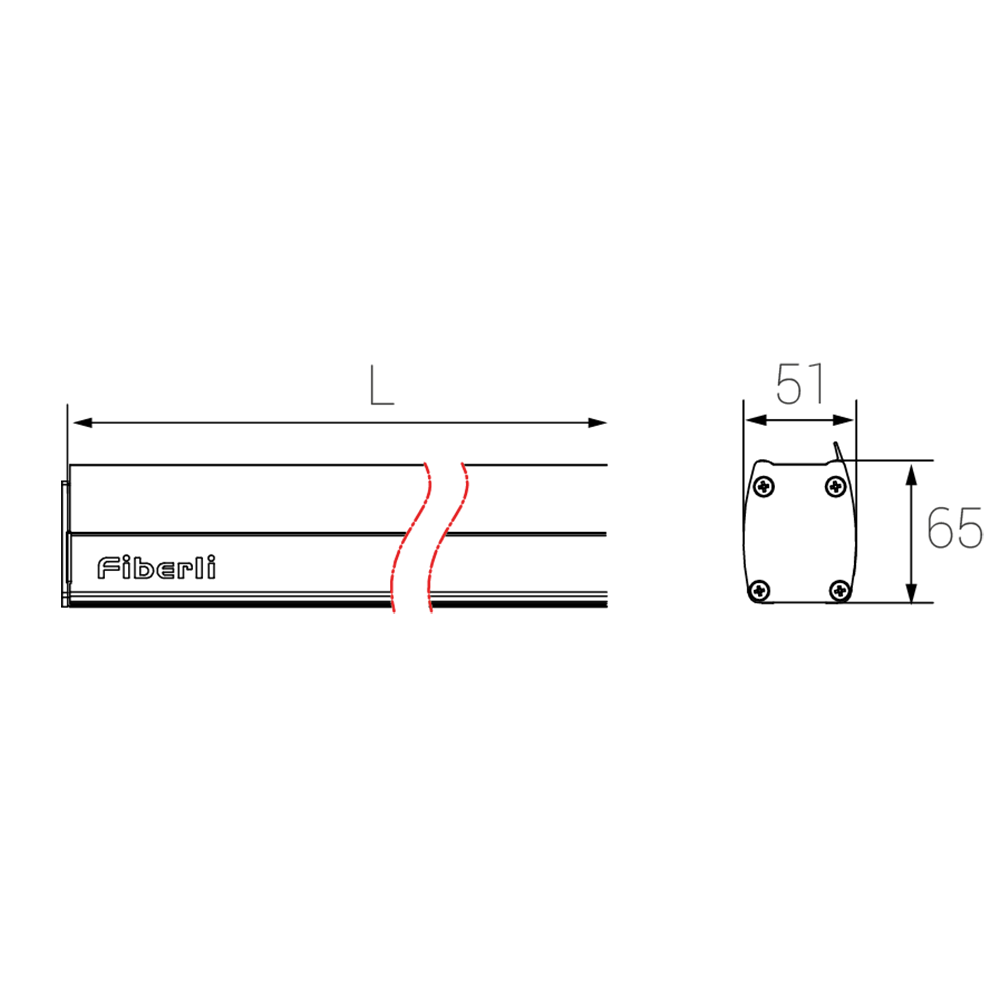

Technical Draw
Documents
