WH0680-COMPACT
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| WL0680 | WW-NW-CW | 220-240V AC | 310 | 45.144 | 4,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
• Electrostatic powder coated aluminum injection
housing
• High cooling capacity body design
• 4mm tempered luminaire glass
• Stainless fittings and clips
• Electrostatic painted DKP / Galvanized mounting feet
• Compact solution
• Over Current Protection
• Over temperature Protection
• Surge Protection
Light Color Options
Lens Options
XW: WITHOUT LENS
Connection Options
01. CABLE
Housing Color Options
RAL9005
RAL9007
RAL9016

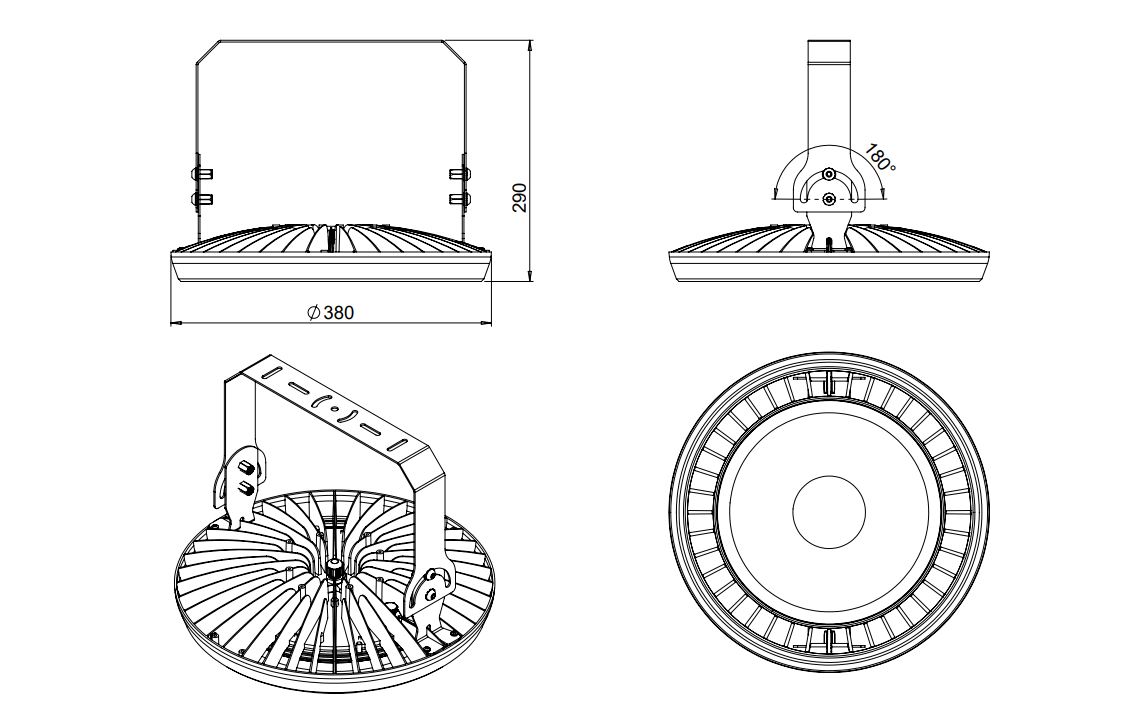

Technical Draw
