WLMT
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description

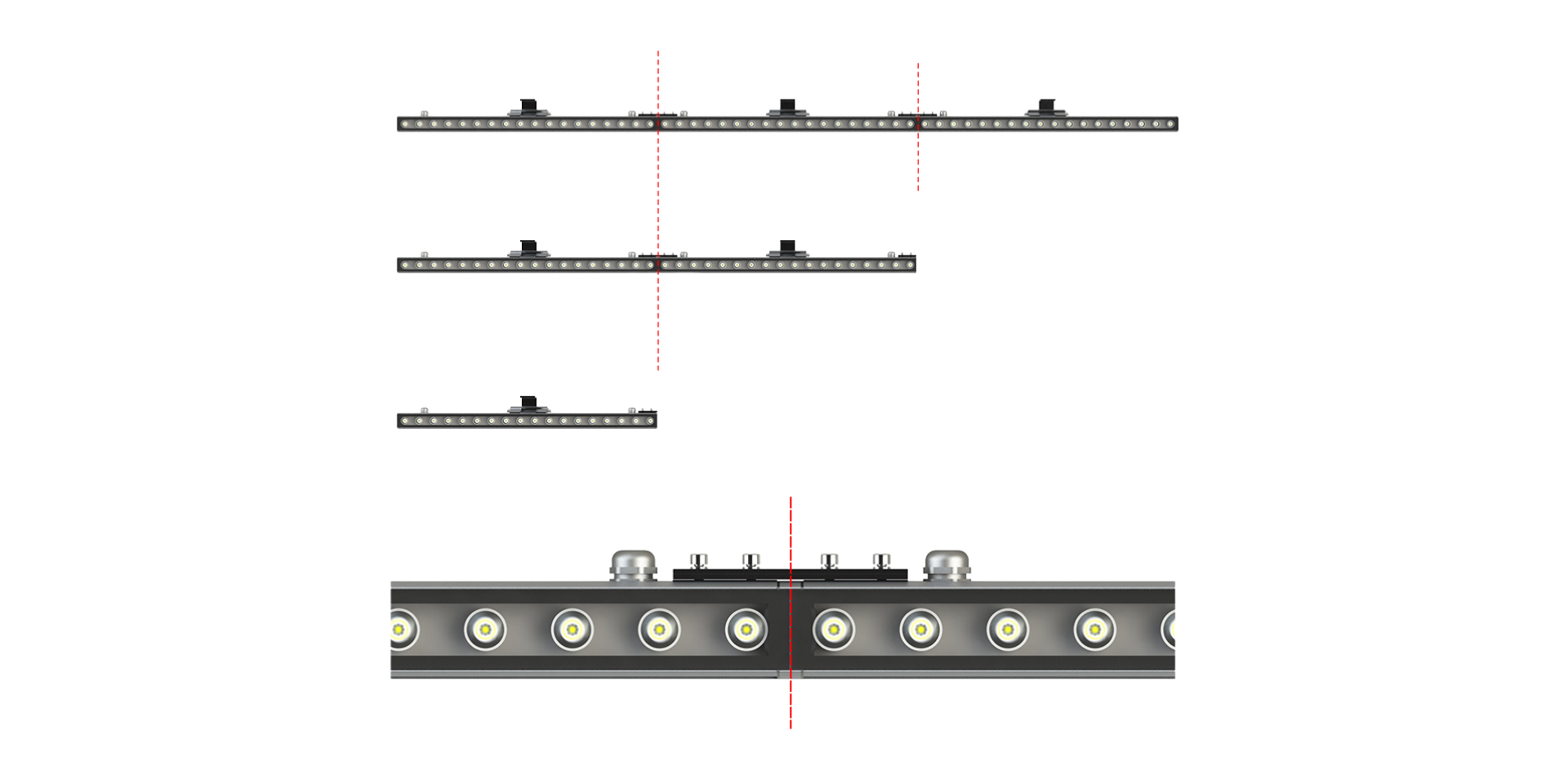

Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Length (L)(mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| WLMT124 | WW-NW-CW | 220-240V AC | 16 | 1.848 | 320 | 0,6 |
| WLMT248 | WW-NW-CW | 220-240V AC | 28 | 1.848 | 600 | 0,9 |
| WLMT372 | WW-NW-CW | 220-240V AC | 36 | 2.667 | 890 | 1,4 |
| WLMT496 | WW-NW-CW | 220-240V AC | 48 | 3.531 | 1180 | 1,7 |
| WLMT109-DMX | RGB | 220-240V AC | 8 | - | 320 | 0,6 |
| WLMT218-DMX | RGB | 220-240V AC | 16 | - | 600 | 0,9 |
| WLMT327-DMX | RGB | 220-240V AC | 24 | - | 890 | 1,4 |
| WLMT436-DMX | RGB | 220-240V AC | 32 | - | 1180 | 1,7 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
• Continuous light output with end-to-end connection
• Anodized aluminum extruded profile
• Anodized aluminum extrusion luminaire bracket
• Tempered luminaire glass
• IP68 air vent
• High-efficiency group lens option
• Shield option
• One-piece connection capability
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
Lens Options
N: NARROW ELLIPTICAL ANGLE
XN. EXTRA NARROW ELLIPTICALANGLE
M. MEDIUM ELLIPTICALANGLE
Connection Options
01. CABLE
02. IP SOCKET
Cable Direction Options
01. SINGLE ENTRY
03. DUAL ENTRY AND EXIT
*The max. junction qty may vary for the products with both entry and exit

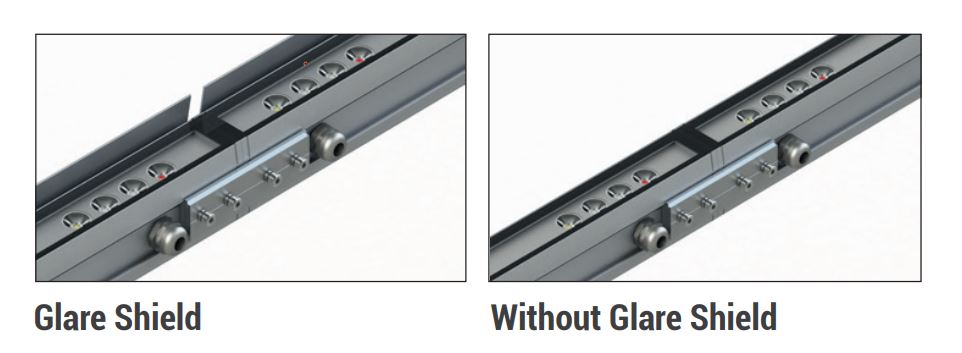

Upper Piece Options
WLMT GLARE
Product Diagrams

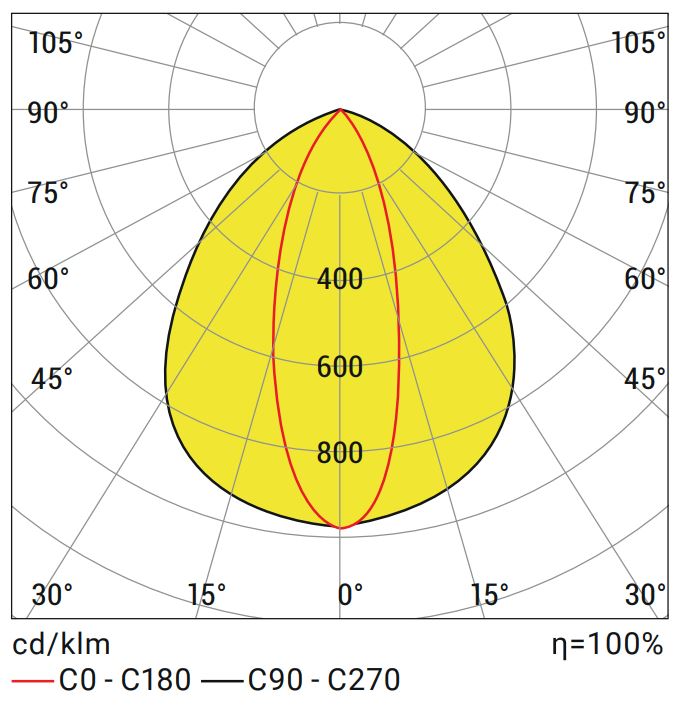

WLTM POLAR

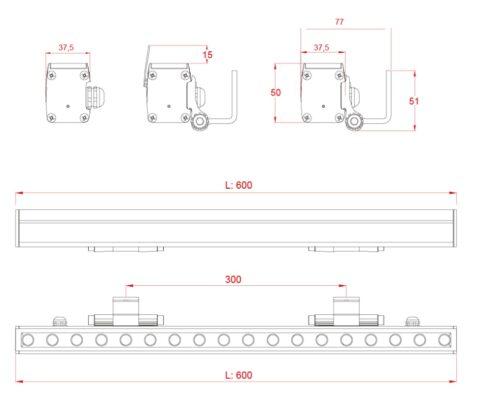

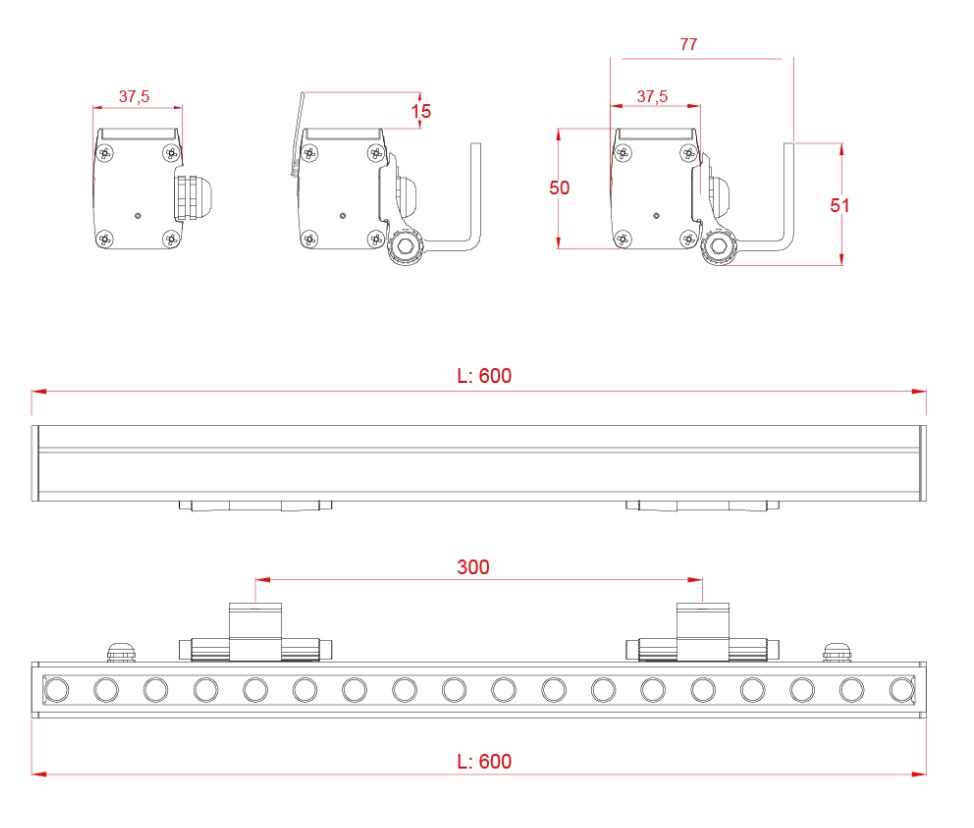

Technical Draw
