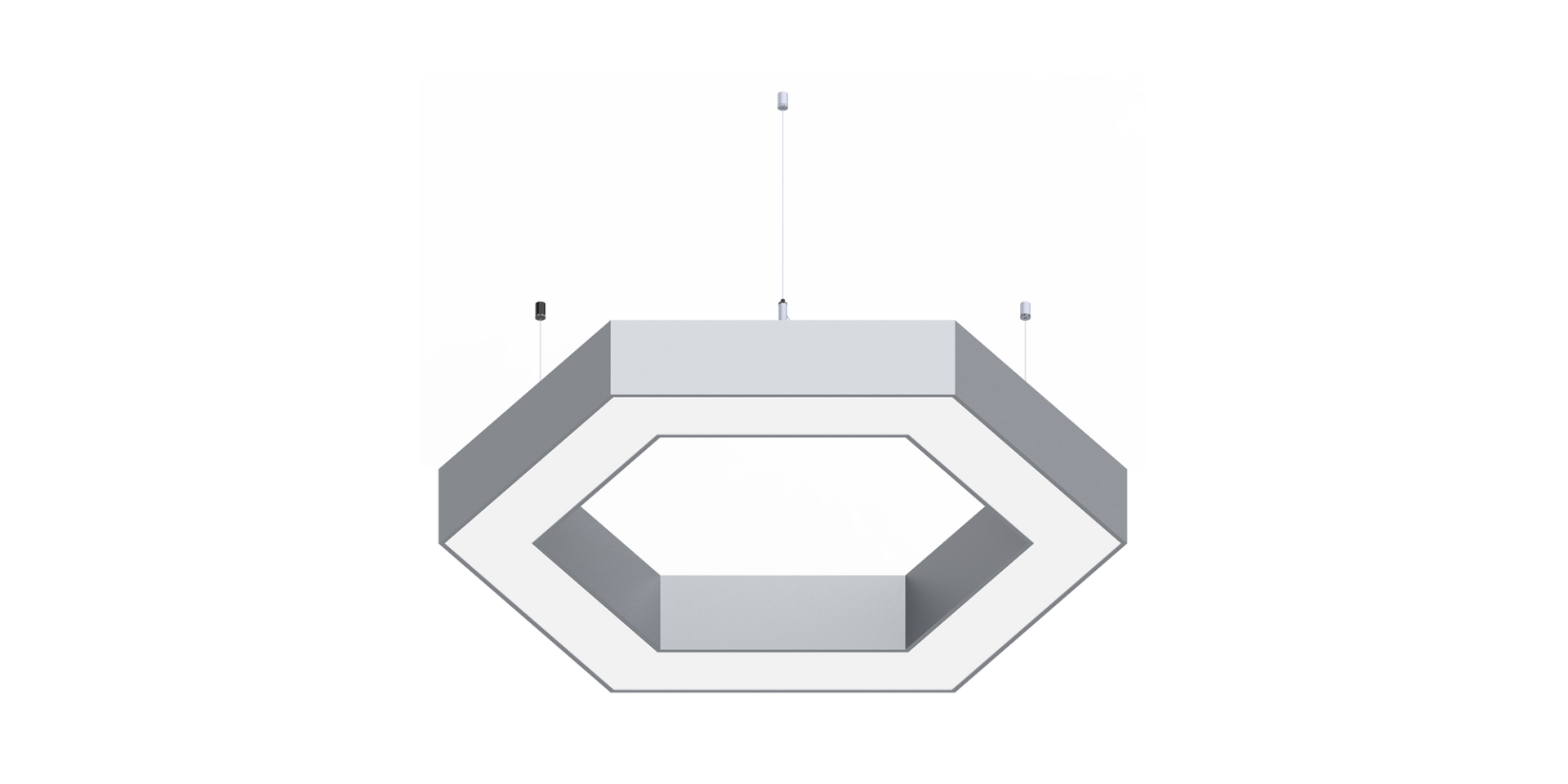

BLZ Hex
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Dimensions (AxB)(mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|
| BLZ Hex | WW-NW-CW | 24V DC | 55 | 4.125 | 700X800 | 7,3 |
| BLZ Hex | WW-NW-CW | 24V DC | 80 | 6.000 | 700X800 | 7,3 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexy glass diffused cover.
• Suitable for pendant mounting.
• Product length standards are; 90cm, 120cm, 150cm and 180cm.
• Different colors are applicable for the housing
• 1,5m steel wire hangers are include
• The number of the hangers in the package may vary regarding the product size
Light Color Options
| WW:Warm White | 3000K | R:Red | 625nm | ||
| NW:Natural White | 4000K | G:Green | 525nm | ||
| CW:Cold White | 6500K | B:Blue | 465nm | ||
 |
RGB | A:Amber | 590nm |
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB | |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Housing Color Options
01. ANODIZED
29. WALNUT
30. DARK WALNUT
31. OAK
32. LIGHT WALNUT
RAL9005
RAL9016

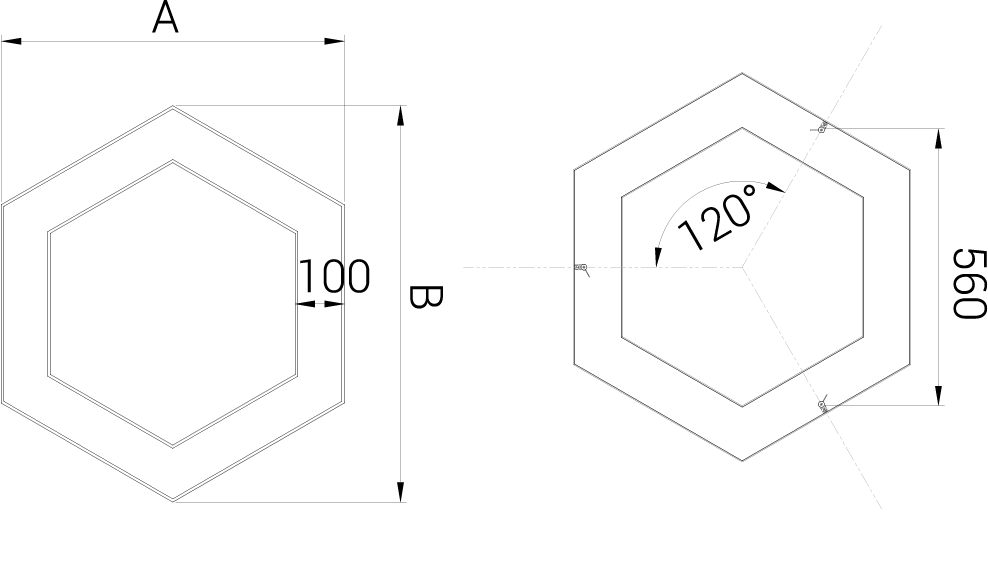

Technical Draw
Documents
