CDRB175
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Diameter (B) (mm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| CDRB175 | WW-NW-CW | 220-240V AC | 18 | 25 | 2.375 | Ø200 | 2,5 |
| CDRB175 | WW-NW-CW | 220-240V AC | 18 | 45 | 4.275 | Ø200 | 2,6 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated steel housing
• Electrostatic powder coated aluminum housing
• Polycarbonate front glass
• Suitable for surface/pendant mounting
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
XN. EXTRA NARROW ANGLE
Mounting
25. PENDANT
26. SURFACE
IP Protection Class
Housing Color Options
RAL9005
RAL9007
RAL9016

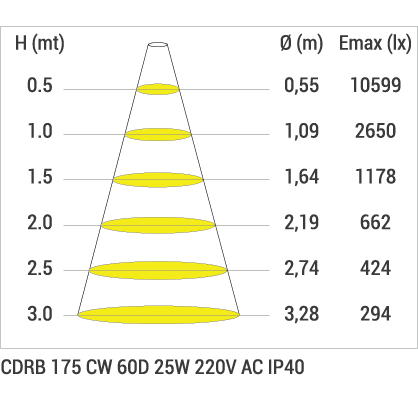

Product Diagrams
CDRB175 POLAR
Technical Draw
Documents
