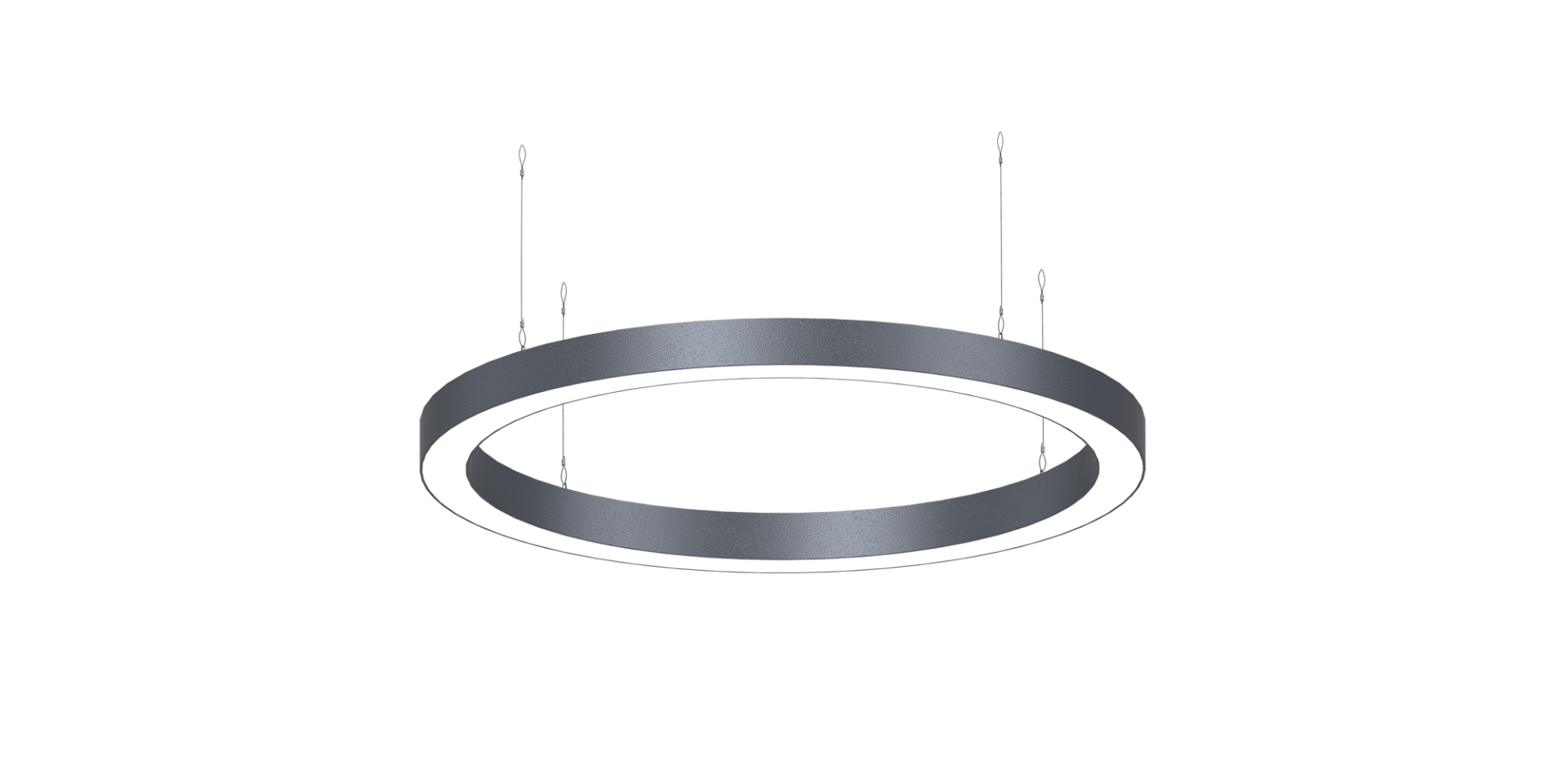

BLZS

Description

Product & Power Options

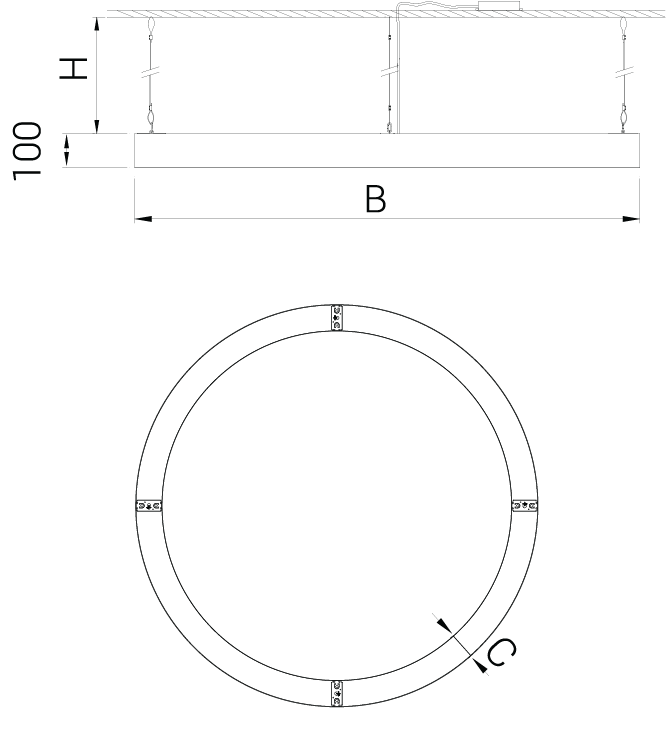

Product Name	Light Color	Input Voltage (V)	Power (W)	Luminous Flux (lm)	Dimensions (BxC)(mm)	Product Weight (kg)
BLZS90	WW-NW-CW	24V DC	60	4.500	900X100	5,7
BLZS90	WW-NW-CW	24V DC	90	6.750	900X100	5,7
BLZS120	WW-NW-CW	24V DC	85	6.375	1200X100	7,8
BLZS120	WW-NW-CW	24V DC	125	9.375	1200X100	7,8
BLZS150	WW-NW-CW	24V DC	105	7.875	1500X100	10,2
BLZS150	WW-NW-CW	24V DC	155	11.625	1500X100	10,2
BLZS180	WW-NW-CW	24V DC	190	14.250	1800X100	12,1
BLZS90	RGB	24V DC	35	-	900X100	5,7
BLZS120	RGB	24V DC	50	-	1200X100	7,8
BLZS150	RGB	24V DC	60	-	1500X100	10,2
BLZS180	RGB	24V DC	75	-	1800X100	12,1
BLZS180	WW-NW-CW	24V DC	130	9.750	1800X100	12,1

*Power and Lumen values provided are based off of a “cold white (CW) LED”.

Key Features

ELECTROMECHANICAL SPECIFICATIONS

• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexy glass diffused cover.
• Suitable for pendant mounting.
• Product length standards are; 90cm, 120cm, 150cm and 180cm.
• Different colors are applicable for the housing

• 1,5m steel wire hangers are include
• The number of the hangers in the package may vary regarding the product size
