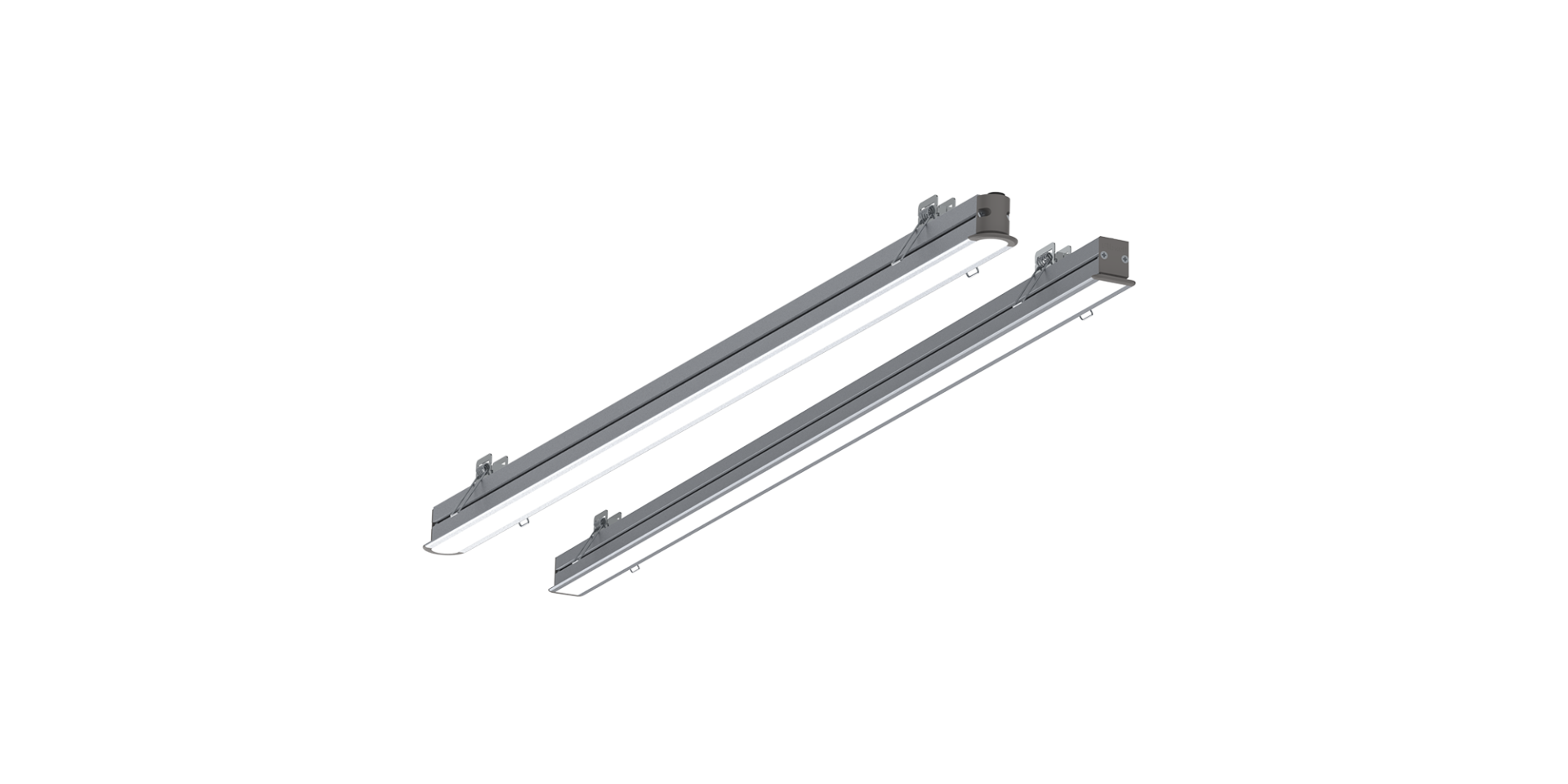

ERL25
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| ERL25 | WW-NW-CW | 24V DC | 7 | 420 | 0,95 |
| ERL25 | WW-NW-CW | 24V DC | 14 | 840 | 0,95 |
| ERL25 | WW-NW-CW | 24V DC | 24 | 1440 | 0,95 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile
• Stainless connectors
• ABS end caps with UV protection
• Diffused polycarbonate top cover with UV protection
• Cooling capacity up to 24 W/m
• Suitable for recessed mounting
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Product Options
PRODUCT LENGTH OPTIONS FOR ERL25 FLAT
| Product Code | *Min. length (L) mm | **Application length mm | Power (W) | Outer Dimension (L1) |
| ERL25 | 125 | 100 | 7 | L+14 |
| ERL25 | 225 | 200 | 12 | L+14 |
| ERL25 | 125 | 100 | 14 | L+14 |
| ERL25 | 158 | 133 | 18 | L+14 |
| ERL25 | 125 | 100 | 24 | L+14 |
| ERL25 | 225 | 200 | 7 | L+14 |
| ERL25 | 125 | 100 | 14 | L+14 |
*"L" product length with end caps
**Application length formula( L) =min. length +( Application length x Qty )
PRODUCT LENGTH OPTIONS FOR ERL25 OVAL
| Product Code | *Min. length (L) mm | **Application length mm | Power (W) | Outer Dimension (L1) |
| ERL25 | 125 | 100 | 7 | L+14 |
| ERL25 | 225 | 200 | 12 | L+14 |
| ERL25 | 125 | 100 | 14 | L+14 |
| ERL25 | 158 | 133 | 18 | L+14 |
| ERL25 | 125 | 100 | 24 | L+14 |
| ERL25 | 225 | 200 | 7 | L+14 |
| ERL25 | 125 | 100 | 14 | L+14 |
*"L" product length with end caps
**Application length formula( L) =min. length +( Application length x Qty )
Upper Cover Options
05. FLAT DEEP SURFACE
06. FLAT SURFACE
07. OVAL DEEP SURFACE
08. SURFACE WITH OVAL FINISH
Cable Direction Options
01. SINGLE ENTRY
03. DUAL END EXIT AND ENTRY

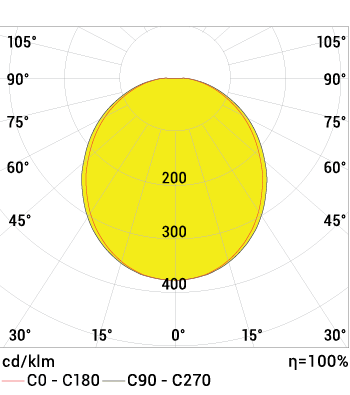

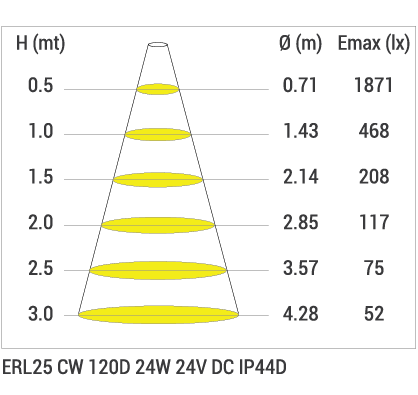

Product Diagrams

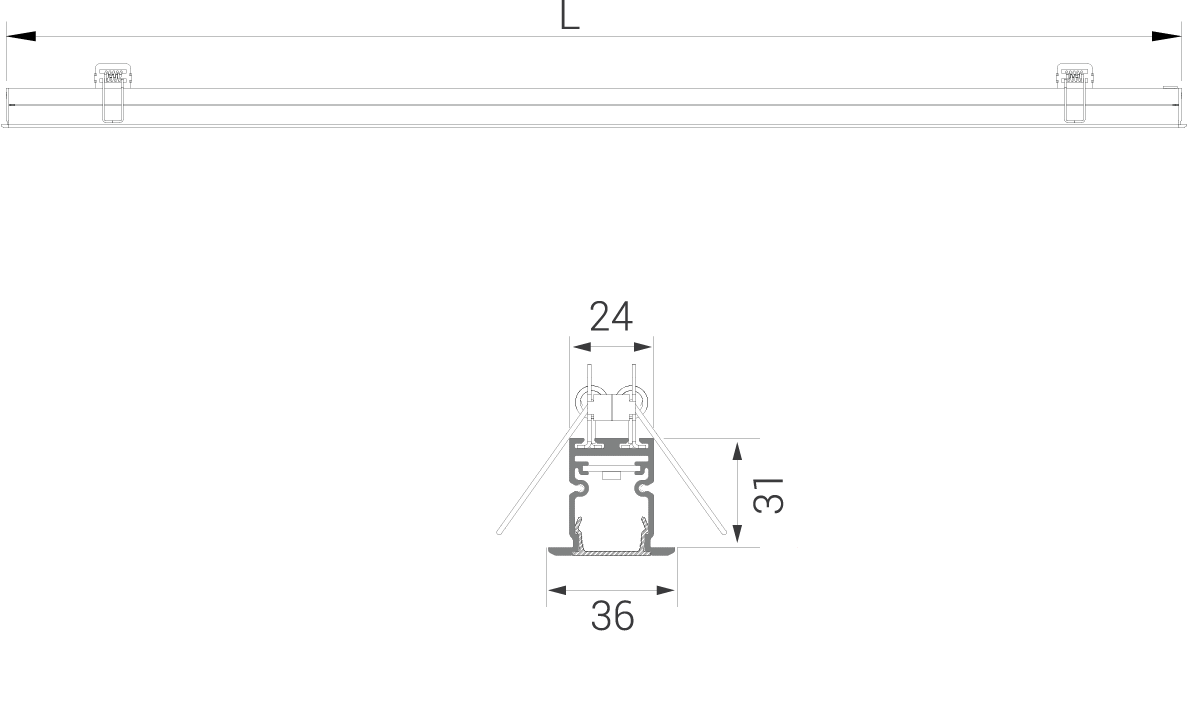

Technical Draw
Documents
