CDC1
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm/W) | Product Weight (kg) |
|---|---|---|---|---|---|
| CDC1 | WW-NW-CW | 220-240V DC | 1 | 100 | 0,1 |
| CDC1 | WW-NW-CW | 220-240V DC | 3 | 240 | 0,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Aluminum body.
• PMMA lens.
• Silicone gland
• Suitable for recessed mounting.
Light Color Options
Control System Options
| Renk Tipi | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
N. NARROW ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS

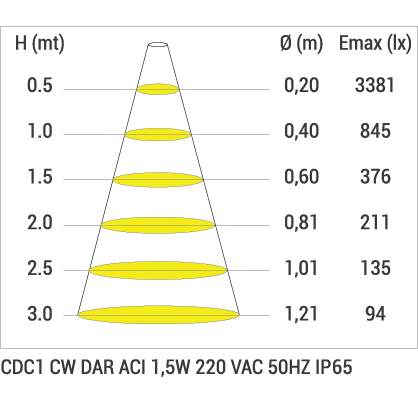

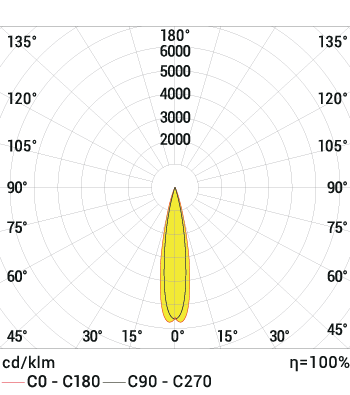

Product Diagrams

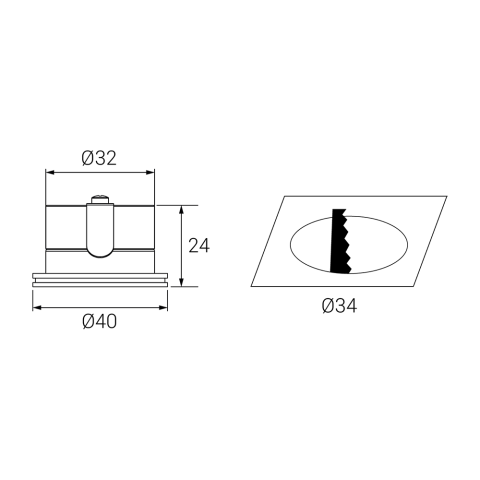

Technical Draw
Documents
