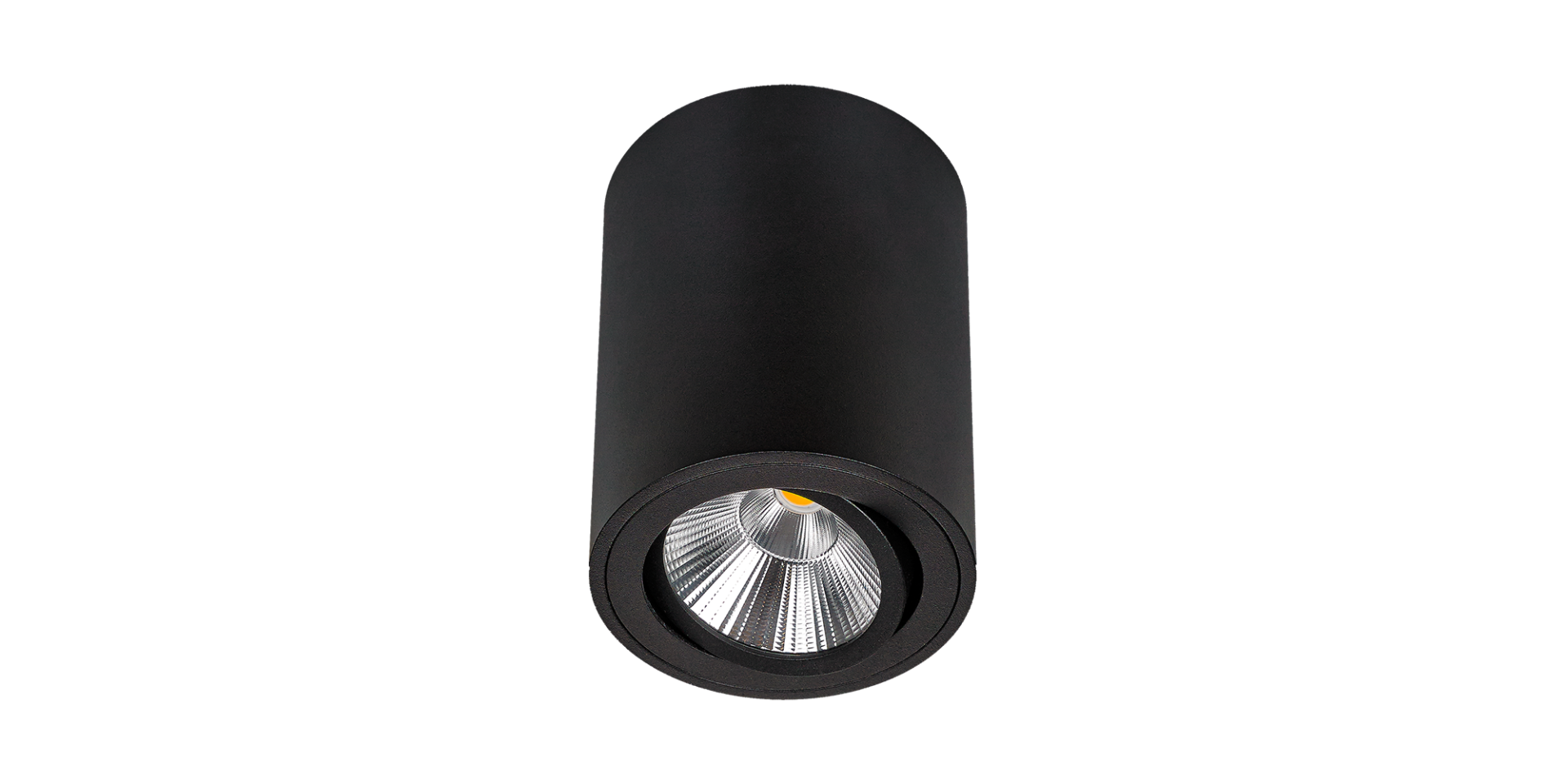

CDRB80
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
Product Weight (kg) |
Product Weight (kg) |
|---|---|---|---|---|---|---|
| CDRB80 | WW-NW-CW | 220V AC | 8 | 360 | Ø80 | 1,2 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum injection housing
• Anodized aluminum cooler
• Impact resistant front glass
• High efficiency anodized reflector
• Suitable for recessed mounting
Light Color Options
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
Housing Color Options
RAL9005
RAL9016

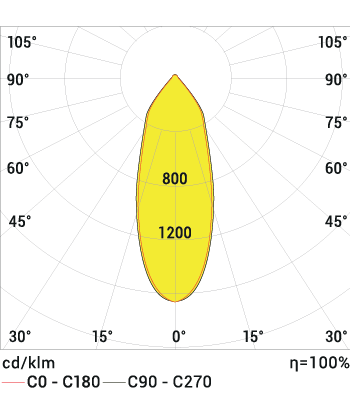

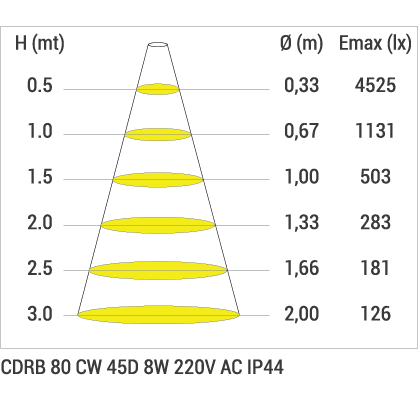

Product Diagrams

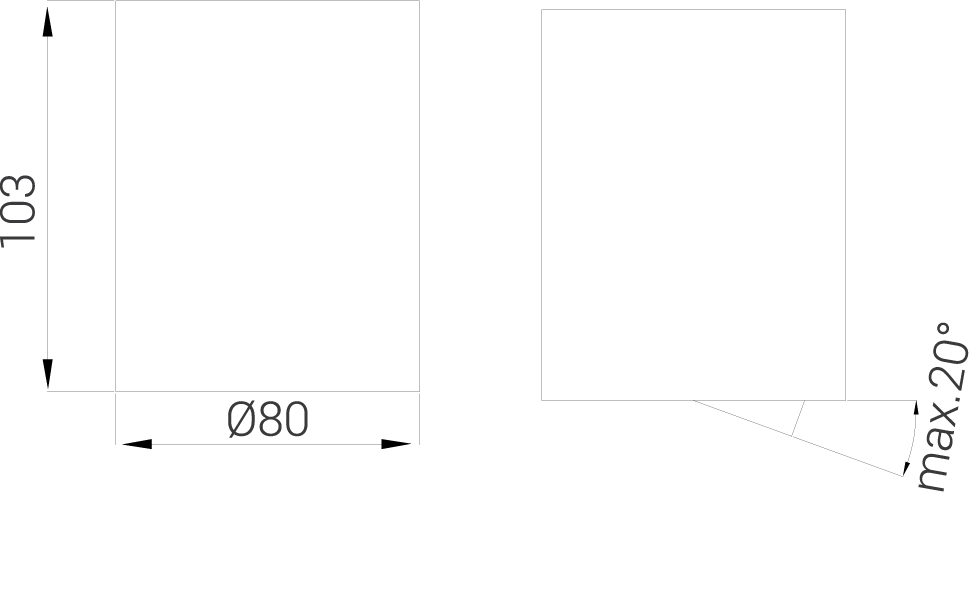

Technical Draw
