CDRB150
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Led Quantity (qty/m) | Power (W) | Luminous Flux (lm) |
Diameter (B) (mm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| CDRB150 | WW-NW-CW | 220-240V AC | 9 | 12 | 1225 | Ø108 | 1,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Electrostatic powder coated aluminum housing.
• Polycarbonate front glass
• Suitable for recessed mounting.
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Lens Options
M. MEDIUM ANGLE
N. NARROW ANGLE
XN. EXTRA NARROW ANGLE
XW. WITHOUT LENS
Mounting
25. PENDANT
26. SURFACE
Housing Color Options
RAL9005
RAL9007
RAL9016

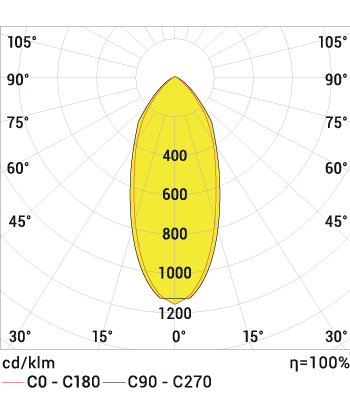

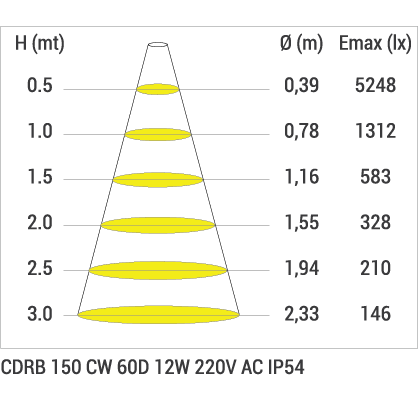

Product Diagrams

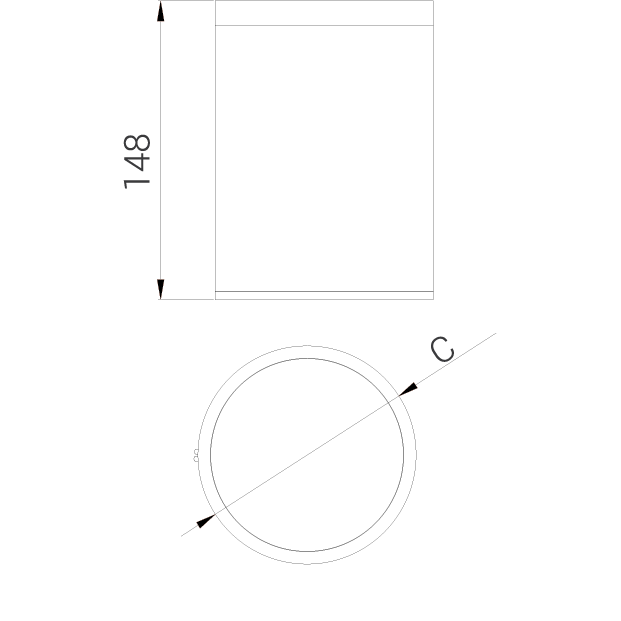

Technical Draw
Documents
