ERL50
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| ERL50 | WW-NW-CW | 24V DC | 14 | 840 | 1,6 |
| ERL50 | WW-NW-CW | 24V DC | 24 | 1.440 | 1,6 |
| ERL50 | WW-NW-CW | 24V DC | 36 | 2.160 | 1,6 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile
• Stainless connectors
• ABS end caps with UV protection
• Diffused polycarbonate top cover with UV protection
• Cooling capacity up to 36 W/m
• Suitable for recessed mounting
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Product Options
05. FLAT DEEP SURFACE
06. FLAT SURFACE
07. OVAL DEEP SURFACE
08. SURFACE WITH OVAL FINISH
PRODUCT LENGTH OPTIONS FOR ERL 50 FLAT
| Product Code | *Min. length (L) mm | **Application length mm | Power (W) | Outer Dimension (L1) |
| ERL50 | 220 | 200 | 12 | L+14 |
| ERL50 | 153 | 133 | 18 | L+14 |
| ERL50 | 120 | 100 | 24 | L+14 |
| ERL50 | 86 | 66 | 36 | L+14 |
| ERL50 | 210 | 200 | 7 | L+14 |
| ERL50 | 110 | 100 | 14 | L+14 |
*"L" product length with end caps.
**Application length formula( L) =min. length +( Application length x Qty )
PRODUCT LENGTH OPTIONS FOR ERL 50 OVAL
| Product Code | *Min. length (L) mm | **Application length mm | Power (W) | Outer Dimension (L1) |
| ERL50 | 230 | 200 | 12 | L+14 |
| ERL50 | 163 | 133 | 18 | L+14 |
| ERL50 | 130 | 100 | 24 | L+14 |
| ERL50 | 96 | 66 | 36 | L+14 |
| ERL50 | 230 | 200 | 14 | L+14 |
| ERL50 | 130 | 100 | 28 | L+14 |
*"L" product length with end caps.
**Application length formula( L) =min. length +( Application length x Qty )
Cable Direction Options
01. SINGLE ENTRY
03. DUAL END EXIT AND ENTRY

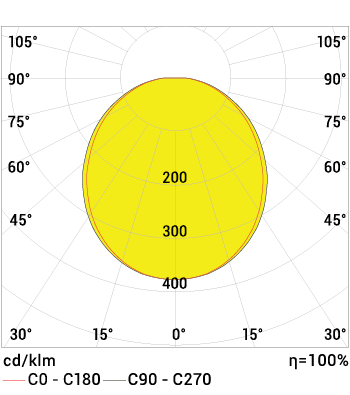

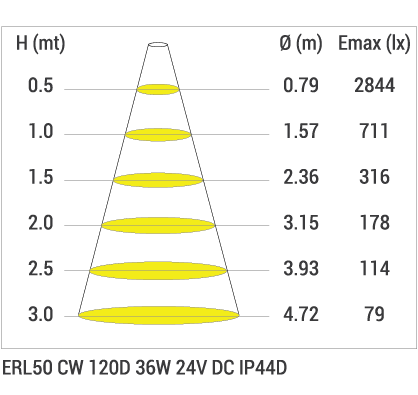

Product Diagrams

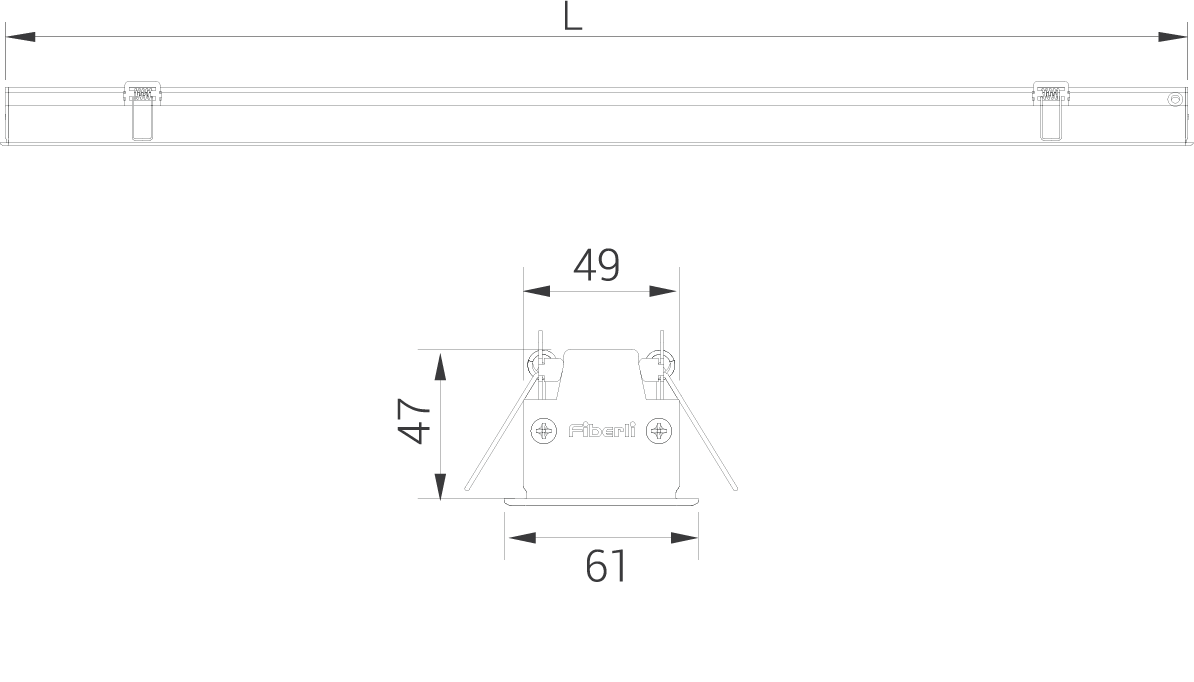

Technical Draw
Documents
