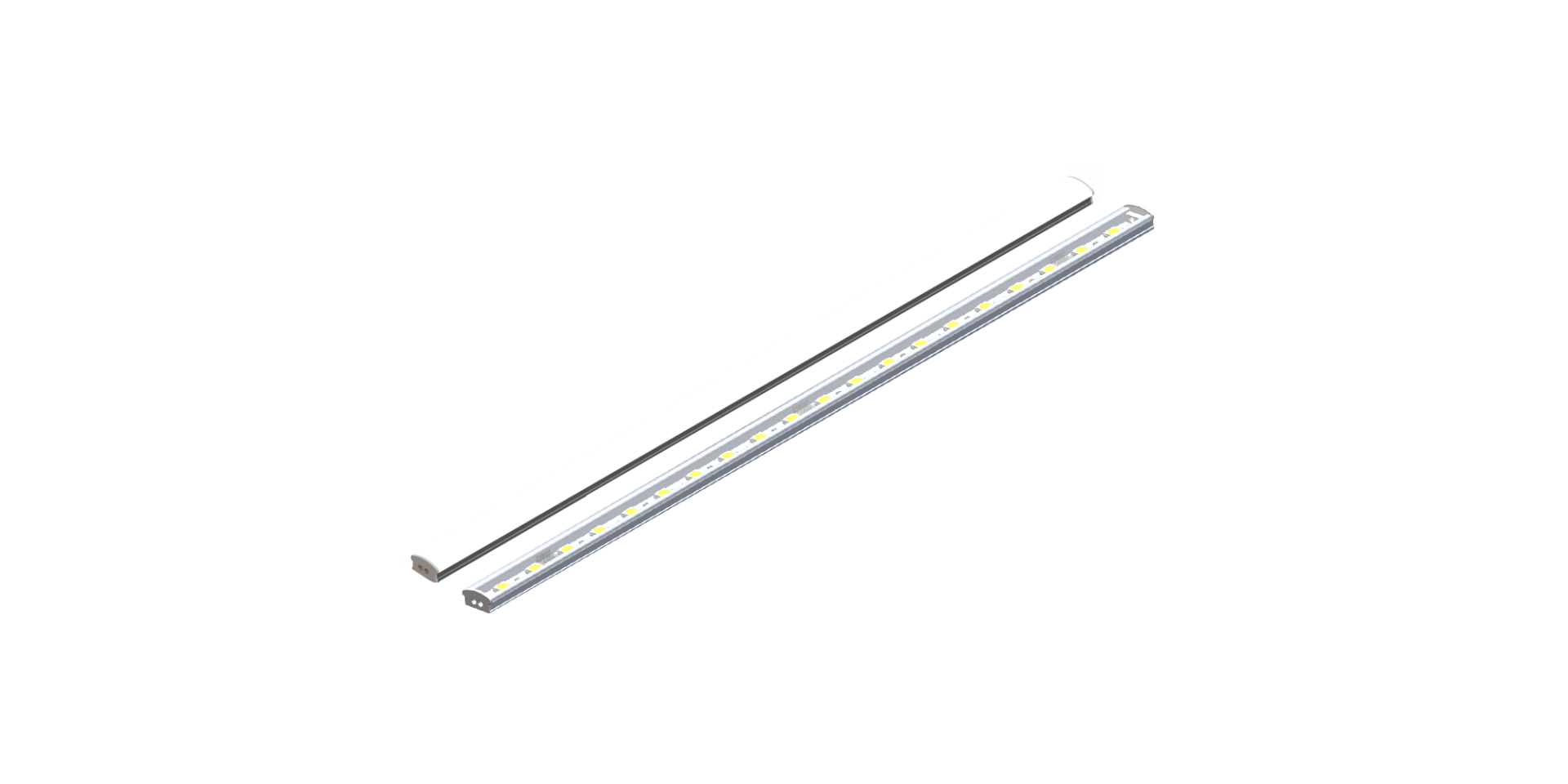

LLFS8
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Product Weight (kg) |
|---|---|---|---|---|---|
| LLFS860LED | WW-NW-CW | 24V DC | 4,8 | 597 | 0,1 |
| LLFS860LED | WW-NW-CW | 24V DC | 7,2 | 881 | 0,1 |
| LLFS860LED** | WW-NW-CW | 24V DC | 14,4 | 1.572 | 0,1 |
*Power and Lumen values provided are based off of a coverless product with cold white (CW) LED.
** Produced with Power LED.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile
• Stainless connectors
• PVC end caps with UV protection
• Transparent or diffused polycarbonate top cover with UV protection
• Cooling capacity up to 36 W/m
• Suitable for surface mounting
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Mounting
01. STEEL CLIP
02. DOUBLE SIDED TAPE
Upper Cover Options
0: COVERLESS (IP20)
01: DIFFUSED (IP40)
02: TRANSPARENT (IP40)
IP Protection Class
17
46
9
Connection Options
01. CABLESIDE OUTPUT
02. IP20 SOCKETSIDE OUTPUT

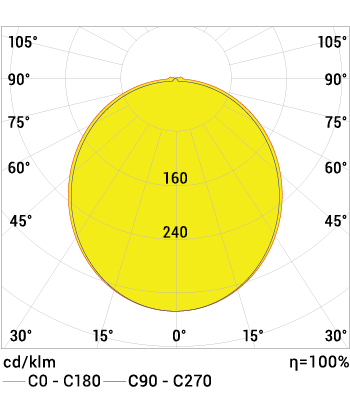

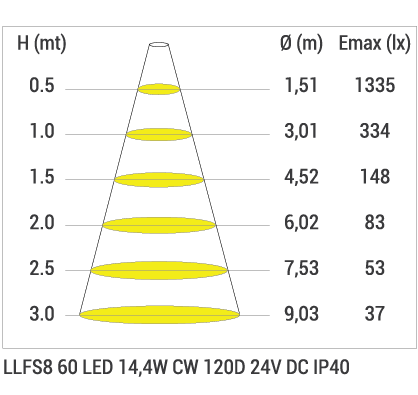

Product Diagrams

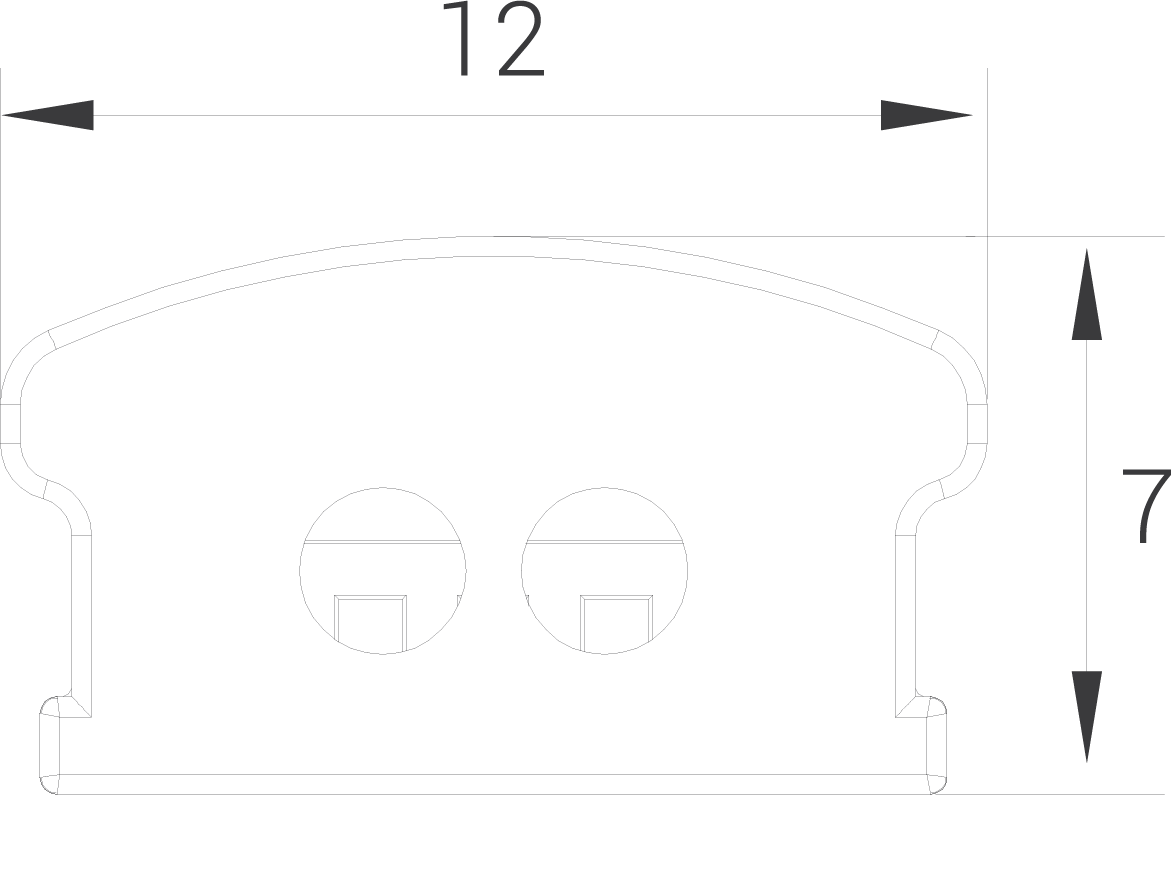

Technical Draw
