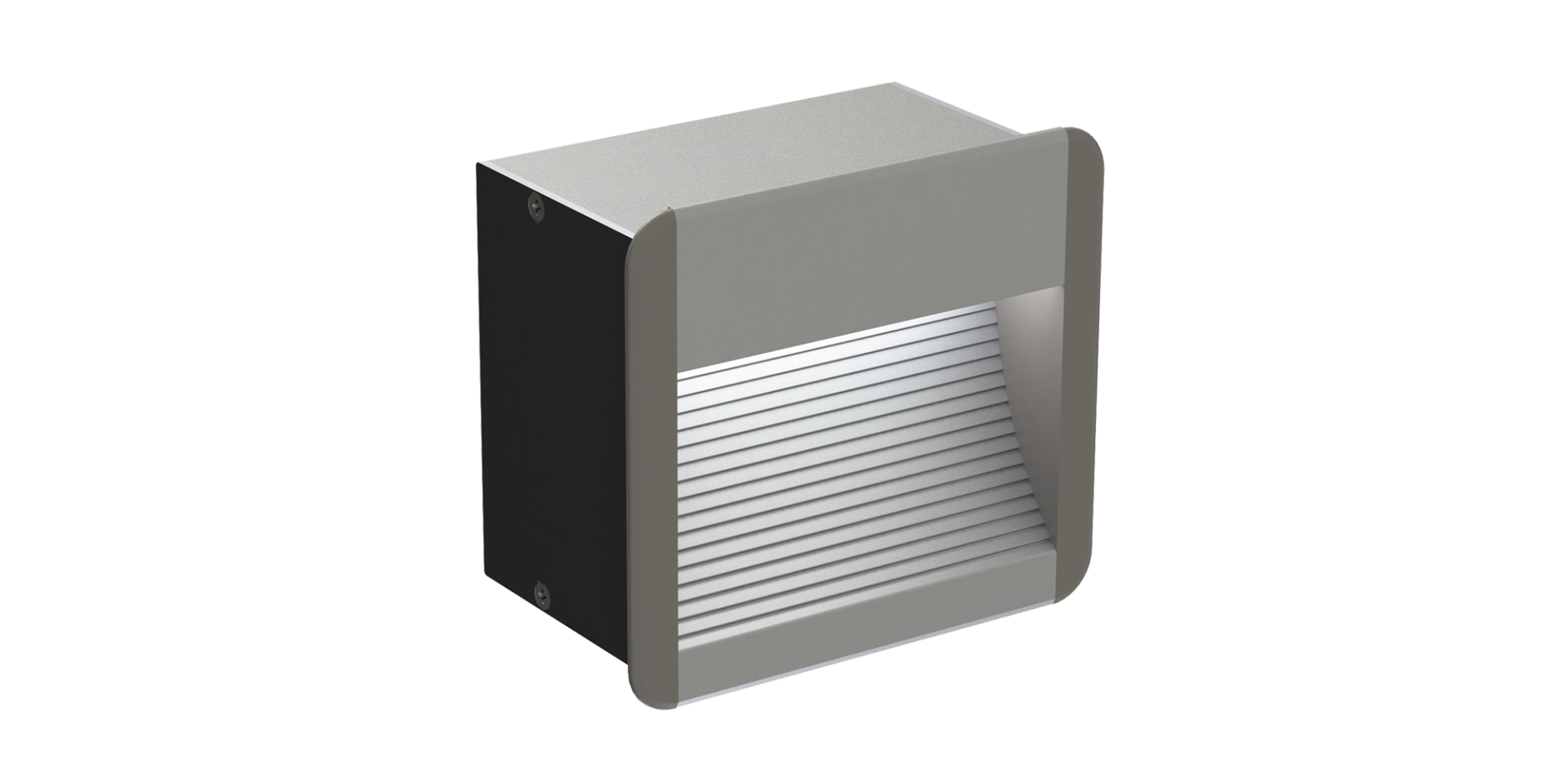

LLGEN
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Bore Diameter (C) (mm) |
Luminous Flux (lm) |
Length (L) (mm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| LLGEN105 | WW-NW-CW | 220-240V AC | 3 | 106x88 | 95 | 110 | 0,5 |
| LLGEN170 | WW-NW-CW | 220-240V AC | 7 | 171x88 | 200 | 175 | 0,9 |
| LLGEN235 | WW-NW-CW | 220-240V AC | 10 | 236x88 | 360 | 240 | 1,3 |
| LLGEN105 | WW-NW-CW | 24V DC | 3 | 106x88 | 95 | 110 | 0,4 |
| LLGEN170 | WW-NW-CW | 24V DC | 7 | 171x88 | 200 | 175 | 0,7 |
| LLGEN235 | WW-NW-CW | 24V DC | 10 | 236x88 | 360 | 240 | 1,1 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile
• PVC side cover with UV protection
• Cooling capacity up to 12 W/m
• Suitable for recessed mounting on the ceiling
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Mounting
27. FLUSH MOUNT
28. WALL MOUNT
IP Protection Class

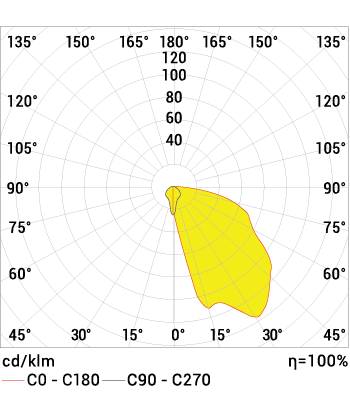

Product Diagrams

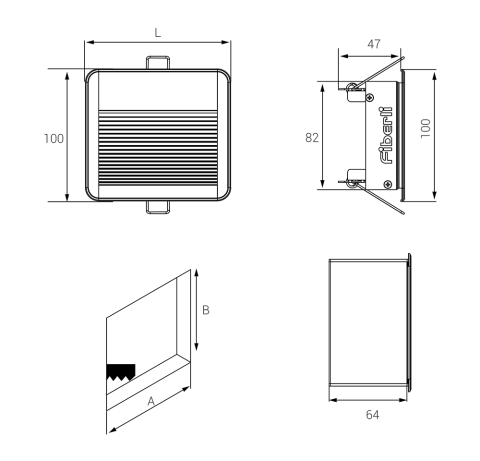

Technical Draw
Documents
