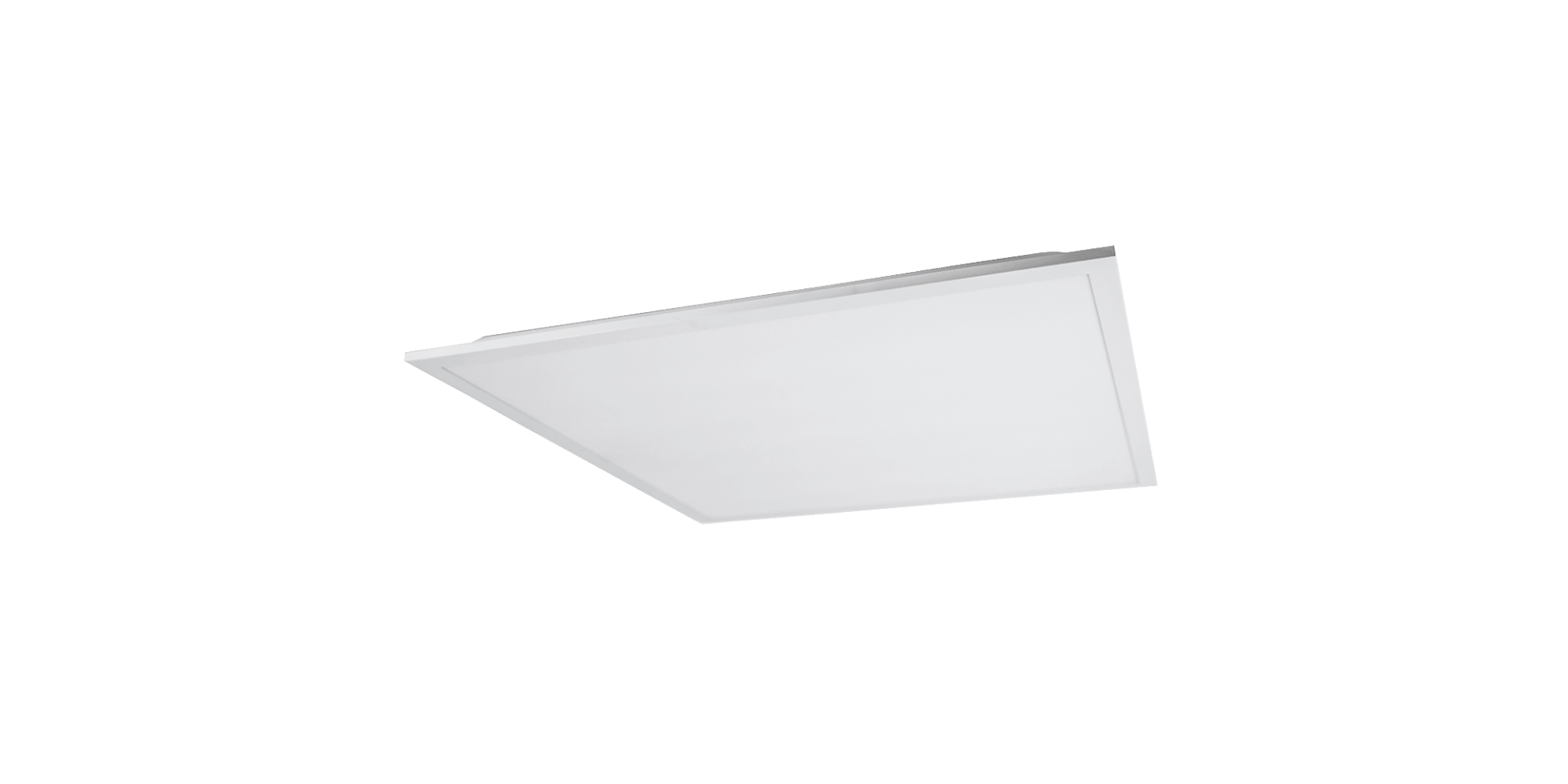

PNLO EVO
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) | Dimensions (AxB)(mm) | Cut Dimensions (C) (mm) | Product Weight (kg) |
|---|---|---|---|---|---|---|---|
| PNLO EVO | NW-CW | 220-240V AC | 36 | 3420 | 595x595 | 575x575 | 3,2 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Optimal solution for office lighting
• Electrostatic painted compact DKP body
• Electrostatic painted frames
• High efficiency low-glare (UGR 19) homogeneous
light diffuser
• Efficiency exceeding 95lm/W with backlight technology
• Suitable for recessed use
Light Color Options
Driver Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||

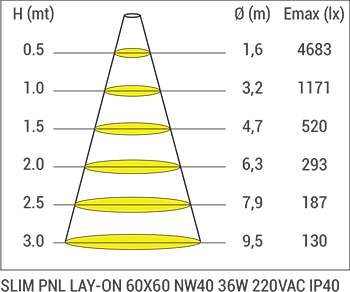

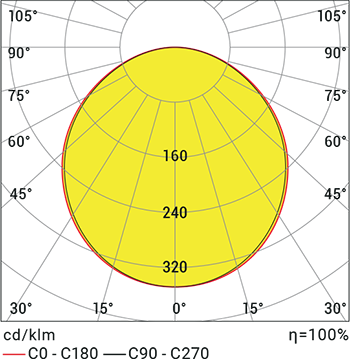

Product Diagrams

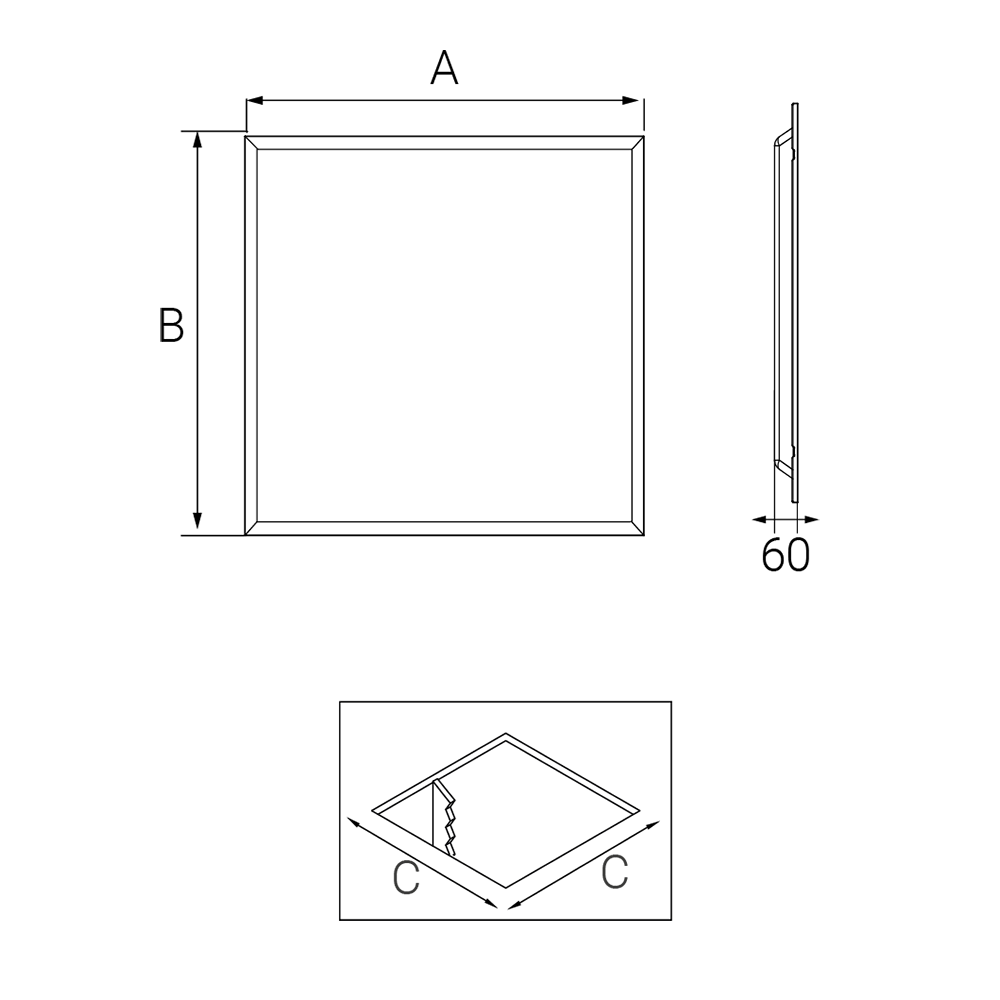

Technical Draw
