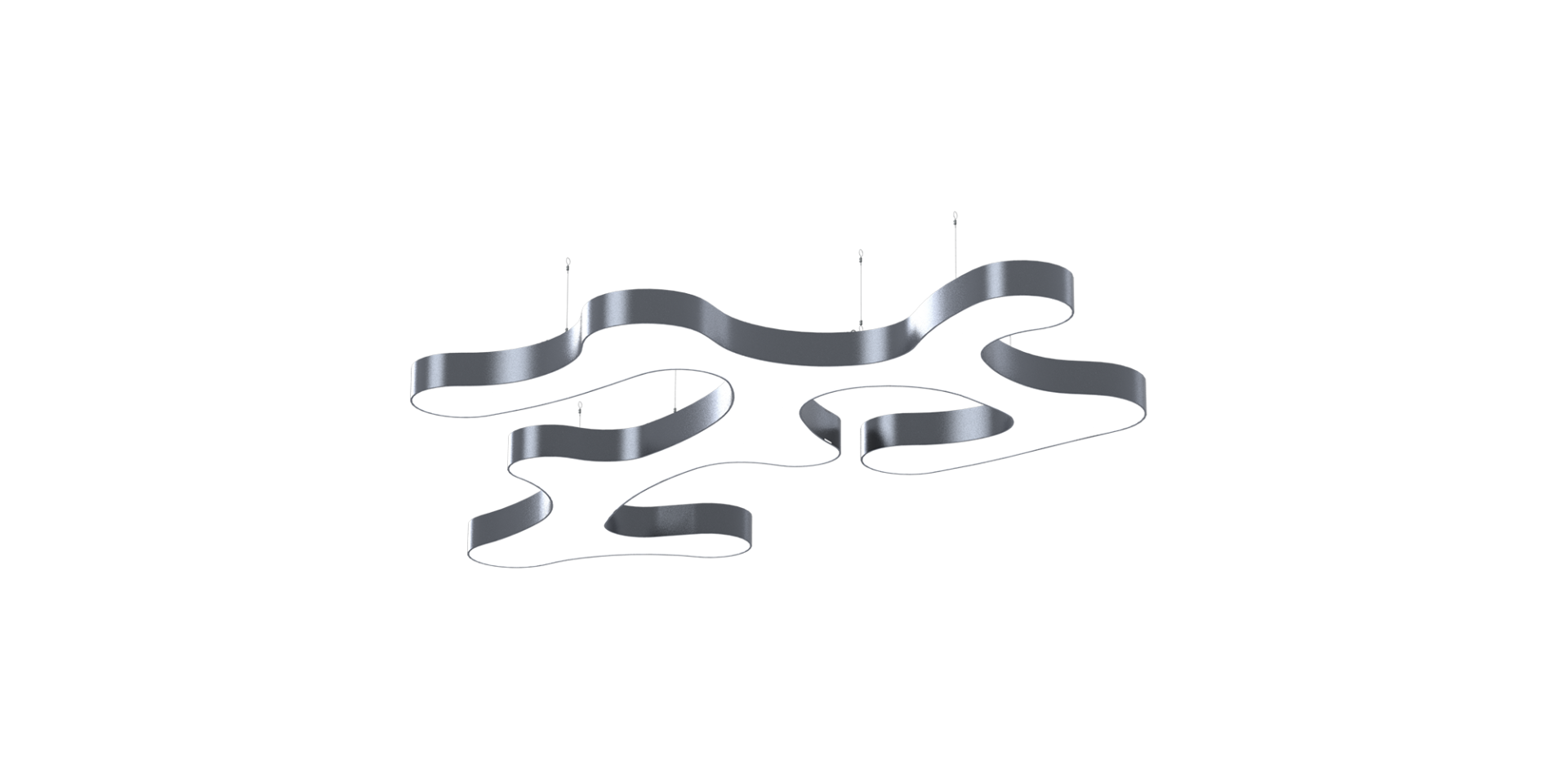

PZL
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Light Color (V) | Power (W) |
Luminous Flux (lm) |
Measurements (BxC) (cm) |
Product Weight (kg) |
|---|---|---|---|---|---|---|
| BLZ-PUZZLE | WW-NW-CW | 24V DC | 250 | 20.000 | 300x190 | 14,3 |
| BLZ-PUZZLE | WW-NW-CW | 24V DC | 500 | 40.000 | 300x190 | 14,3 |
*Power and Lumen values provided are based off of a “cold white (CW) LED”.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexy glass diffused cover.
• Suitable for pendant mounting.
• Various sizes are applicable.
• Different colors are applicable for the housing.
• 1,5 m steel wire hangers are included.
• The number of the hangers in the package may vary regarding the product size
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Housing Color Options
01. ANODIZED
29. WALNUT
30. DARK WALNUT
31. OAK
32. LIGHT WALNUT
RAL9005
RAL9016

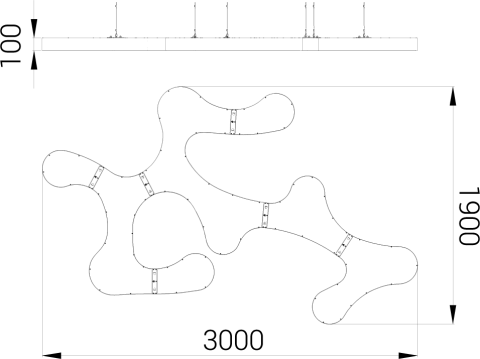

Technical Draw
