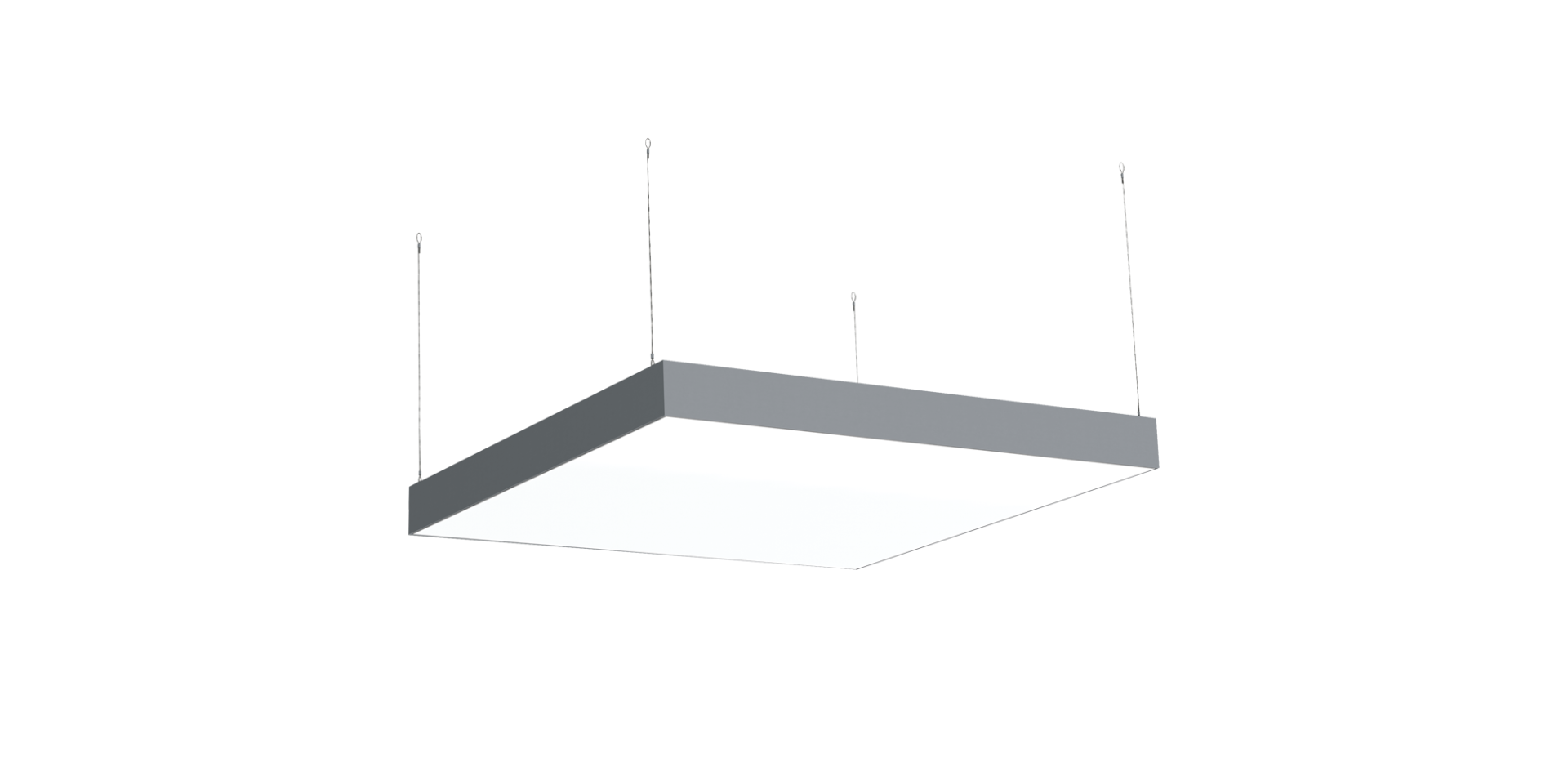

QDR²
Attention Please
Complete and submit the information requested in the form below. Our agent will get back to you as soon as possible.
Description
Product & Power Options
| Product Name | Light Color | Input Voltage (V) | Power (W) | Luminous Flux (lm) |
Product Weight (kg) |
Product Weight (kg) |
|---|---|---|---|---|---|---|
| QDR²6060 | WW-NW-CW | 24V DC | 24 | 1.800 | 600x600 | 6,3 |
| QDR²6060 | WW-NW-CW | 24V DC | 64 | 4.800 | 600x600 | 6,3 |
| QDR²60120 | WW-NW-CW | 24V DC | 128 | 9.600 | 600x1200 | 11,2 |
| QDR²60120 | WW-NW-CW | 24V DC | 202 | 15.150 | 600x1200 | 11,2 |
| QDR²120120 | WW-NW-CW | 24V DC | 300 | 22.500 | 1200x1200 | 10,8 |
*Power and Lumen values provided are based off of a cold white (CW) LED.
Key Features
ELECTROMECHANICAL SPECIFICATIONS
• Min. 20 micron anodized aluminum extruded profile.
• High efficient homogeneous light by plexiglass diffused cover.
• Suitable for pendant/surface mounting
• Different sizes are applicable
• Different colors are applicable for the housing.
• 1,5 m steel wire hangers are included.
• The number of the hangers in the package may vary regarding the product size
Light Color Options
Control System Options
| Color Type | PWM | INW PWM | DMX | DALI | 0 - 10V DC | TRIAC | |
|---|---|---|---|---|---|---|---|
| WW-NW-CW | |||||||
| R,G,B,A | |||||||
| RGB |  |
||||||
| RGBA/W |
  |
||||||
| RGB DMX |
 |
||||||
| WHITE DMX |
 |
||||||
Housing Color Options
01. ANODIZED
29. WALNUT
30. DARK WALNUT
31. OAK
32. LIGHT WALNUT
RAL9005
RAL9016
Product Diagrams

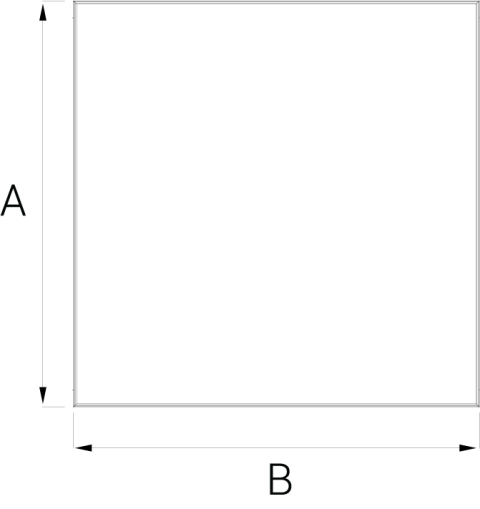

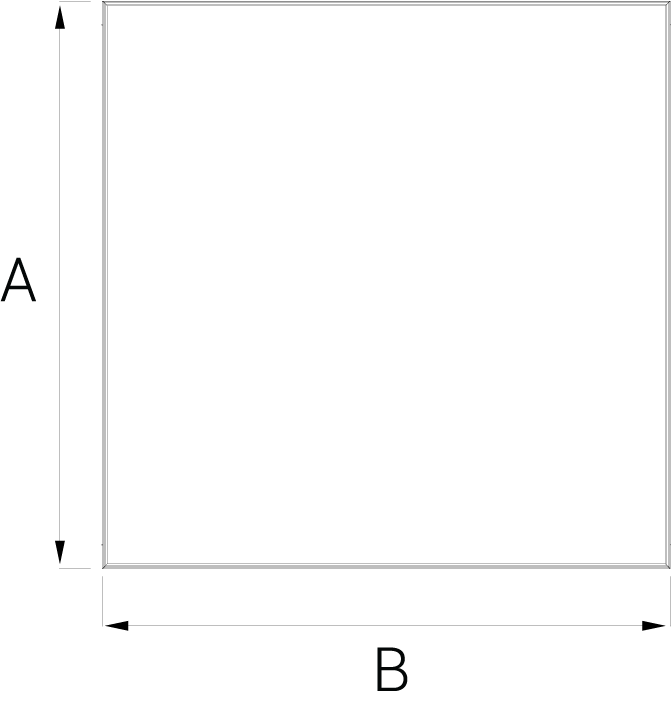

Technical Draw
